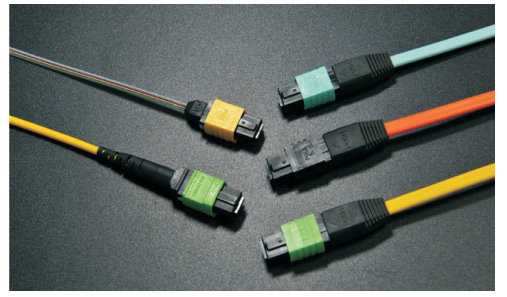

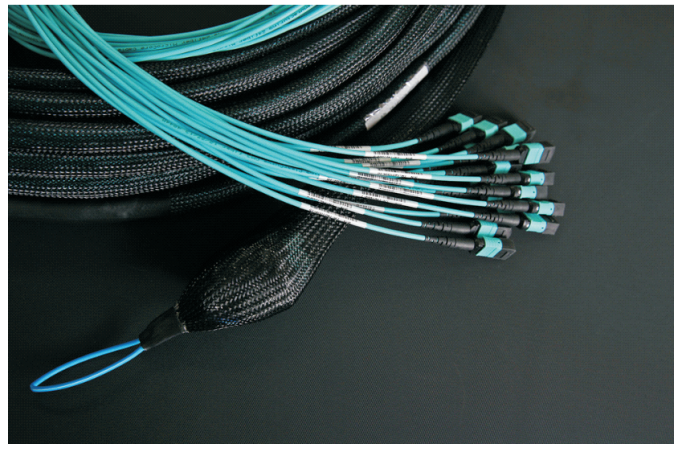

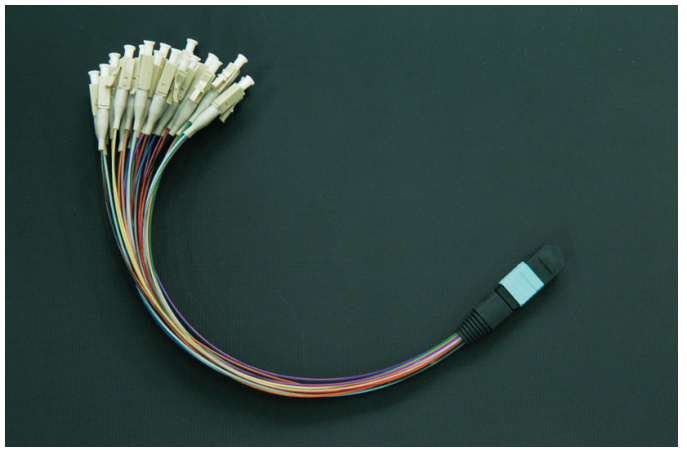

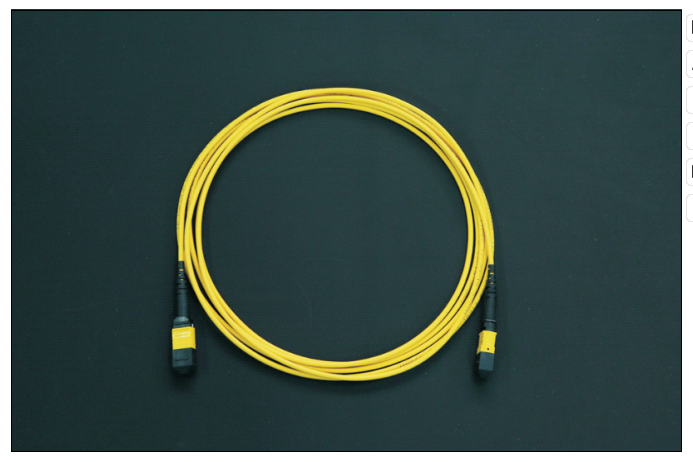

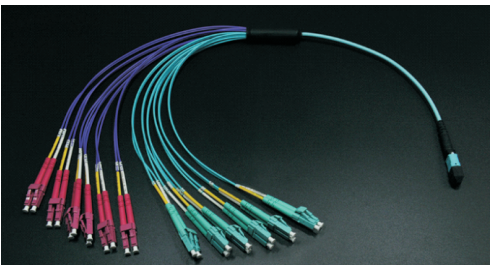

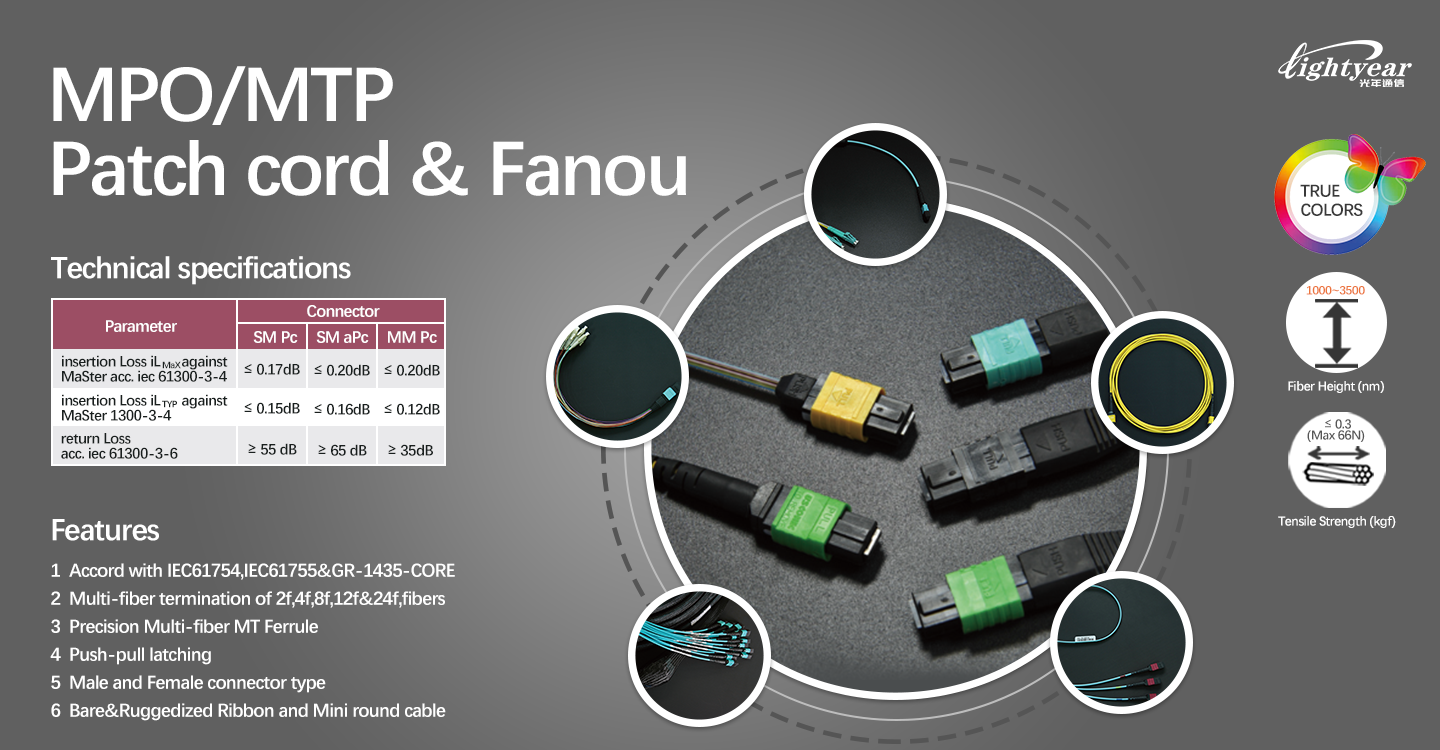

MPO/MTP Patch cord & Fanout

Features

Accord with IEC61754,IEC61755&GR-1435-CORE
Multi-fiber termination of 2f,4f,8f,12f&24f,fibers
Precision Multi-fiber MT Ferrule
Push-pull latching
Male and Female connector type

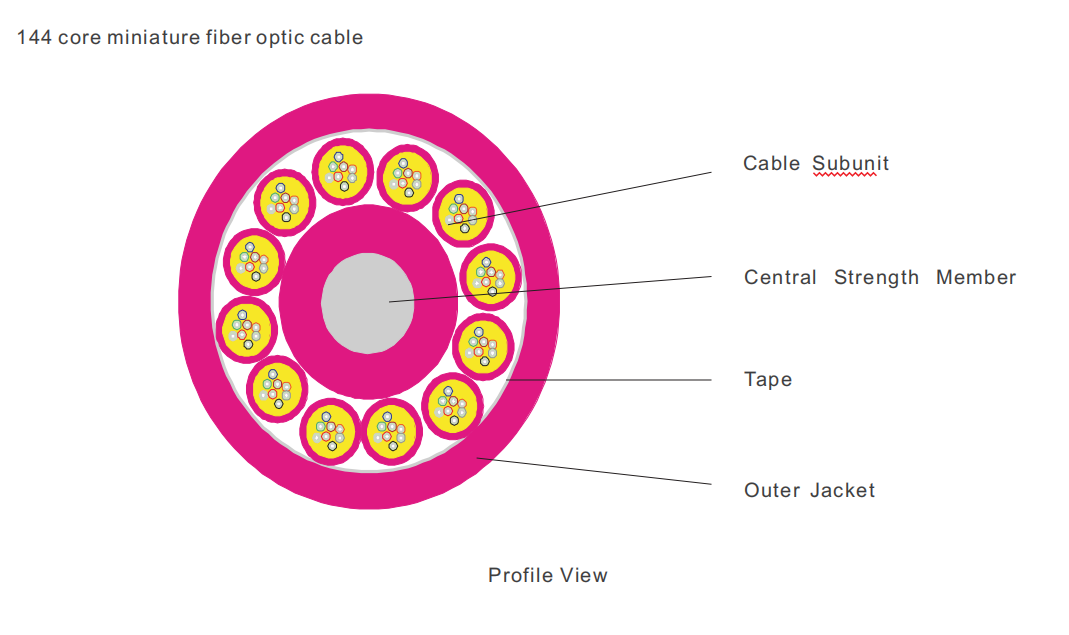

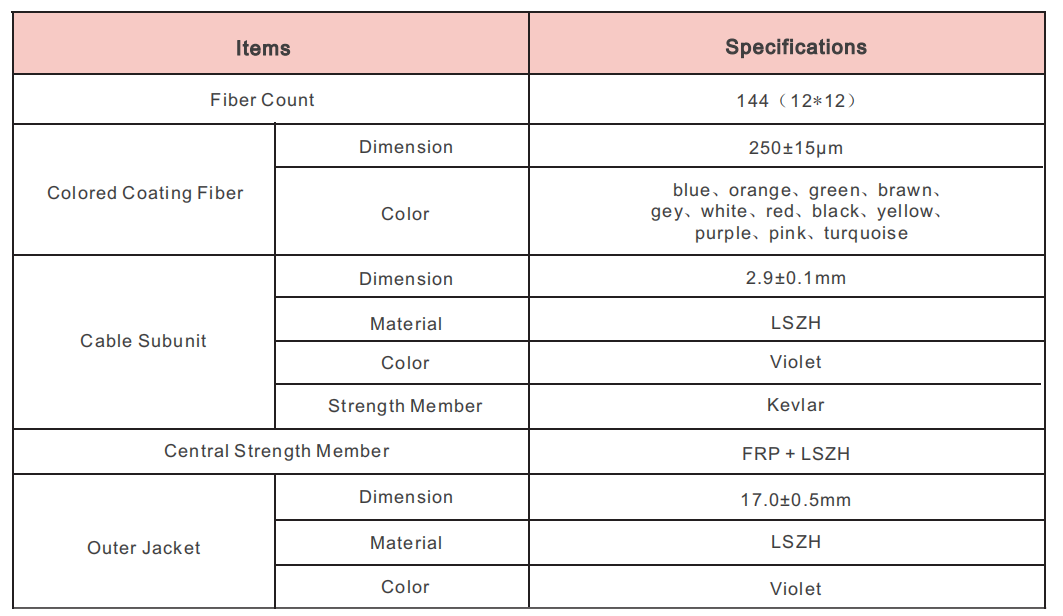

Bare&Ruggedized Ribbon and Mini round cable

关键词:

Classification:

DATA CENTER

Patchcords,Pigtails,Splitter & wdm

Keyword： MPO/MTP Patch cord & Fanout

E-mail:

jimmy.zhang@nblightyear.com

Tel:

+86-13857495516

Message

Download

Detail

1. Features

1.1 Accord with IEC61754,IEC61755&GR-1435-CORE

1.2 Multi-fiber termination of 2f,4f,8f,12f&24f,fibers

1.3 Precision Multi-fiber MT Ferrule

1.4 Push-pull latching

1.5 Male and Female connector type

1.6 Bare&Ruggedized Ribbon and Mini round cable

2.Technical Specification

Fiber Optic Performance
MPO/MTP Connector		Standard SM MT Ferrule	Low loss(Elite) SM MT Ferrule	Standard MM MT Ferrule	Low loss MM MT Ferrule
Insertion Loss	Typical(dB)	0.35	0.2	0.35	0.2
	Maximum(dB)	0.75	0.35	0.6	0.35
Return Loss(dB)		≥60 for APC(8 Angle Polish) ≥50 for PC		≥20 for PC
Male/Female		Male:with pin,Female:without pins
Tensile Strength(dB)		≤ 0.3(Max 66N)
Vibration (dB)		≤ 0.3(10-55Hz)
Thermal cycle(dB)		≤ 0.3(-40-75,21 cycels)

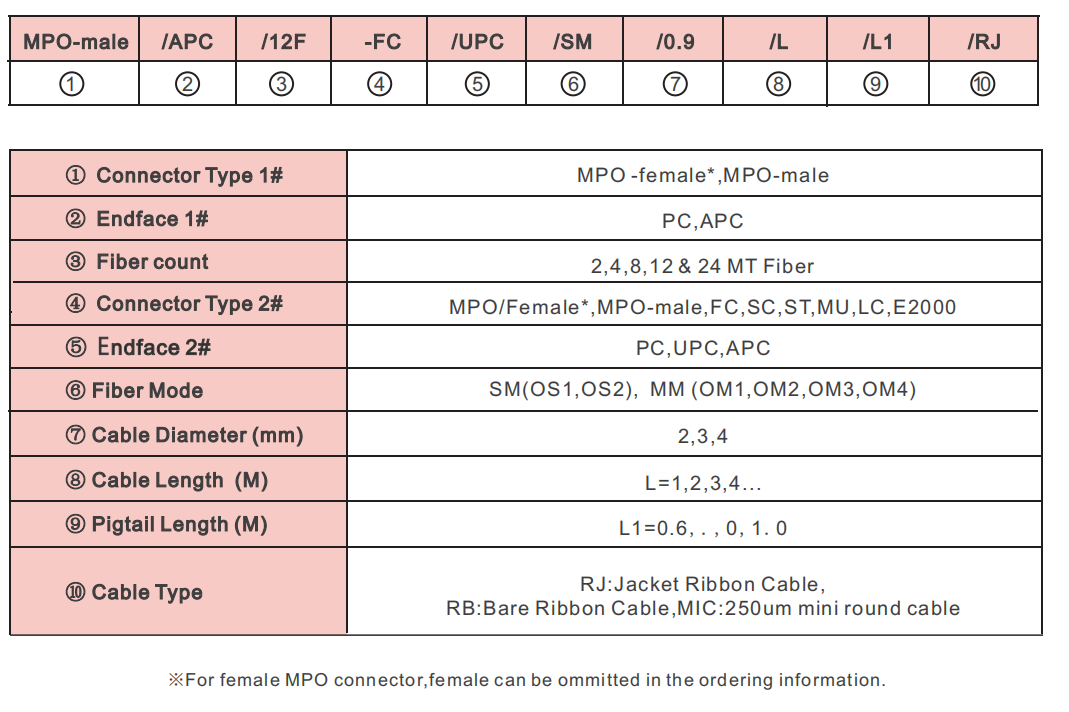

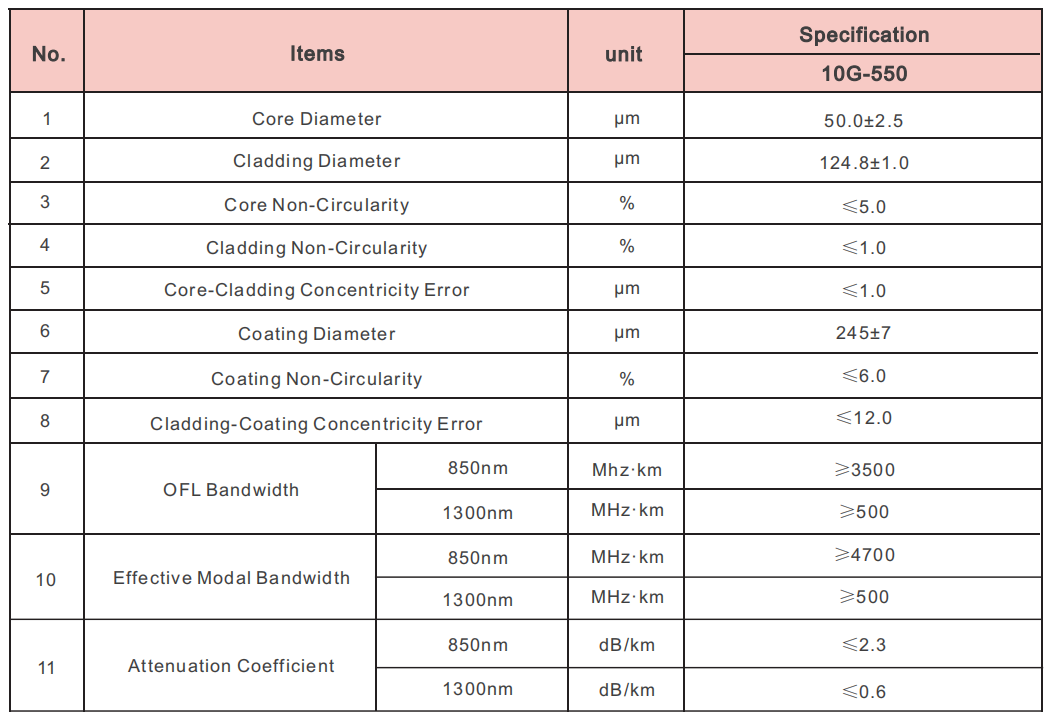

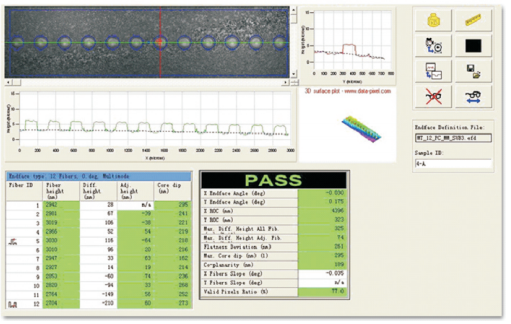

Geometric Parameter o Endface
Item	Spec
	SM	MM
RX (mm)	Min 2000
RY (mm)	Min 5
Fiber Height (nm)	1000～3500
Max.Diff.Height All (nm)	MAX:500
Max.Diff.HeightAdj.(nm)	MAX:300
X Axis Angle (。)	-0.2～0.2
Y Axis Angle (。)	PC:-0.2～0.2 APC:7.8～8.2
Core Dip (nm)	NA	-100～200
