GN-G6
Features
Higher Density,Up to 144Cores in 1U space.Suitable for MPO and MTP and fiber splice.
Smooth slide rail allows the drawer to extend steady in a straight line.
Unite drawer design,easy to cable management

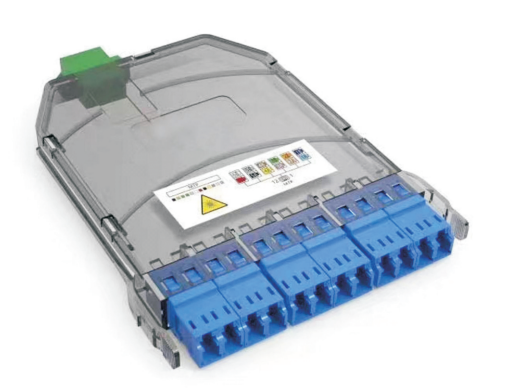

Modular cassette for easy replacement
Provides the highest levels of density andserviceability.
关键词:
Classification:
Keyword： GN-G6
E-mail:
Tel:
Detail
Description

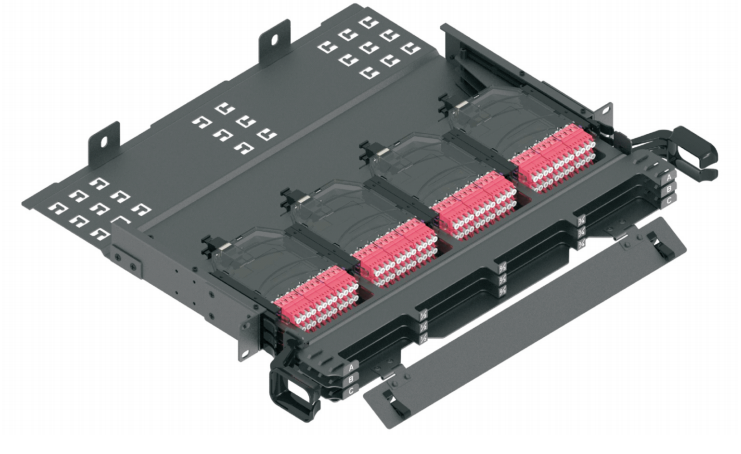

1U rack mount enclosure, It provides high density flexible system for managing fiber terminations,
connections, and patching in data-center application to maximizing rack space utilization and minimizing
floor space. FHX fiber optic enclosure houses, organizes, manages, and protects fiber optic cable,
terminations, splices, connectors and patch cords. The 1U enclosure houses 3 independently sliding
drawers, each drawer is able to hold cassettes by default. Cassettes are available in a variety of
configurations: MPO to LC, MPO to SC, MPO to MPO, splicing, splitter, and WDM.The use of cassettes and
variety of functions allow the HDC to be expanded as needed and serves a variety of purposes
Features
Higher Density,Up to 144Cores in 1U space.
Suitable for MPO and MTP and fiber splice.
Smooth slide rail allows the drawer to extend steady in a straight line.
Unite drawer design,easy to cable management
Modular cassette for easy replacement
Provides the highest levels of density andserviceability.
Applications
10G/40G/100G network
Designed for MDA, IDA or HDA data centres
High Density Fiber Interconnection
Store at | Install at | Operate at | Fitting |
-0 to +70 °C | -0 to +50 °C | -20 to +60 °C | designed for 1 unit EIA 19″ rack mount. |
Height | IP Rating | Material | Thickness |
1U | IP20 | Cold rolled steel | 1.2mm |
Capacity of Fiber | Material coating | Dimension | Compliance |
144 | Electrostatic powder coating | 483mm x 423mm x 44.5mm | RoHS, Reach/SVHC |
Designed in accordance with | |||
TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1 | |||
Description
MTP/MPO Connector | ||
Fiber Mode | Single Mode | Multimode |
Insertion Loss (dB) | ≤0.50 (Standard) ≤0.35 (Elite) | ≤0.50 (Standard) ≤0.35 (Elite) |
Return Loss (dB) | ≥60 | ≥20 |
Tensile Strength (kgf) | 10
| |
Working Temperature (℃) | -20 ~ +70 | |
LC Connector | ||
Fiber Mode | Single Mode | Multimode |
Insertion Loss (dB) | ≤0.30 | ≤0.30 |
Return Loss (dB) | ≥60 | ≥20 |
Durability (dB) | ≤0.2 (500 times mating) | |
Tensile Strength (kgf) | 10 | |
Working Temperature (℃) | -20 ~ +70 | |
Fiber Mode | X-axis | Y-axis | ||
Min | Max | Min | Max | |
Radius of Curvature (mm) | 500 | 50 | ||
Polishing Angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
Fiber Height (nm) | 1000 ~ 3000 | |||
Max Fiber Height Error (nm) | 600 | |||
Adjacent Fiber Height Error (nm) | -300 ~ +300 | |||
Avg. Fiber Height Error (nm) | -300 ~ +300 | |||
Central Concave (nm) | 300 | |||
Interferometer view of MTP Connector | ||||
Packing information
- Each product in an inner box
- Protected with PE bag and Polyethylene foamed cotton
- 5 pcs inner box in one outside carton
