GN-G7-H1
Features
Higher Density,Up to 144Cores in 1U spaceSuitable for MPO and MTP and fiber splice
12 independently modules easy to cable management
Modular cassette for easy replacement
Provides the highest levels of density and serviceability
关键词:
Classification:
Keyword： GN-G7-H1
E-mail:
Tel:
Detail

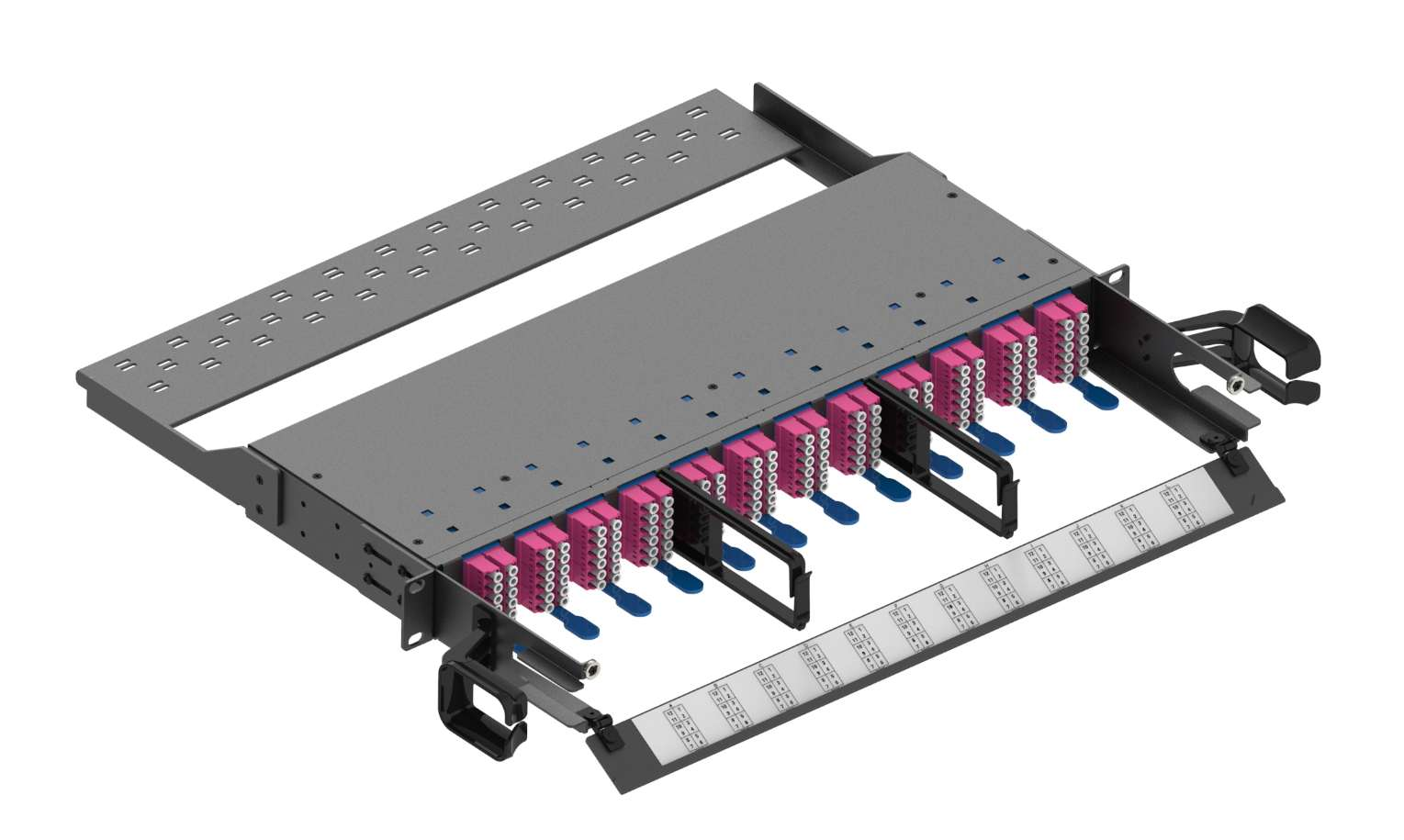

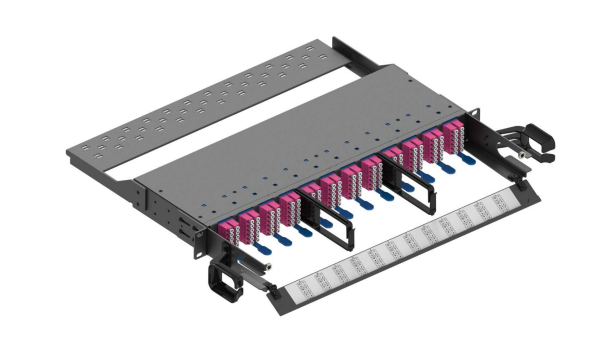

Product name :High Density Cassette (HDC) Series 1U*19 Inch 144 Cores
Part number:GN-G7-H1
Description

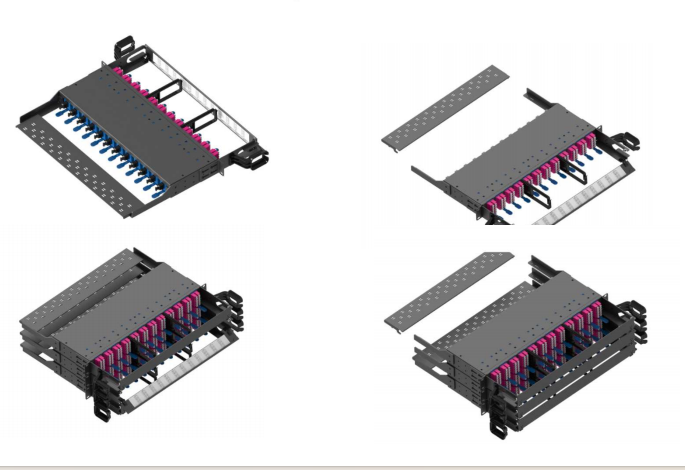

1U rack mount enclosure, It provides high density flexible system for managing fiber terminations, connections, and
patching in data-center application to maximizing rack space utilization and minimizing floor space. FHX fiber optic
enclosure houses, organizes, manages, and protects fiber optic cable, terminations, splices, connectors and patch cords.The

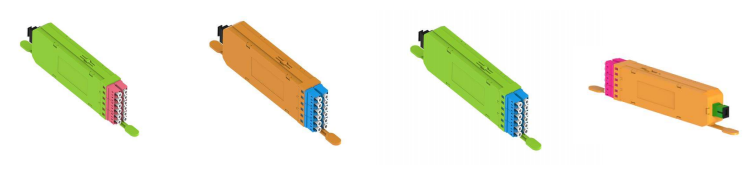

1U enclosure has 12 independently modules, it is easy to cable management. Cassettes are available in a variety of
configurations: MPO to LC, splicing, splitter.The use of cassettes and variety of functions allow the HDC to be expanded as
needed and serves a variety of purposes.
Applications
10G/40G/100G network
Designed for MDA, IDA or HDA data centers
High Density Fiber Interconnection
Features
Higher Density,Up to 144Cores in 1U space
Suitable for MPO and MTP and fiber splice
12 independently modules easy to cable management
Modular cassette for easy replacement
Provides the highest levels of density and serviceability
Storage and installation
Store at | Install at | Operate at | Fitting |
-0 to +70°C | -0 to +50 °C | -20 to +60 °C | designed for 1 unit EIA 19″ rack mount |
Specifications
Height | IP Rating | Material | Thickness |
| 1U | IP20 | Cold rolled steel | 1.2mm |
Capacity of Fiber | Material coating | Dimension | Compliance |
| 144 | Electrostatic powder coating | 445*370*43.5 | RoHS, Reach/SVHC |
Designed in accordance with | |||
TIA/EIA 568.C, ISO/IEC 11801, EN 50173, IEC 60304, IEC 61754, EN 297-1 | |||
Part number:GN-G7-H1-J1

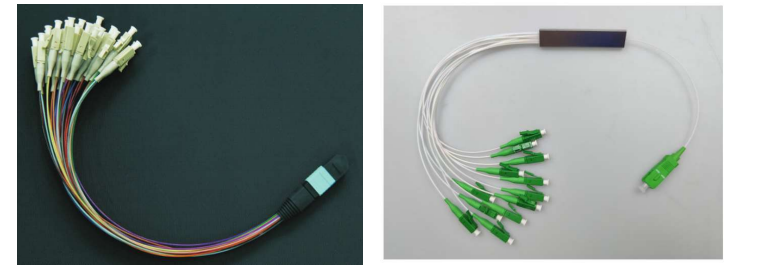

Suitable to assemble for MPO/MTP and PLC SPLITTER
Connector Specifications
MTP/MPO Connector | ||
Fiber Mode | Single Mode | Multi Mode |
Insertion Loss (dB) | ≤0.50 (Standard) ≤0.35 (Elite) | ≤0.50 (Standard) ≤0.35 (Elite) |
Return Loss (dB) | ≥60 | ≥20 |
Durability (dB) | ≤0.2 (500 times mating) | |
Tensile Strength (kgf) | 10 | |
Working Temperature (℃) | -20 ~ +70 | |
Technical Data Sheet
| LC Connector | ||
| Fiber Mode | Single Mode | Multi Mode |
| Insertion Loss (dB) | ≤0.30 | ≤0.30 |
| Return Loss (dB) | ≥60 | ≥20 |
| Durability (dB) | ≤0.2 (500 times mating) | |
| Tensile Strength (kgf) | 10 | |
| Working Temperature (℃) | -20 ~ +70 | |

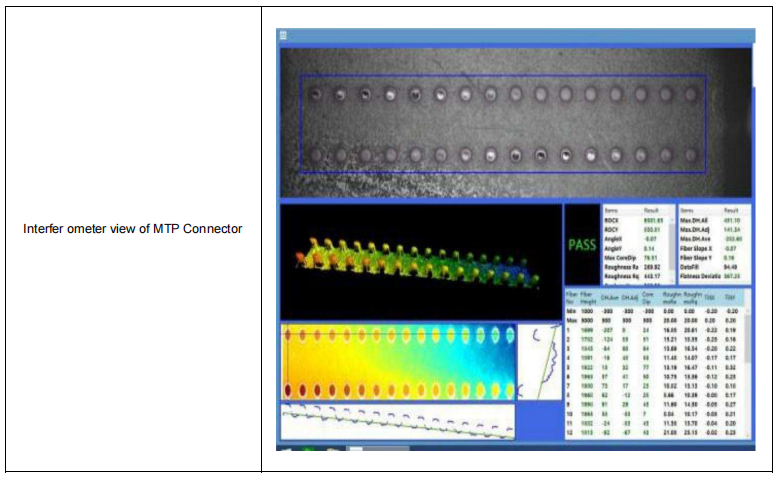

MTP/MPO Connector Geometry Parameters
Fiber Mode | X-axis | Y-axis | ||
Min | Max | Min | Max | |
Radius of Curvature (mm) | 50 | 50 | ||
Polishing Angle | 0-0.2 | 0+0.2 | 8-0.2 | 8+0.2 |
Fiber Height (nm) | 1000 ~ 3000 | |||
Max Fiber Height Error (nm) | 600 | |||
Adjacent Fiber Height Error (nm) | -300 ~ +300 | |||
Avg. Fiber Height Error (nm) | -300 ~ +300 | |||
Central Concave (nm) | 300 | |||
Technical Data Sheet
