FC Connector

关键词:

Classification:

Keyword： FC Connector

E-mail:

Tel:

Detail

1. Overview

Lightyear optical components are specifically designed and based on connectors , which comply with

IEC/ PN-EN 61754 and IEC/PN - EN 61755 requirements. Patchcords & Pigtails of Gold Grade are available

in singlemode and multimode option with various type of connectors , cables and optical fibers. Fully

automated preparation and polishing process ensure the highest quality and relibility. Therefore, detailed

selection of the manufacturing components ensures the highest quality of the product.Patchcords & Pigtails

of Gold Grade are available with 3 different designs of boots, which protect the bend radius of the optical

fibers. Apart from standard boots, there are mini and flexi-angle available. The boot in the mini option limits

the total length of a connector and boot, whereas the flexi-angle boot is designed to bend in a 0-90° angle

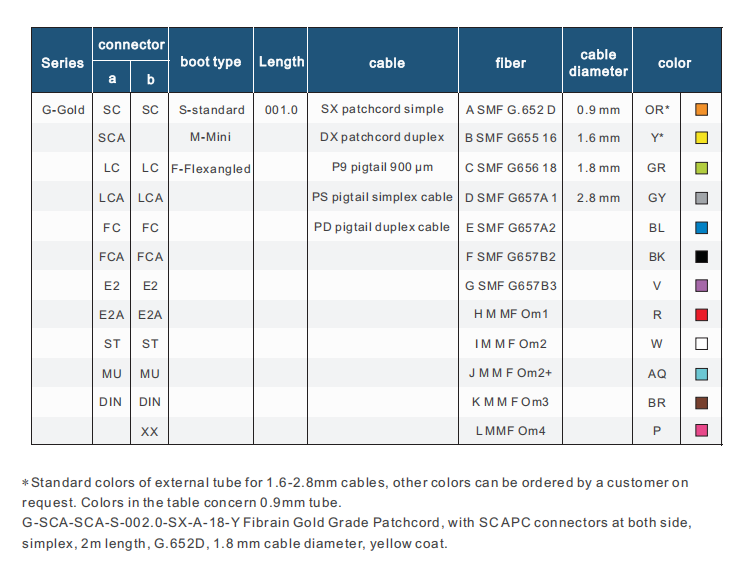

range. Available options of the boots are given in the table below. There is no possibility to mix various types

of boots on a patchcord- as from the both sides a patchcord is terminated with the same type of boots

2. Features

2.1 Comply with IEC, TIA/EIA requirements

www.nblightyear.com

2.2 High quality and repeatability of the transmission parameters,

2.3 Connectors are constructed from high quality plastic, resistant to corrosion and high temperatures with

UL94-V0 flammability index or the highquality metal resistant to corrosion

2.4 Good value for money

2.5 Wide range of available connectors and optical fibers

3. Application

3.1 Telecommunication networks,

3.2 Local area network (LAN),

3.3 FTTx, FTTD,FTTB, FTTH networks,

3.4 CATV solutions,

3.5 CWDM networks.

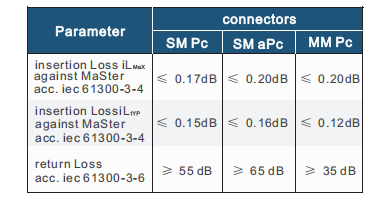

4.Technical specifications

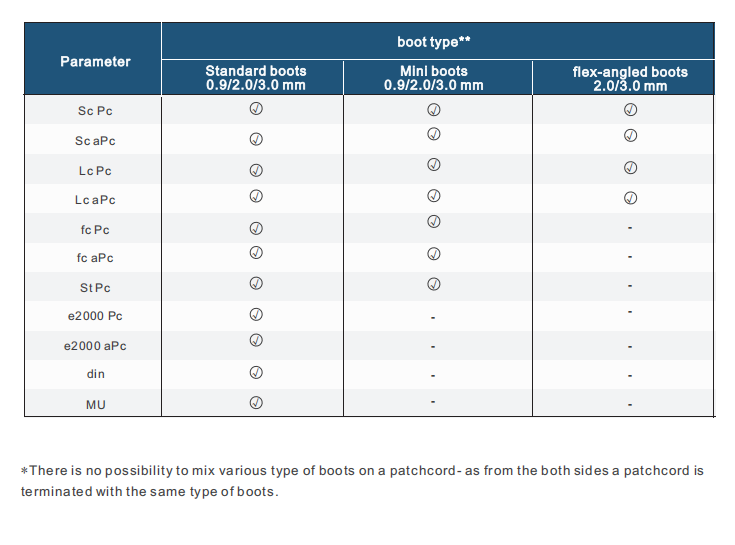

5. Available Boots
