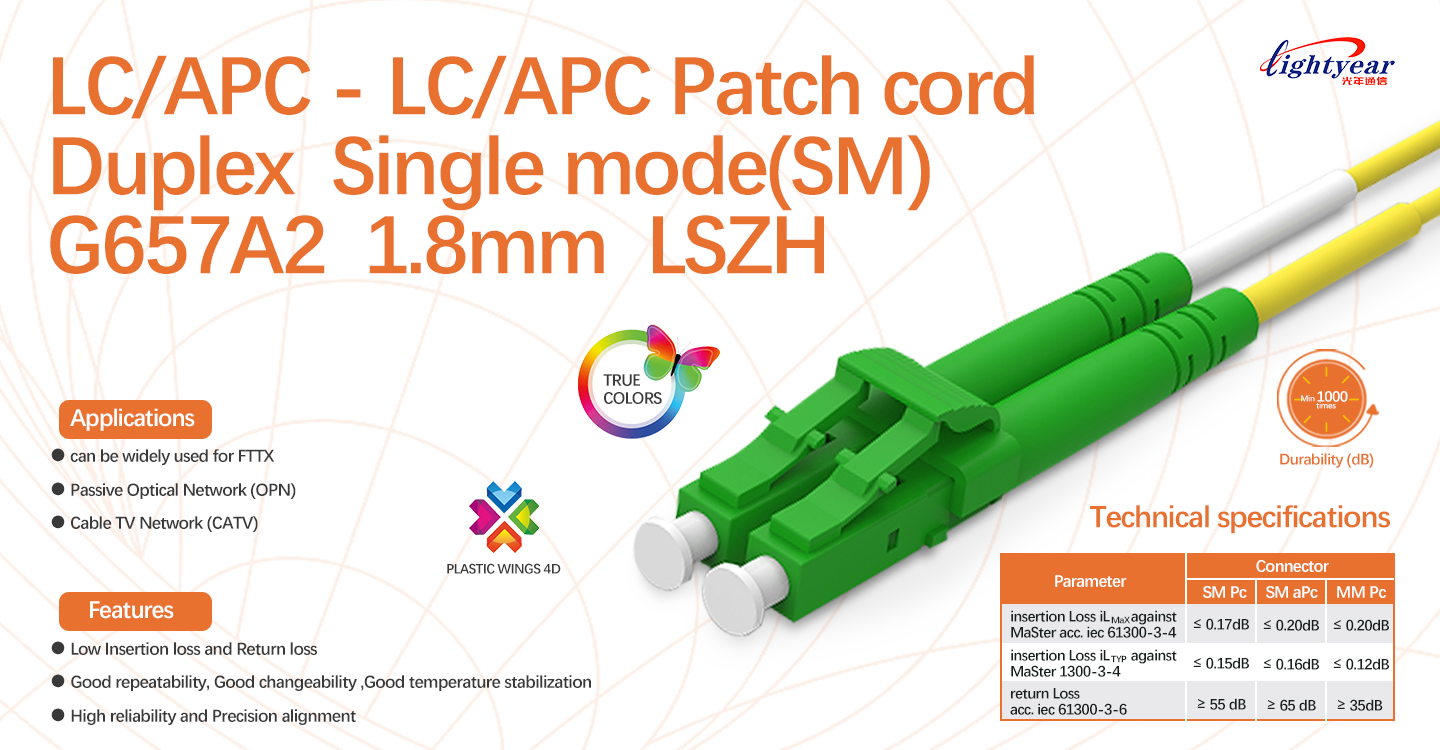

LC Connector
关键词:
Classification:
Keyword： LC Connector
E-mail:
Tel:
Detail
1. Overview
Lightyear series of pathcords and pigtails is intended for the most demanding customers. High optical
parameters, premium quality and precise selection of the components are the characteristic features of the
Titanium Grade. Lightyear optical components are speifically designed and based on connectors, which
comply with IEC/ PN-EN 61754 and IEC/PN - EN 61755 requirements. Pathcords and pigtails of Titanium
Grade are available in singlemode option with various type of connectors, cablesand optical fibers. Fully
automated preparation and polishing process ensure the highest quality and relibility. Therefore, detailed
selection of the manufacturing components ensures the highest quality of the final component.
Patchoords and pigtails of Titanium Grade are available 3 diferent designs of boots,which protect a bend
radius of the optical fibers. Apart from standard boots there are mini and flexi-angles available. The boot in
the mini option limits the total length of a connector and boot, whereas the flexi-angle boot is designed to

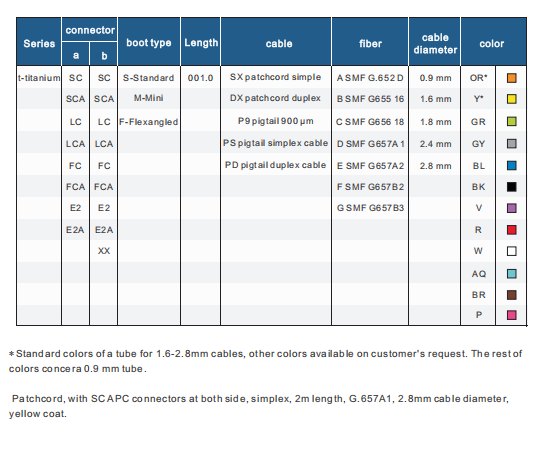

bend in a 0-90° angle range. Available options of the boots are given in the table below. There is no possibility
to mix various type of boots on a patchord- as from the both sides a patchoord is terminated with the same
type of boots.
2. Features
2.1 Comply with IEC, TIA/EIA requirements
www.nblightyear.com
2.2 High quality and repeatability of the transmission parameters
2.3 Connectors are constructed from high quality plastic, resistant to corrosion and high temperatures with
flammability index UL94-V0 or the high quality metal resistant to corrosion
2.4 Good value for money
2.5 High quality ceramic ferrules
3. Application
3.1 Telecommunication networks
3.2 Local area network (L AN)
3.3 FTTx, FTTD,FTTB, FTTH networks
3.4 CATV solutions
3.5 CWDM networks
2.6 Low attenuation and high reflectance
2.7 Wide range of available connectors and optical fibers
3.6 Low voltage networks
3.7 Measuring devices
4.Technical specifications
