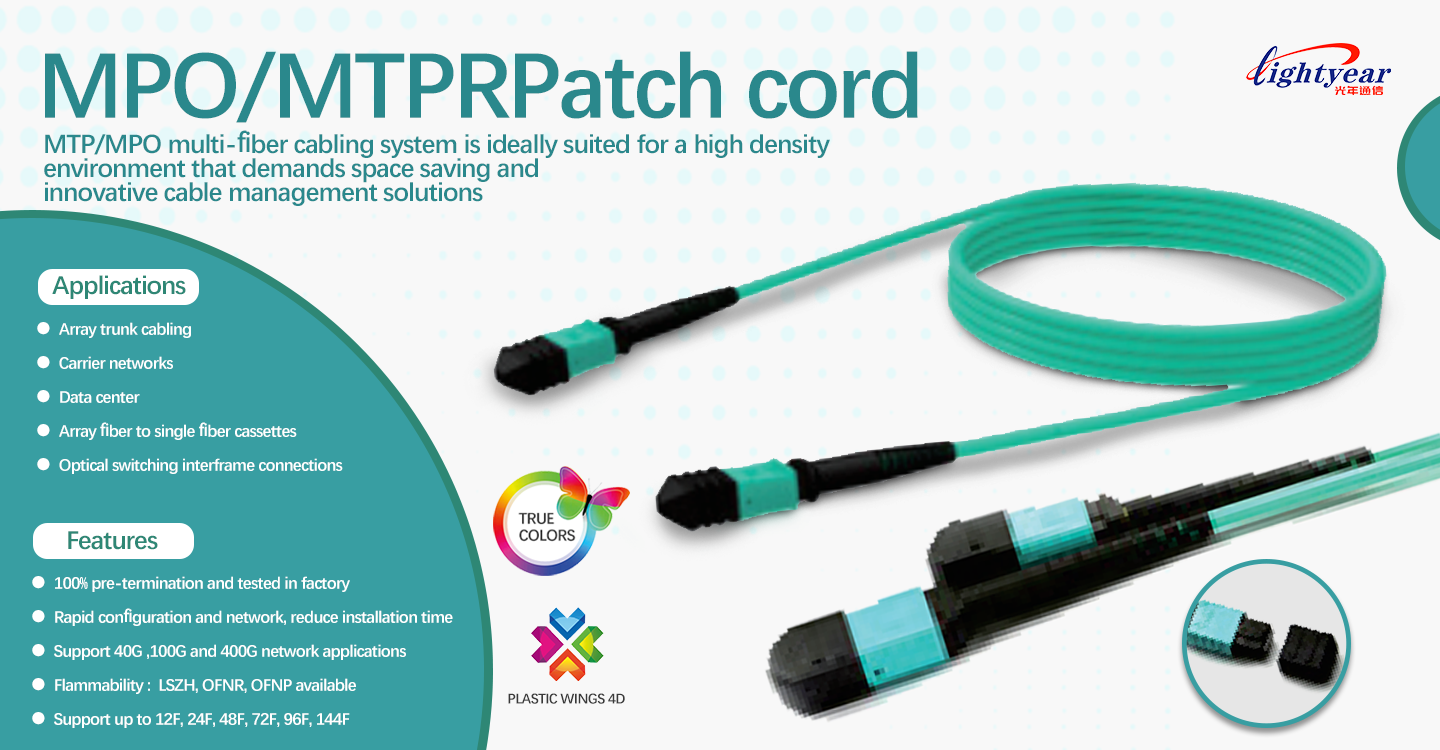

MPO/MTPRPatch cord
关键词:
Classification:
Keyword： MPO/MTPRPatch cord
E-mail:
Tel:
Detail
1. Overview
MTP/MPO multi-fiber cabling system is ideally suited for a high density environment that demands space
saving and innovative cable management solutions. MTP/MPO fan-out supports various connections from
multi-fiber to singlefiber out.
2. Features
2.1 100% pre-termination and tested in factory
2.2 Rapid configuration and network, reduce installation time
2.3 Support 40G ,100G and 400G network applications
2.4 Flammability: LSZH, OFNR, OFNP available
2.5 Support up to 12F, 24F, 48F, 72F, 96F, 144F
3. Application
3.1 Array trunk cabling
3.2 Carrier networks
3.3 Data center
3.4 Array fiber to single fiber cassettes
3.5 Optical switching interframe connections

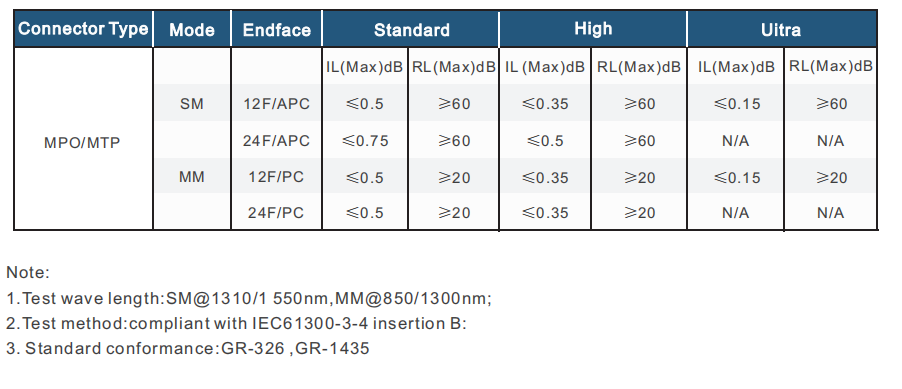

4.Technical Specifications
1. Features
1.1 Comply with IEC, TIA/EIA requirements
1.2 High quality and repeatabiltly of the tansmission parameters,
1.3 High qualty ceramic ferules with tighty contolldl concenticity and bore angle,
1.4 Very low IL value ≤L0.05 dB,
1.5 Connectors are constructed from high quality plastic, resistant to corrosion and high temperatures with
UL 94-V0 famability index.
2. Application
2.1 Measurements concerning telecommunication networks,
2.2 Testing optical devicoes,
2.3 Measuring equipment,
2.4 CWDM networks
2.5 Local area network (L AN),
2.6 FTTx, FTTD, FTTB, FTTH networks,
2.7 CATV solutions.

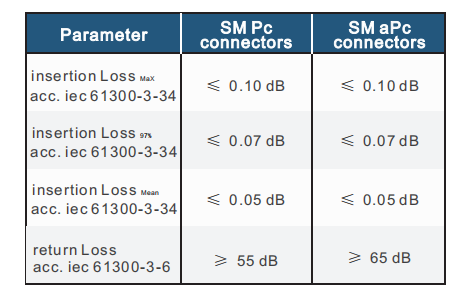

3.Technical specifications

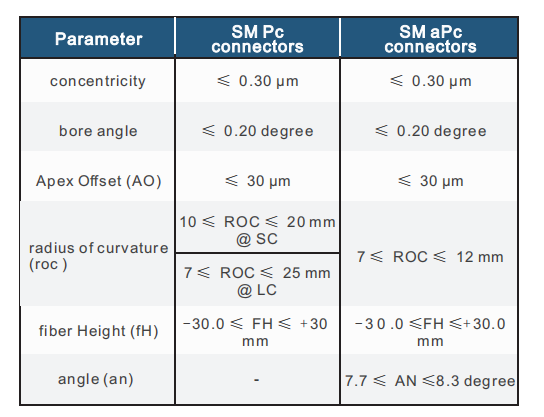

4.Master connector end face Geometry
5.available connectors
