Ptf Easy Link 2 Multi Patchcords

关键词:

Classification:

Keyword： Ptf Easy Link 2 Multi Patchcords

E-mail:

Tel:

Detail

1. Overview

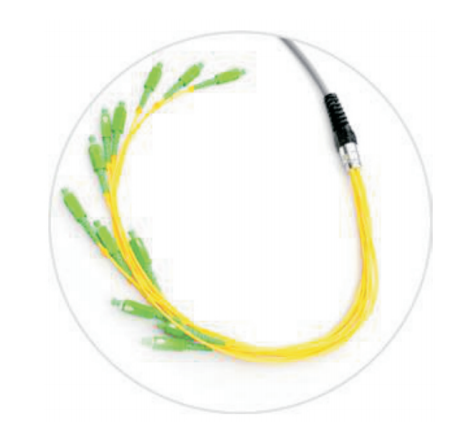

PTF-Easylink 2 pre-connectorized multifiber cables

Easylink 2 pre-connectorized multi-fiber cables are specifically designed to serve as gener alpurpose

products. The solution provides termination of loose tube cables as well as other cable types. The fibers are

inserted into 0.9mm tube or furcation, strengthened by Kevlar fibers,with 1.6mm or 2.8mm (depending on a

cable type). Therefore, the furcation point is protected by a metal sleeve with a boot protecting from moving

and bending. Then , fibers are terminated with connectors in accordance with customer's needs and

requirements. Moreover, output legs are placed inside a reusable protection tube, which is fixed to a bushing

and may be used as a pulling grip.

In addition, from an economic point of view PTF-Easylink2 cables provide costeffectivesolutions, thus they

are popular in the structured cabling systems, where they are used aslinks between distribution points. It is

a Plug and Play solution, which facilitates fast and easy installation, with no extra equipment, as in traditional

installation with splices.

2. Features

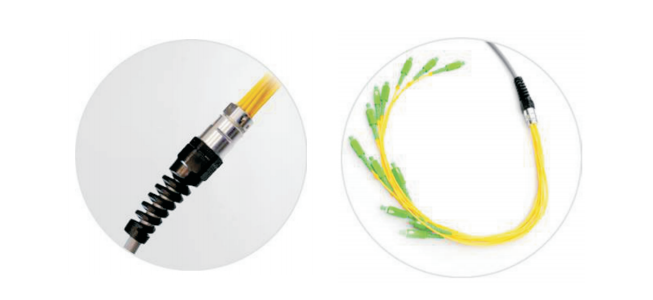

2.1 Furcation point is protected by a metal sleeve with a boot,

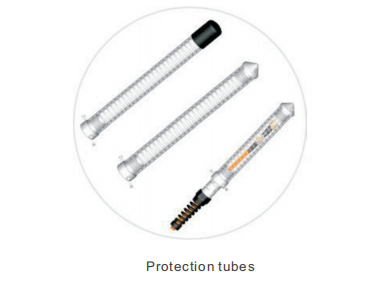

2.2 Protection tube may be used as a pulling grip

2.3 Easy and fast installation

2.4 Plug & Play solution,

2.5 Common in structured cable systems

2.6 Wide range of fiber optic connectors.

2.7 High quality

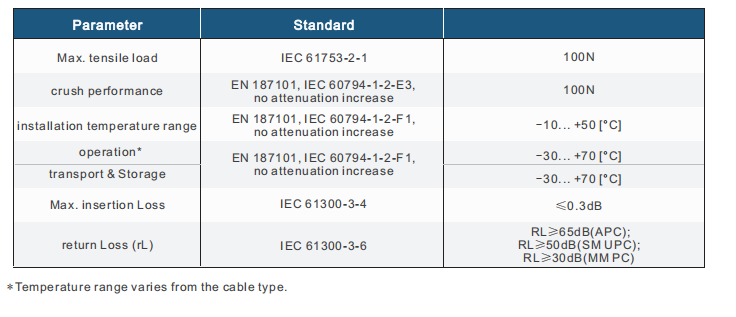

3. Mechanical and environmental characteristics

4. Technical specification
