1. Overview

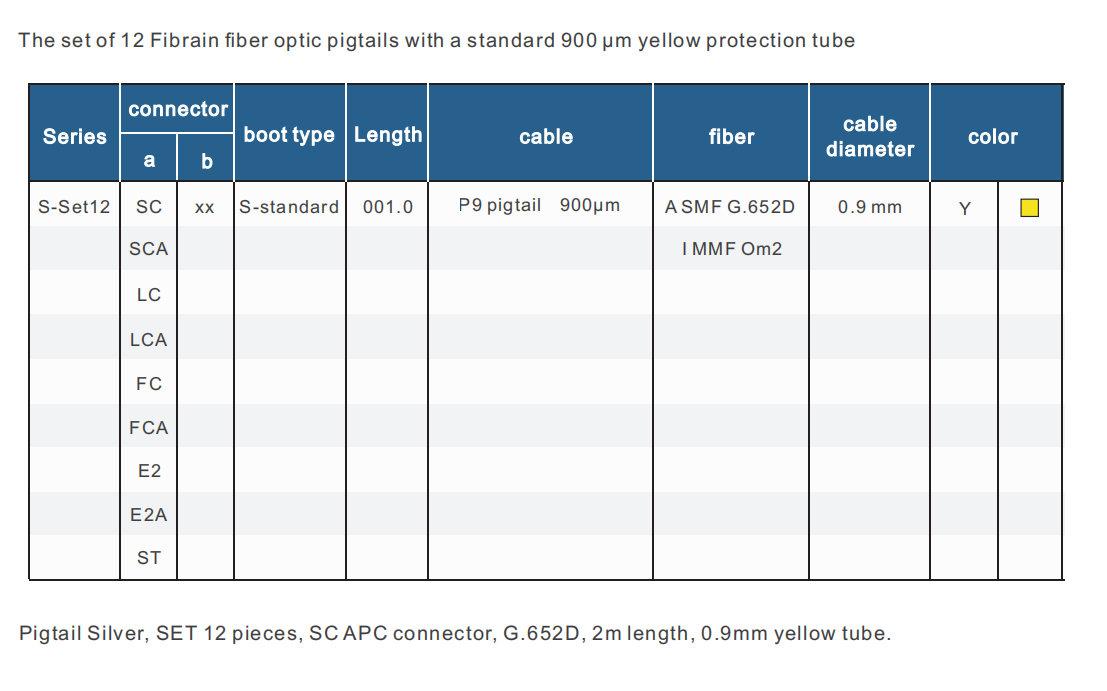

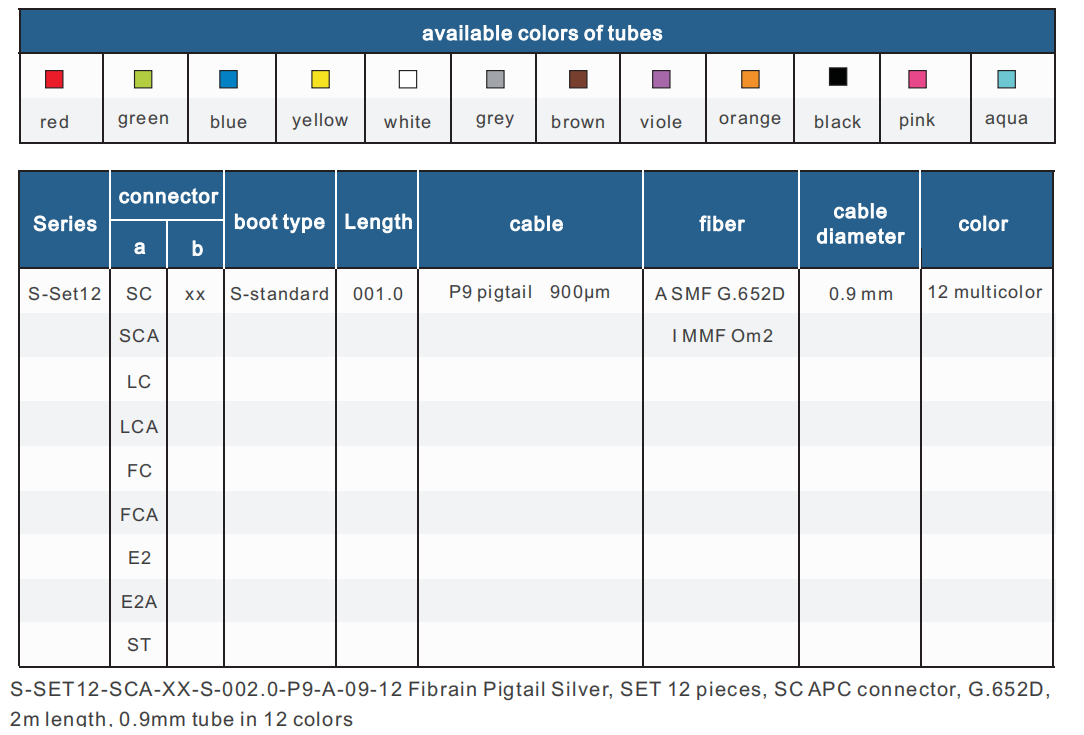

The set of 12 fiber optic pigtails polished in the Silver grade. This set is available in two versions: 12 pigtails

in yellow protection tube 0.9mm or a set of 12 pigtails with multicolor 0.9mm protection tubes. The set of

pigtails facilitates the assembly and identification of fiber optic splices, which saves installation time and

lower the costs substantially. The tubes are available in the following colors: red, green, blue, yellow, white

grey, brown, purple, orange, black, pink, aqua.

The set of 12 fiber optic pigtails with a standard 900μm colorful protection tube.

2. Technical specifications

Parameter	connectors
Parameter	SM Pc	SM APc	MM Pc
insertion Loss iLMaX against MaSte	≤ 0.35dB	≤ 0.35dB	≤ 0.35dB
insertion Loss iLtYP against MaSter acc. iec 61300-3-4	≤ 0.28dB	≤ 0.28 dB	≤ 0.25dB
return Loss acc. iec 61300-3-6	≥ 50 dB	≥ 60 dB	≥ 30 dB
