ONT Kit-Preterminated Wall Outlet with Drop Cable GN0604-A1

ONT Kit-Preterminated Wall Outlet with Drop Cable GN0604-A1

Solution of pre-terminated integrated with wall outlet composed drop cable and wall outlet with 4fibers.Preterminated wall outlet provide for quick and easy deployments with increased reliability which allow for fast service turn-up,improved network reach and lower overall network operating and maintenance costs.Wall outlet can bemounted on wall.The body is fixed with screws.A cable guidance ensures that the cable's minimum bending radius is always maintained.The cover protects the contents of the wall outlet and is fixed to thewall outlet without screws just by a simply click-in mechanism.Wall outlet it is equipped with 1,2 or 4pcs SC/APC adapters.Drop cable with 1,2 or 4 fibers is design and integration with low curvature radius G657/A2.Drop cable is suitable for indoor or outdoor installation.By using this fiber solution are insertion losses reduced with use splice connection on incoming cable fibers.

关键词:

Classification:

Ftth Indoor Wall Mounting Terminal Box

Basic style products

Keyword： ONT Kit-Preterminated Wall Outlet with Drop Cable GN0604-A1

E-mail:

jimmy.zhang@nblightyear.com

Tel:

+86-13857495516

Message

Download

Detail

Features
● Easy for installation ● Manager 1,2 or 4 cores in one box
● Installation of wall outlet on wall or DIN rail mounting ● 2 types of drop cable - for indoor and outdoor use

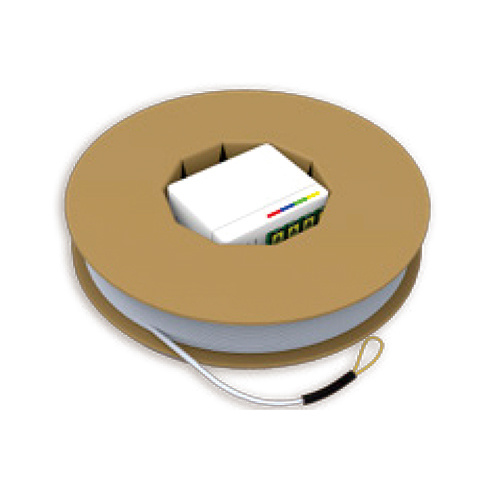

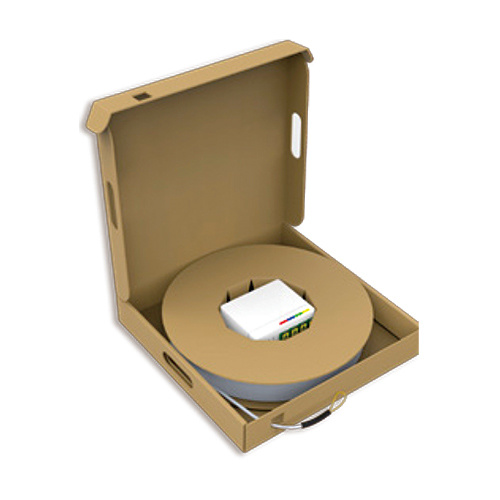

● Different lengths of cable available ● Cable on paper roll in carton box

Application
Pre-terminated drop cables integrated with ONT( Optical Network Termination) are designed for FTTH applications.
Composed of 1,2 or 4 fiber directly connected to SC/APC inside of wall outlet ,That provide very quick and secured installation from the subscriber to the floor box or multi dwelling unit. On one side of drop cable are mounted in the box directly mounted connectors (no splice) and the second side of drop cable is open.
Stapling and doorway angle are made possible through appropriate design and integration of fiber with low curvature radius(G657A2)

Part No.	Connector	Fiber Count	Fiber Type	Cable Diameter	Jacket Type	Length
	SC/UPC	2:Duplex	S1:G652D M1:0M1	3.0mm	P:PVC	10: 1meter
	SC/APC	4:4cores	S2:G655 M2: OM2	4.0mm	L:LSZH	20: 2meter
GN0604-A1	LC/UPC		S3:G657A1 M3: OM3	5.0mm	O:OFNR	30: 10meter
	LC/APC		S4:G657A2 M4: OM4		OP:OFNP	40: 20meter
						50: 30meter
						100: 100meter
