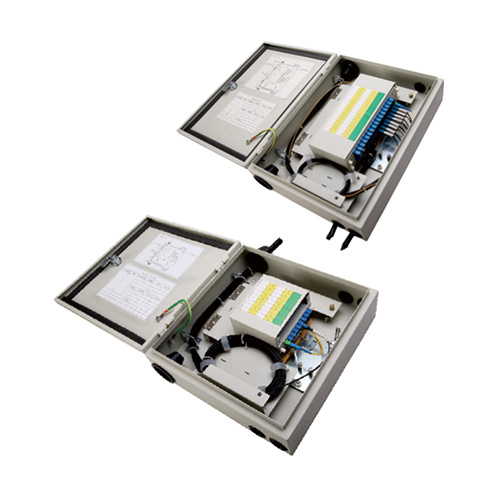

GXF6-15N18A/B
● 4 inlet ports on the right, 2 outlet ports on the left,applicable for φ10-22m cable.
● Max capacity: 48F.
Outdoor or corridor wall-mounting or polemount-ing,protection grade: IP65.
● Made of high quality surface sprayed cold rolled steel plate.
Single door, flip structure.
● Applicable for 4x1:4, 4x1:8, 2x1:16 or 1x1:32 module type splitter.
● Applicable for FC, SC, ST adapters.
Reliable cable fixing. peeling protection, grounding.
● Enough and independent inlet cable ports, soft cable is for branching.
● Max capacity: 48F.
Outdoor or corridor wall-mounting or polemount-ing,protection grade: IP65.
● Made of high quality surface sprayed cold rolled steel plate.
Single door, flip structure.
● Applicable for 4x1:4, 4x1:8, 2x1:16 or 1x1:32 module type splitter.
● Applicable for FC, SC, ST adapters.
Reliable cable fixing. peeling protection, grounding.
● Enough and independent inlet cable ports, soft cable is for branching.
关键词:
Classification:
Keyword： GXF6-15N18A/B
E-mail:
Tel:
Detail
| Type | Size | Weight | Inner carton size | Outer carton size |
| GXF6-15N18A | 350×340×100mm | 6.2-8.5kg | 375×365×125mm | 400×390×400mm(3 pcs) |
| GXF6-15N18B | 460×340×100mm | 6.2-8.5kg | 485×365×125mm | 510×390×400mm(3 pcs) |

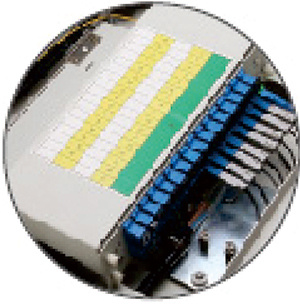

Integrated PL.C splitter
box,plug and play.

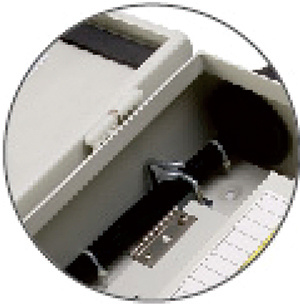

Single door, flip
structure,easy in
operation.

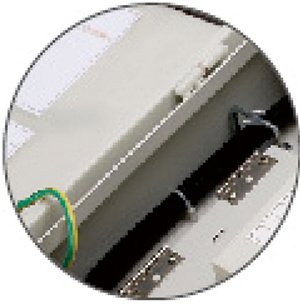

Branch cable could
be soft cable.
