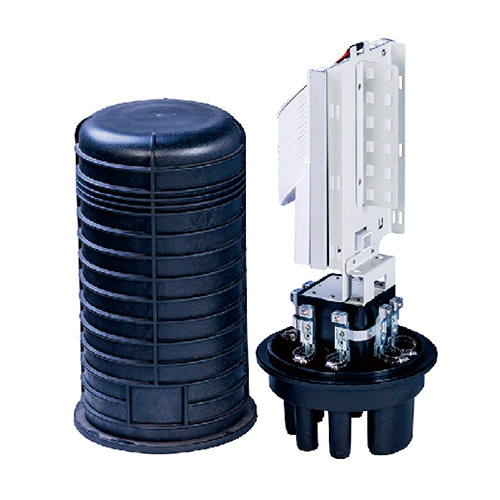

GPJ09L7-BR-C

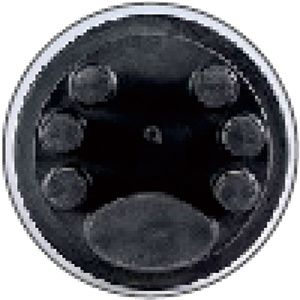

● 6 branch ports for φ8~18mm cable,
1 port for φ10~20mm uncut cable.
● Bundle cable capacity: 12-108F.
Could be installed with 9 trays,with max capacity 12F for each one or 18 trays,with max capacity 6F for each one.

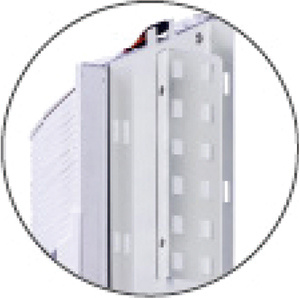

● Splice tray could be replaced with splitter tray, each tray could be installed with 2X1:4 and 1X1:8 micro type splitter,and 12pcs of adapters.
● Protection grade: IP68.
● Installation method: Aerial, wall mounting. direct burial, etc.

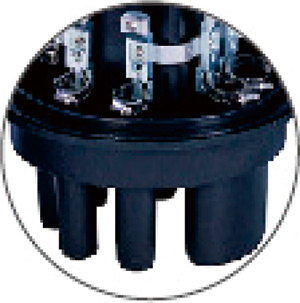

Mechanical seal for the box, and heat shrink seal for cable ports.
● Good sealing performance
1 port for φ10~20mm uncut cable.
● Bundle cable capacity: 12-108F.
Could be installed with 9 trays,with max capacity 12F for each one or 18 trays,with max capacity 6F for each one.
● Splice tray could be replaced with splitter tray, each tray could be installed with 2X1:4 and 1X1:8 micro type splitter,and 12pcs of adapters.
● Protection grade: IP68.
● Installation method: Aerial, wall mounting. direct burial, etc.
Mechanical seal for the box, and heat shrink seal for cable ports.
● Good sealing performance
关键词:
Classification:
Keyword： GPJ09L7-BR-C
E-mail:
Tel:
Detail
| Type | Size | Weight | Inner carton size | Outer carton size |
| GPJ097-BR-C | 480×φ260mm | 4.5-4.8kg | 480×275×245mm(1 pcs) | 570×500×540mm(4 pcs) |
6branch ports for φ8~18mm cable.
1 portfor φ10~20mm uncut cable.
1 portfor φ10~20mm uncut cable.
Mechanical seal for the box, and heat shrink seal for cable ports
Applicable for splicing,installation of splitters, distribution.
