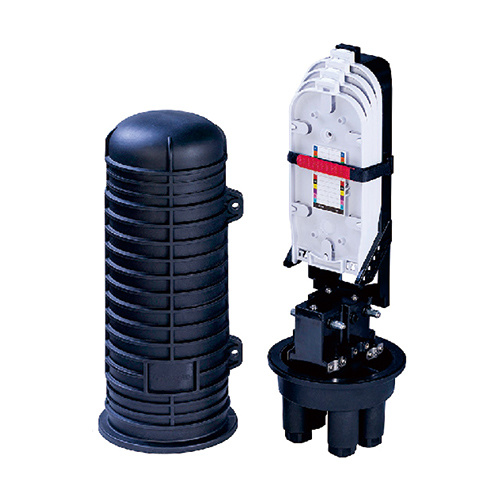

GPJ09-5607
● 4 branch ports for φ5~17.5 mm cable,
1 port for φ8~17.5mm uncut cable.
● Bundle cable capacity: 12-96F.
Could be installed with 4 trays, 24F/per tray in max.
● Protection grade: IP68.
● Installation method: Aerial, wall mounting, direct burial, etc.
● Mechanical seal for the box and cable ports.
● Splice trays are all tightly fixed by black buckle when splicing. Less cable sealing kit, easy operation and good sealing performance.
1 port for φ8~17.5mm uncut cable.
● Bundle cable capacity: 12-96F.
Could be installed with 4 trays, 24F/per tray in max.
● Protection grade: IP68.
● Installation method: Aerial, wall mounting, direct burial, etc.
● Mechanical seal for the box and cable ports.
● Splice trays are all tightly fixed by black buckle when splicing. Less cable sealing kit, easy operation and good sealing performance.
关键词:
Classification:
Keyword： GPJ09-5607
E-mail:
Tel:
Detail
| Type | Size | Weight | Inner carton size | Outer carton size |
| GPJ09-5607 | 520×φ245mm | 3.8-4.3kg | 540×245×210mm(1 pcs) | 555×510×675mm(6 pcs) |

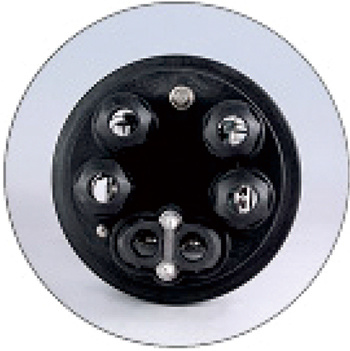

4 branch ports for φ5~17.5mm cable.
1 port for φ8~17.5mm uncut cable.
Mechanical seal, good sealing performance.

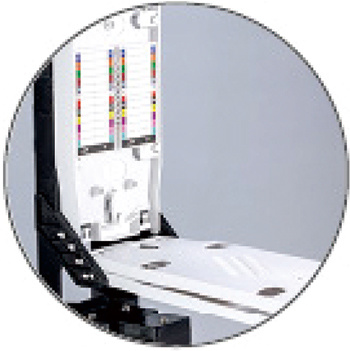

Splice trays are all
tightly fixed by black
buckle when splicing.

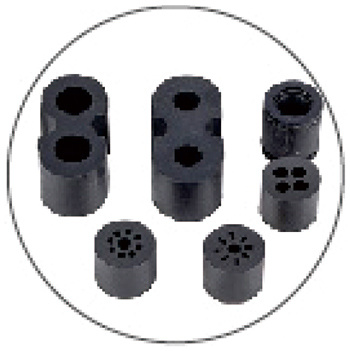

Applicable for multi
cables by changing
the sealing kits
