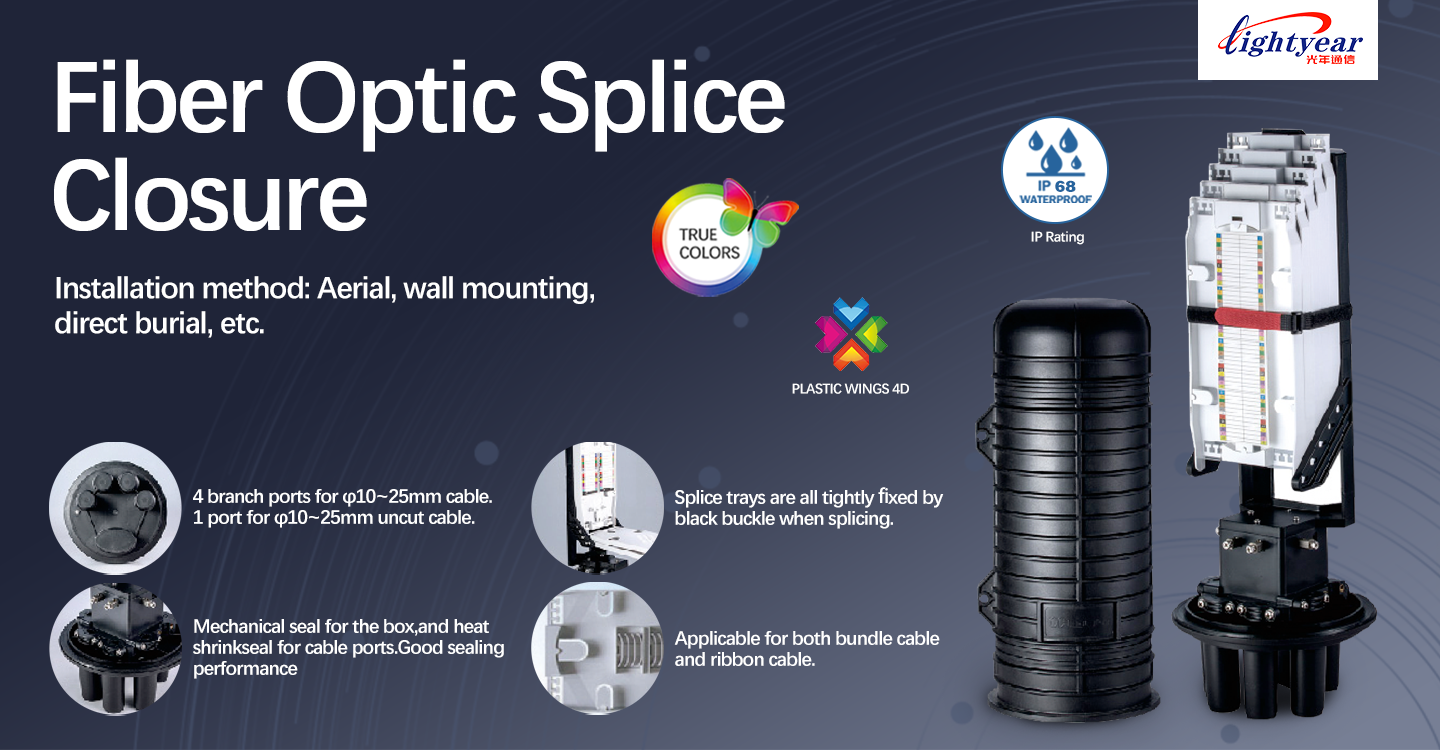

GPJ09-5808
● 2 branch ports for φ8~18mm cable,4 branch ports for φ10~25mm cable, 1 port for φ10~25mm uncut cable.
● Bundle cable capacity: 12-240F.
● Could be installed with 5 trays, 48F/per tray in max.
● Protection grade: IP68.
● Installation method: Aerial, wall mounting,direct burial, etc.
● Mechanical seal for the box, and heat shrink seal for cable ports.
● Good sealing performance.
Splice trays are all tightly fixed by black buckle when splicing.
Applicable for both bundle cable and ribbon cable.
● Bundle cable capacity: 12-240F.
● Could be installed with 5 trays, 48F/per tray in max.
● Protection grade: IP68.
● Installation method: Aerial, wall mounting,direct burial, etc.
● Mechanical seal for the box, and heat shrink seal for cable ports.
● Good sealing performance.

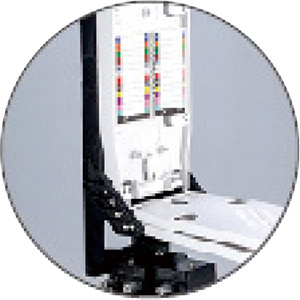

Splice trays are all tightly fixed by black buckle when splicing.
Applicable for both bundle cable and ribbon cable.
关键词:
Classification:
Keyword： GPJ09-5808
E-mail:
Tel:
Detail
| Type | Size | Weight | Inner carton size | Outer carton size |
| GPJ09-5808 | 600×φ260mm | 5.5-6.2kg | 610×280×280mm(1 pcs) | 630×580×595mm(4 pcs) |

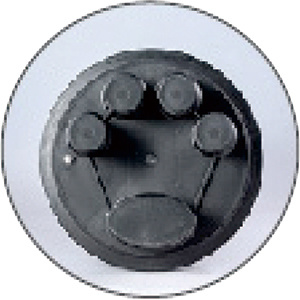

4 branch ports for φ10~25mm cable.
1 port for φ10~25mm uncut cable.
1 port for φ10~25mm uncut cable.

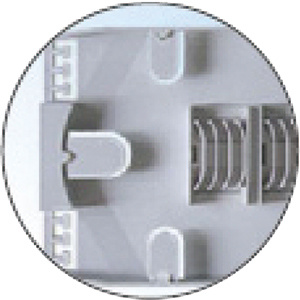

Applicable for both bundle cable and ribbon cable.

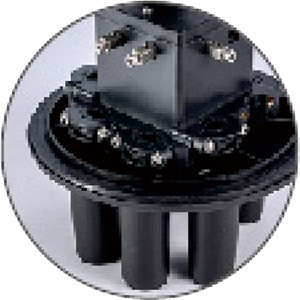

Mechanical seal for the box,and heat shrinkseal for cable ports.
Good sealing performance
Good sealing performance
Various types of splice trays as options.
