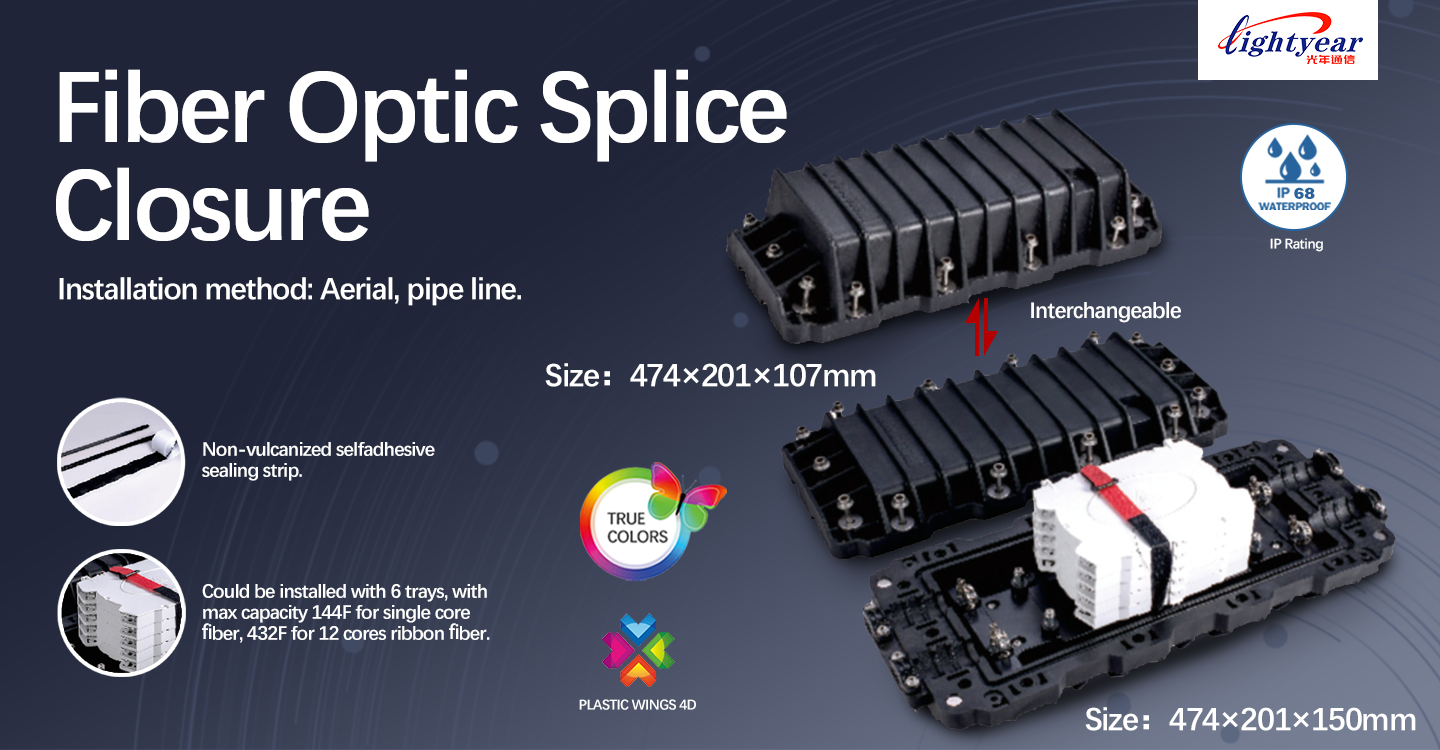

GPJ09-6806/GPJ09-6806-B
● 4 cable ports in total (2 inlet and 2 outlet).
Applicable for φ10~20mm cable.
● Could be installed with 6x24F trays,with max capacity 144F for single core fiber,432F for 12 cores ribbon fiber.
● Mechanical seal. Protection grade: IP68.
● Installation method: Aerial, pipe line.
● It passes various environmental performance tests, including 20 cycles of high & low temperature test, all kinds of chemical corrosion tests.
● Tighten screws and gaskets are all made of 304 stainless steel,to improve the corrosion performance.
● Enough space for the storage of uncut cable, easy in installation.
Applicable for φ10~20mm cable.
● Could be installed with 6x24F trays,with max capacity 144F for single core fiber,432F for 12 cores ribbon fiber.
● Mechanical seal. Protection grade: IP68.
● Installation method: Aerial, pipe line.
● It passes various environmental performance tests, including 20 cycles of high & low temperature test, all kinds of chemical corrosion tests.
● Tighten screws and gaskets are all made of 304 stainless steel,to improve the corrosion performance.
● Enough space for the storage of uncut cable, easy in installation.
关键词:
Classification:
Keyword： GPJ09-6806/GPJ09-6806-B
E-mail:
Tel:
Detail

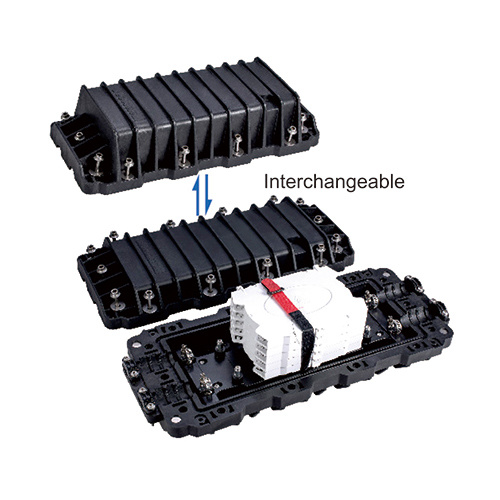

| Type | Size | Weight | Inner carton size | Outer carton size |
| GPJ09-6806 | 474×201×107mm | 3.0-3.5kg | 540×220×125mm(1 pcs) | 560×465×425mm(6 pcs) |
| GPJ09-6806-B | 474×201×150mm | 3.5-4.0kg | 540×220×165mm(1 pcs) | 560×465×550mm(6 pcs) |

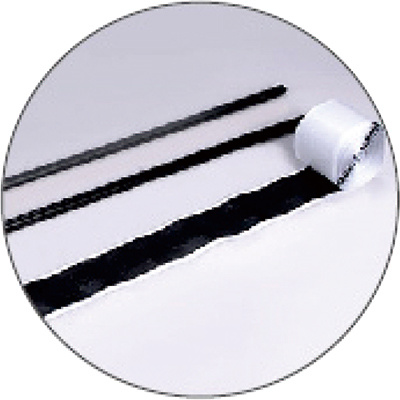

Non-vulcanized self-adhesive sealing strip.

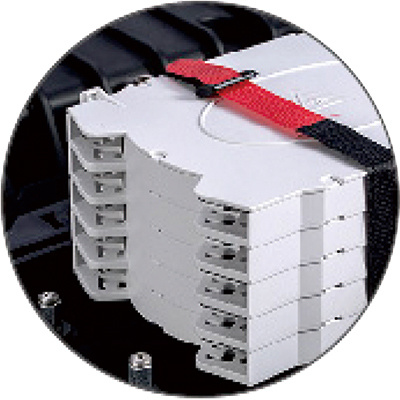

Could be installed with 6 trays, with
max capacity 144F for single core
fiber, 432F for 12 cores ribbon fiber.
