GPJ09-6805/GPJ09-6805-B
● 8 cable ports in total (4 inlet and 4 outlet).Applicable for φ10~ 18mm cable.
● Could be installed with 6x24F trays, with max capacity 144F for single core fiber.
● Mechanical seal. Protection grade: IP68.
● Installation method: Aerial, pipe line.
● lt passes various environmental performance tests, including 20 cycles of high&low temperature test, all kinds of chemical corrosion tests.
● Tighten screws and gaskets are all made of 304 stainless steel to improve the corrosion resistance.
● Enough space for the storage of uncut cable, easy in installation.
● Could be installed with 6x24F trays, with max capacity 144F for single core fiber.
● Mechanical seal. Protection grade: IP68.
● Installation method: Aerial, pipe line.
● lt passes various environmental performance tests, including 20 cycles of high&low temperature test, all kinds of chemical corrosion tests.
● Tighten screws and gaskets are all made of 304 stainless steel to improve the corrosion resistance.
● Enough space for the storage of uncut cable, easy in installation.
关键词:
Classification:
Keyword： GPJ09-6805/GPJ09-6805-B
E-mail:
Tel:
Detail
| Type | Size | Weight | Inner carton size | Outer carton size |
| GPJ09-6805 | 555×217×107mm | 4.0-4.5kg | 620×235×125mm(1 pcs) | 640×490×425mm(6 pcs) |
| GPJ09-6805-B | 555×217×151mm | 4.0-4.5kg | 620×235×165mm(1 pcs) | 640×490×550mm(6 pcs) |

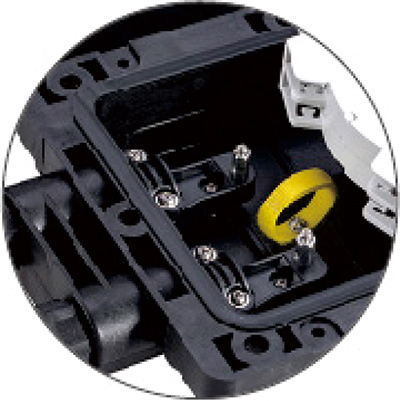

Non-vulcanized self-
adhesive sealing strip.

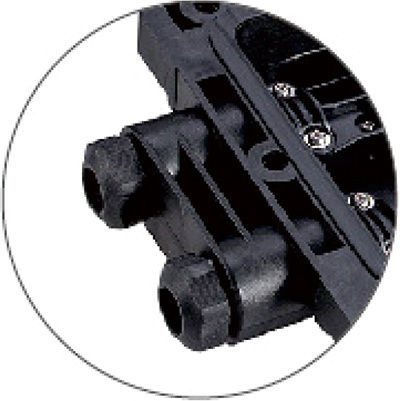

8ports to meet different
branch needs.
Could be installed with 6 trays,
with max capacity 144F for single core fiber.
