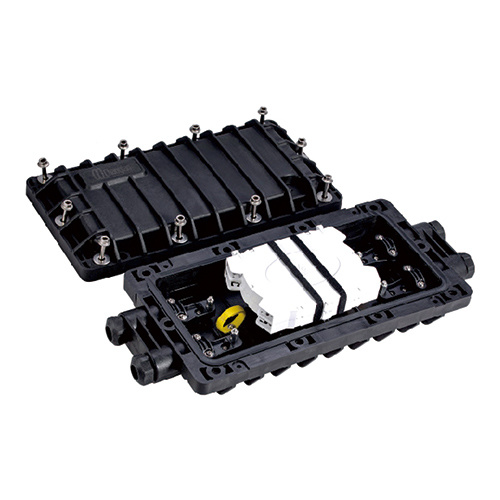

GPJ09-6812
● 4 cable ports in total (2 inlet and 2 outlet).
Applicable for φ10~18mm cable.
● Could be installed with 3x24F trays,with max capacity 72F for single core fiber. ● Mechanical seal.Protection grade:IP68.
● Installation method:Aerial,pipe line.
● Combine the cable fixture plate and strength member fixture device to save more space for cable storage.
● Cables are sealed by nuts to meet test requirements of cable torque,stretching. pressure, bending.
Applicable for φ10~18mm cable.
● Could be installed with 3x24F trays,with max capacity 72F for single core fiber. ● Mechanical seal.Protection grade:IP68.
● Installation method:Aerial,pipe line.
● Combine the cable fixture plate and strength member fixture device to save more space for cable storage.
● Cables are sealed by nuts to meet test requirements of cable torque,stretching. pressure, bending.
关键词:
Classification:
Keyword： GPJ09-6812
E-mail:
Tel:
Detail
| Type | Size | Weight | Inner carton size | Outer carton size |
| GPJ09-6812 | 474×200×105mm | 2.3-2.8kg | 550×220×125mm(1 pcs) | 520×465×425mm(6 pcs) |
Combine the cable fixture plate and strength member fixture device to save more space for cable storage.
Cables are sealed bynuts to meet test requirements of cable torque,stretching,pressure,bending.
