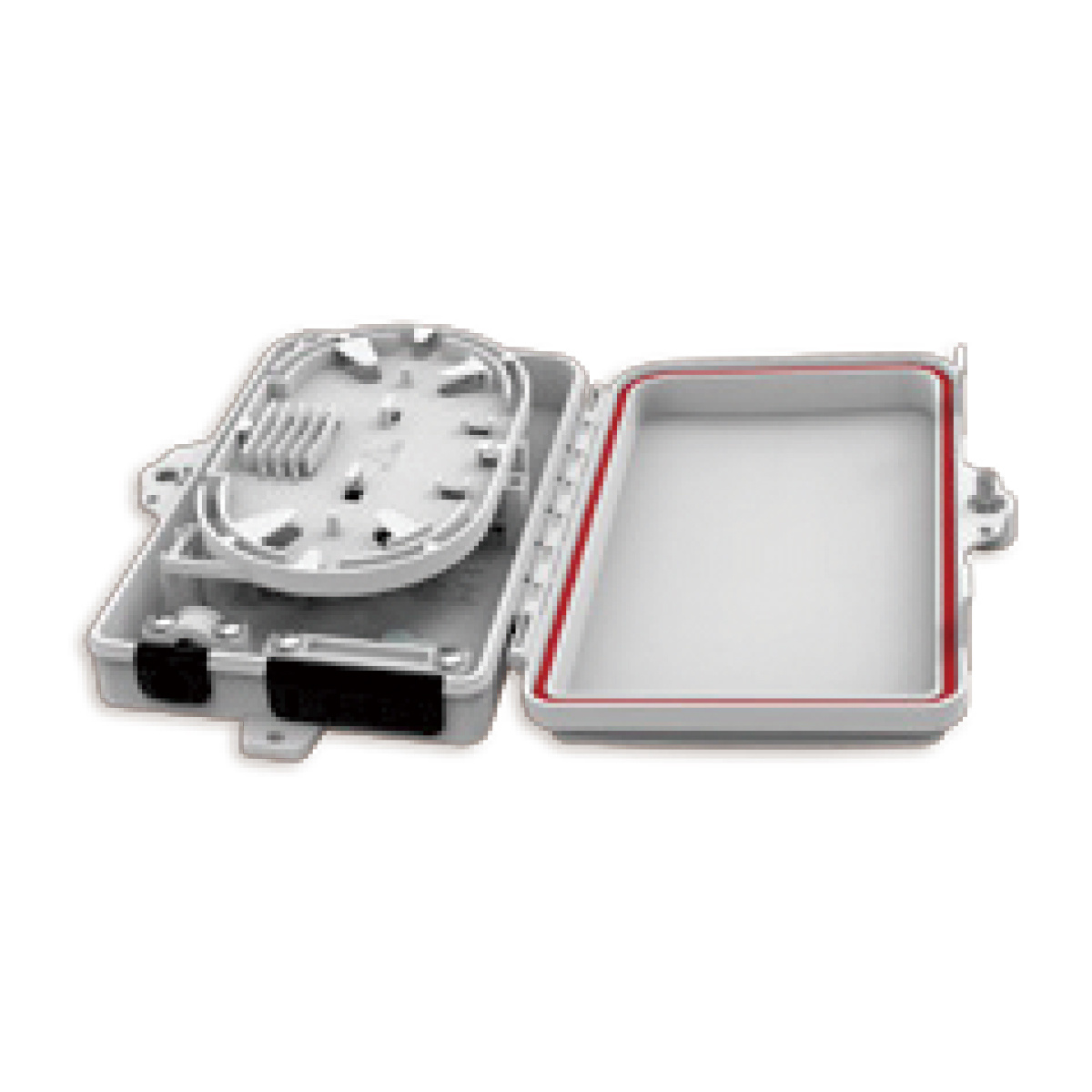

● With apart splice tray for easy connection and splice
● Tight fixed the feeder cable ● Easy to set up the drop cable
● With lock for good safe ● High quality plastics

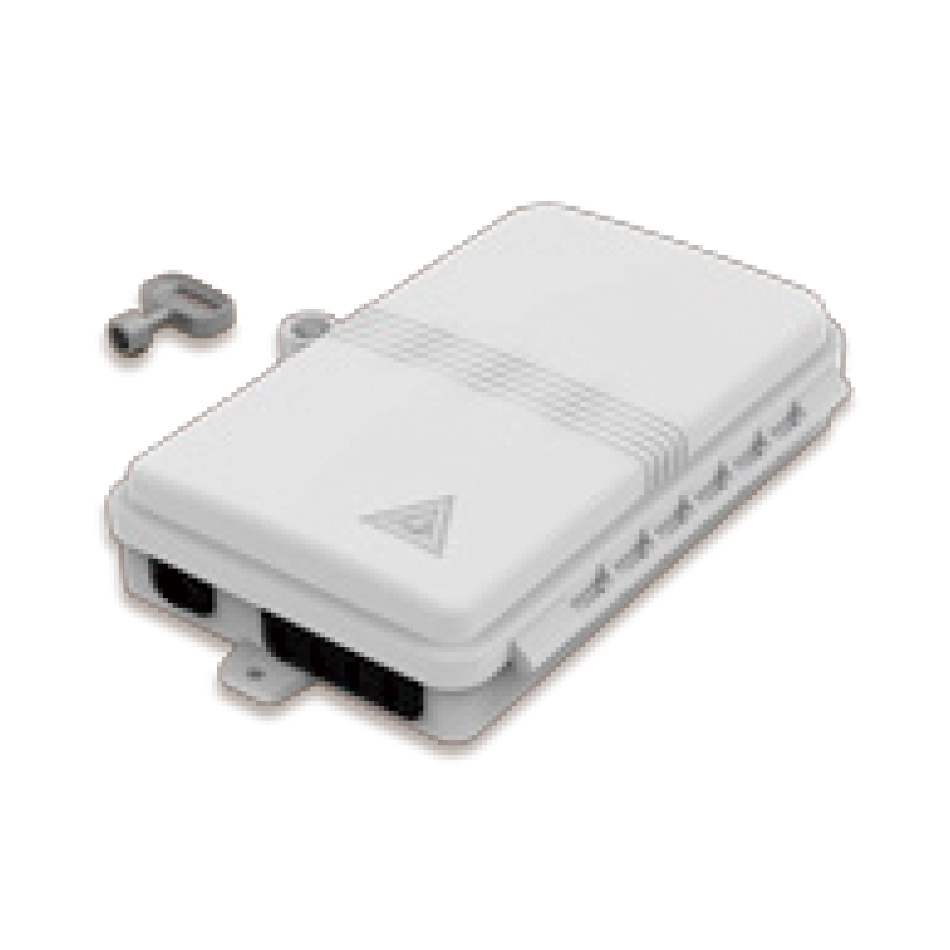

Name	Outdoor fiber optic distribution box 24fibers
Part No.	GN0602-4A
Outline Dimension(LxWxH)mm	1 85x116x40mm
Port Type	4port SC Simplex adapter or 4port LC Duplex adapter 1*4 Mini PLC Splitter
Installation	Wall Mount (outdoor)
IP Rate	IP65
Cable Entries	Supporting Uncut
Color	White

Part No.	Description
GN0602-4A	FTTH wall box without adapter and pigtail
GN0602-4A-4SC-0	FTTH wall box with 4pcs SC adapter .without pigtail
GN0602-4A-4SC-P	FTTH wall box with 4pcs SC adapter .with 4pcs pigtail
GN0602-4A-4LC-0	FTTH wall box with 4pcs LC Duplex adapter ,without pigtail
GN0602-4A-4LC-P	FTTH wall box with 4pcs LC Duplex adapter ,with 8pcs pigtail
