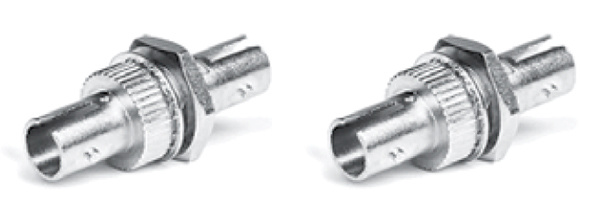

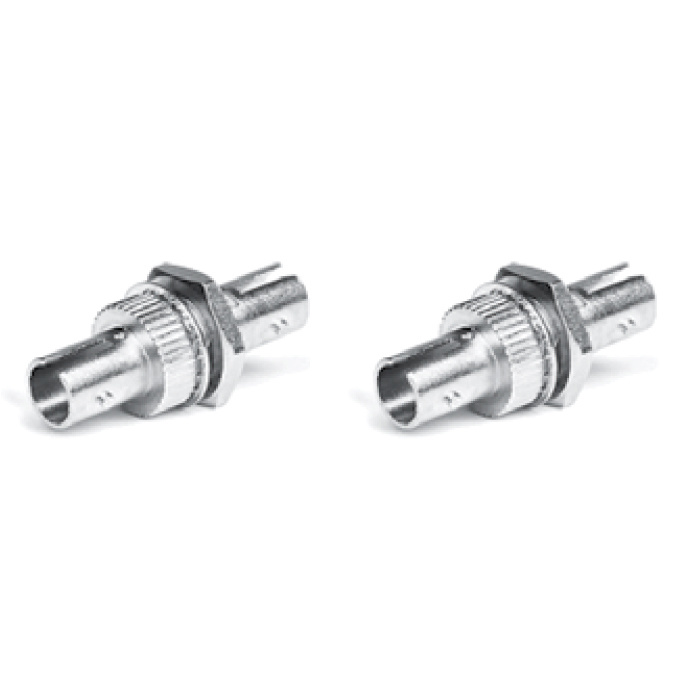

St Fiber Optic Adapters
Adapters are precision-made items with excellent optical and mechanical parameters.
关键词:
Classification:
Keyword： St Fiber Optic Adapters
E-mail:
Tel:
Detail
Features
Æ Excellent optical and mechanical parameters,
Æ High quality,
Æ Thread or bayonet mount mechanism providing constant and stable connection,
Æ High quality ceramic sleeve for singlemode and phosphor-metal sleeve for multimode applications,
Æ Constructed from material resistant to corrosion.
FC Adapters
Reference Scheme
| Series | adapter typet | type | Mounting | Sleeve | Housing color | dust cover color |
| a181-Standard | ST | SX | 3 d-hole | 1 ceramic | 0 - metal | 3 black |
| a191-Premium | 2 metal | 4 red | ||||
ST PC SM adapter, SX, Standard Series, d-hole mounting, ceramic sleeve,metal housing, black dust cover.
Technical specifications
| Parameter | Standard One-Piece | Premium One-Piece |

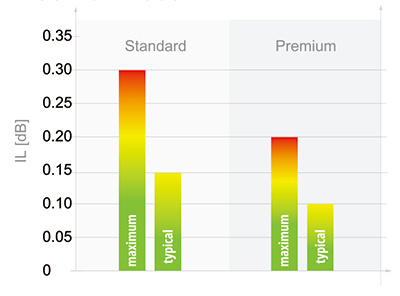

| insertion Loss iLMaX | 0.30 dB | 0.20 dB |
| insertion Loss iL tYP | 0.15 dB | 0.10 dB |
| repeatability ΔIL/mating cycle | ±0.10dB | ± 0.08 dB |

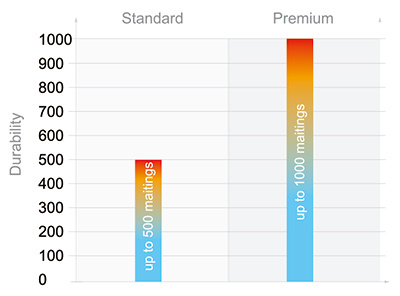

| durability | 500 matings/ <0.20 dB typical change | 1000 matings/ <0.15 dB typical change |
| alignment sleeve | ceram ic/metal | |
| operating temperature | -40 up to +85°C | |
| Mounting | d-hole | |
