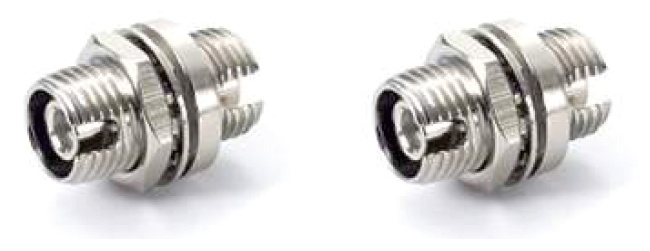

FC Fiber Optic Adapters

FC connection elements are specifically designed for telecommunication elements,where stable connection is necessary and performed with the use of a thread mechanism. The FC connector is screwed in, which eliminates the possibility of an accidental disconnect. Therefore, the FC Fibrain optic fiber adapters have excellent optical and mechanical parameters as they are constructed from high quality materials.The FC adapters are designed for single- and multimode application with high qualityof alignment sleeve.

关键词:

Classification:

Fiber Optic Adapters

Basic style products

Keyword： FC Fiber Optic Adapters

E-mail:

jimmy.zhang@nblightyear.com

Tel:

+86-13857495516

Message

Download

Detail

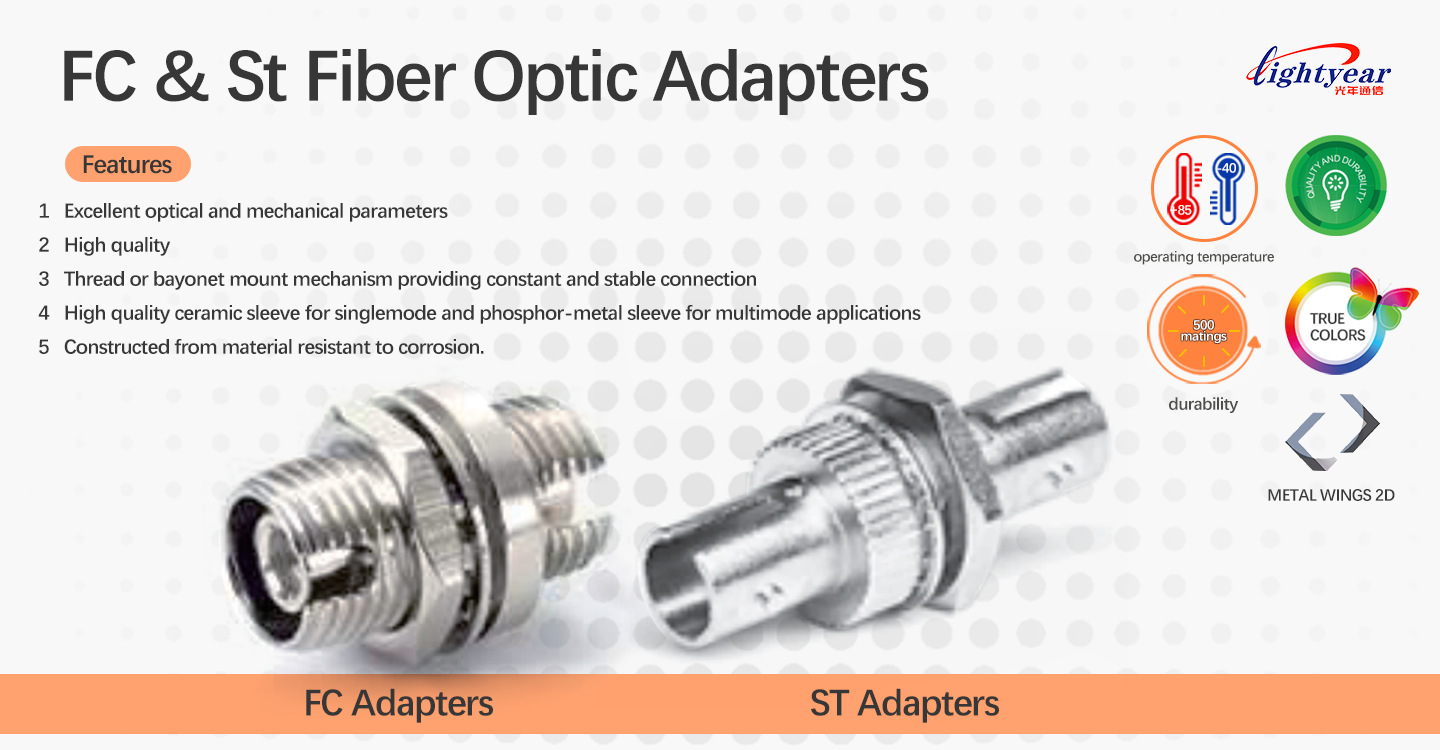

Features

Æ Excellent optical and mechanical parameters,
Æ High quality,
Æ Thread or bayonet mount mechanism providing constant and stable connection,
Æ High quality ceramic sleeve for singlemode and phosphor-metal sleeve for multimode applications,
Æ Constructed from material resistant to corrosion.

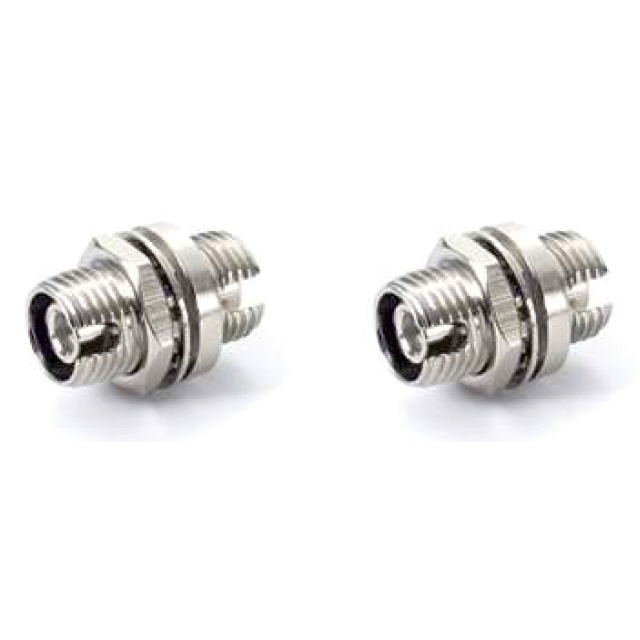

FC Adapters

Reference Scheme

Series	adapter typet	type	Mounting	Sleeve	Housing color	dust cover color
a151-Standard	FC	sx	3 d-hole	1 ceramic	0 - metal	1 green
a161-Premium	FCA			2 metal		3 black
						4 red

FC APC SM adapter, SX, Standard Series, d-hole mounting, ceramic sleeve, metal housing, green dust cover

Technical specifications

Parameter	Standard One-Piece	Premium One-Piece
insertion Loss iLMaX	0.30 dB	0.20 dB
insertion Loss iL tYP	0.15 dB	0.10 dB
repeatability ΔIL/mating cycle	±0.10dB	± 0.08 dB
durability	500 matings/ <0.20 dB typical change	1000 matings/ <0.15 dB typical change
alignment sleeve	ceram ic/metal
operating temperature	-40 up to +85°C
Mounting	d-hole

Insertion Loss

Durability
