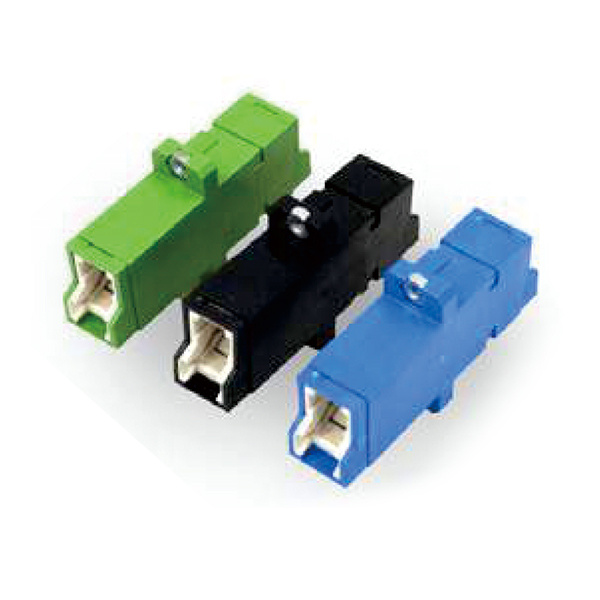

E2000TM Fiber Optic Adapters

Premium Super One-Piece adapters are equipped with inner, metal shutters whichprotect against laser radiation and guarantee protection for the eyes. Adaptersin the Premium Super One-Piece are designed as one solid body with non-metallic clipsand 4 anti-rattle wings, which protect against the movement and limit the spacesin a panel. Fiber optic adapters are constructed from high quality and anti- fungus materialswith the UL94-V0 flammability index. The adapters are available in a duplex version withan optional flange in 5 colors. They comply with GR326 TG100, PN, IEC, EIA/TIArequirements.

关键词:

Classification:

Fiber Optic Adapters

Basic style products

Keyword： E2000TM Fiber Optic Adapters

E-mail:

jimmy.zhang@nblightyear.com

Tel:

+86-13857495516

Message

Download

Detail

Features

Æ Equipped with integral self-closing metal laser protection internal shutter, which guarantees protection for the eyes and against dust,
Æ Excellent optical parameters,
Æ Mounting with the use of M2 screws or quick mounting by integrated clip (possibility of flangeless adapters),
Æ Constructed from highly resistant and durable PBTmaterial with UL 94-V0 flammability index,
Æ High quality ceramic alignment sleeve ensures high performance over 1000 mating cycles.

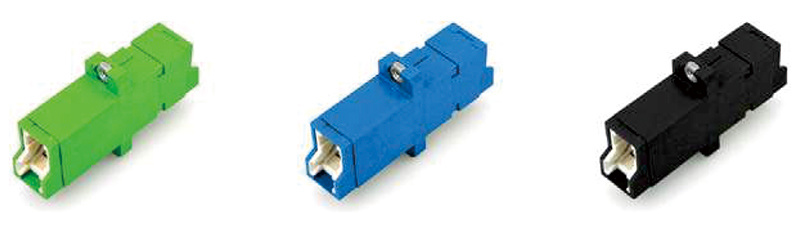

Available colors E2000^TM Adapters

Type of e2000^TM adapters

code	adapter type
r504511	E2000 SM PC, blue housing, flange, ceramic sleeve
r504541	E2000 SM APC, green housing, flange, ceramic sleeve
r504562	E2000 SM APC, green housing, no flange, ceramic sleeve
r508019	E2000 MM PC, black housing, flange, ceramic sleeve

Technical specifications

Parameter	e2000^tM Sm	e2000^tM MM
insertion Loss iL_MaX	0.20 dB	0.30 dB
insertion Loss iL _tYP	0.10 dB	0.15 dB
alignment sleeve	aceram ic	ceramic
durability	1000 matings
operating temperature	-40 up to +85°C
Strength of coupling mechanism	70N
inner shutter

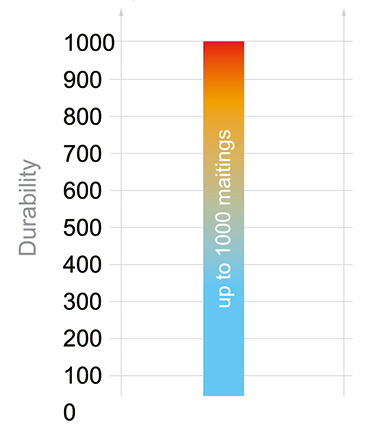

Durability

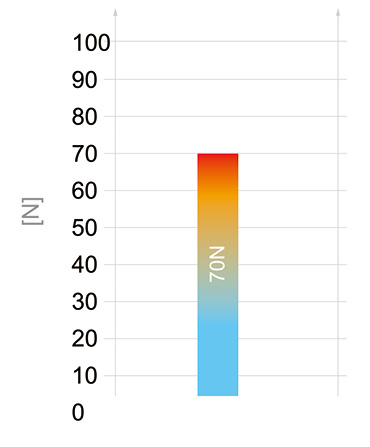

Strength of coupling mechanism
