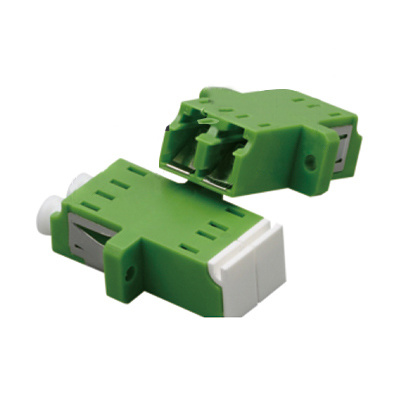

LC Fiber Optic Adapters With Shutters

Premium Super One-Piece adapters are equipped with inner, metal shutters whichprotect against laser radiation and guarantee protection for the eyes. Adaptersin the Premium Super One-Piece are designed as one solid body with non-metallic clipsand 4 anti-rattle wings, which protect against the movement and limit the spacesin a panel. Fiber optic adapters are constructed from high quality and anti- fungus materialswith the UL94-V0 flammability index. The adapters are available in a duplex version withan optional flange in 5 colors. They comply with GR326 TG100, PN, IEC, EIA/TIArequirements.

关键词:

Classification:

Fiber Optic Adapters

Basic style products

Keyword： LC Fiber Optic Adapters With Shutters

E-mail:

jimmy.zhang@nblightyear.com

Tel:

+86-13857495516

Message

Download

Detail

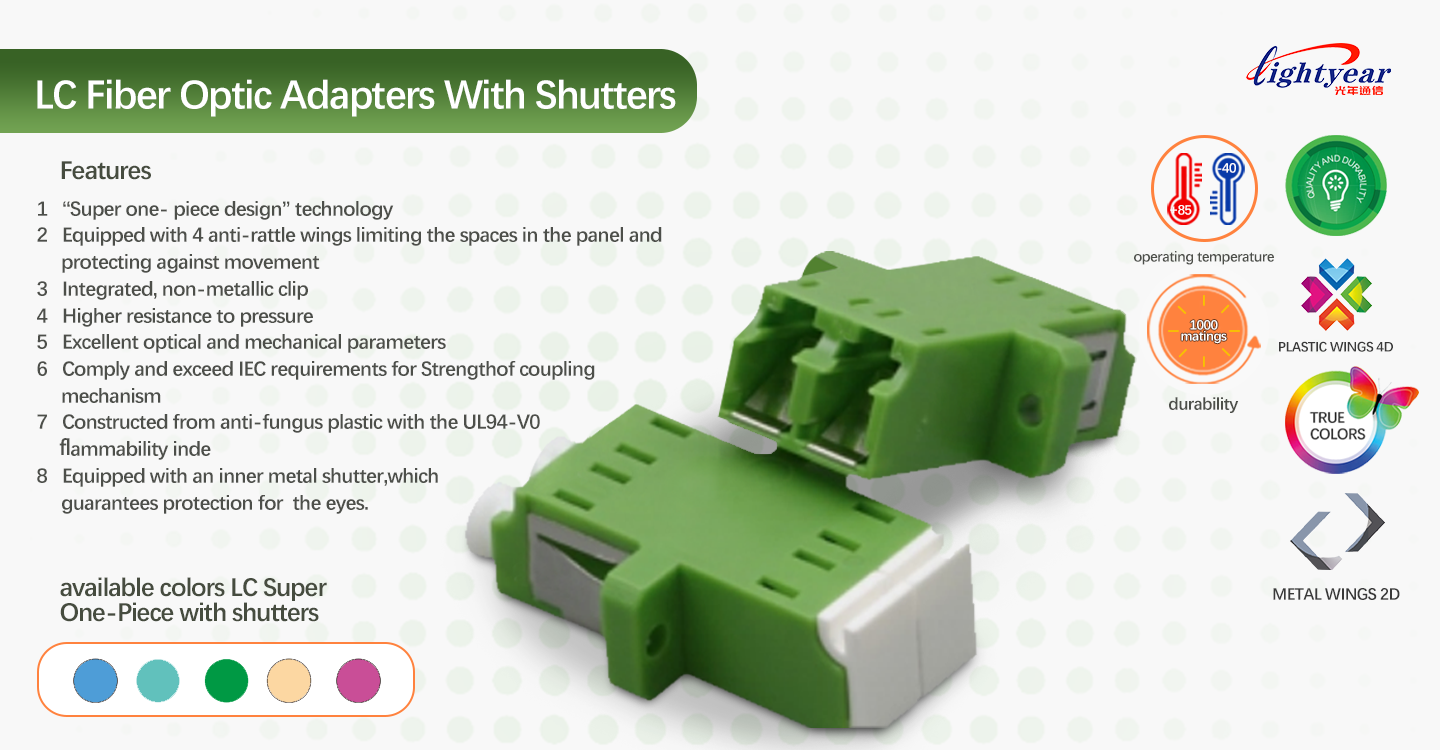

Features

Æ “Super one- piece design” technology,
Æ Equipped with 4 anti-rattle wings limiting the spaces in the panel and protecting against movement,
Æ Integrated, non-metallic clip,
Æ Higher resistance to pressure,
Æ Excellent optical and mechanical parameters,
Æ Comply and exceed IEC requirements for Strengthof coupling mechanism,
Æ Constructed from anti-fungus plastic with the UL94-V0 flammability index,
Æ Equipped with an inner metal shutter,which guarantees protection for the eyes.

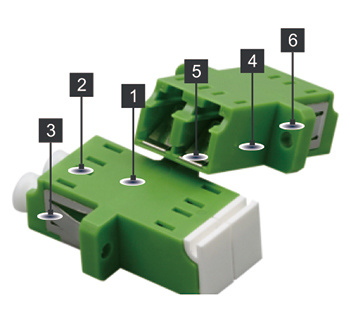

LC Premium Super One-Piece

1.“Super One-Piece Design" technology
2. Anti-fungus plastic with the UL 94-V0 flamability index
3. metal clips
4. Housing available in 5 colors
5. Inner metal shutter
6. Anti-rattle wings

available colors LC Super One-Piece with shutters

reference scheme

Series	adapter typet	type	Shutter	Mounting	Sleeve	Housing color	dust cover color
aS31	LC	DX	1 internal	1 flange	1 ceramic	1 green	8 white
	LCA			2 no flange	2 metal	2 blue
						5 beige
						6 aqua
						7 violet

AS31-LCA-DX11118 Fibrain LC APC SM adapter, DX, Premium Super One-Piece, intermal shutter,with flange, ceramic sleeve, green housing, white dust over.

Technical specifications

Parameter	Premium One-Piece

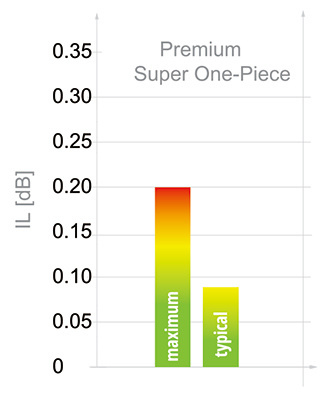

Insertion Loss(iL)	max 0.20 dB typ. 0.08 dB
repeatability AIL/mating cycle	± 0.08 dB

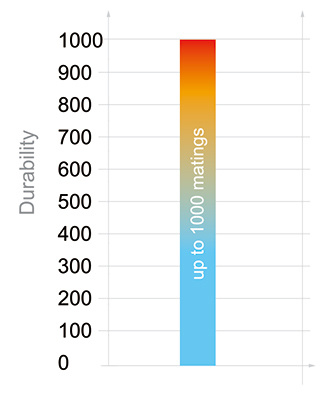

durability	1000 matings/<0.15 dB typical change

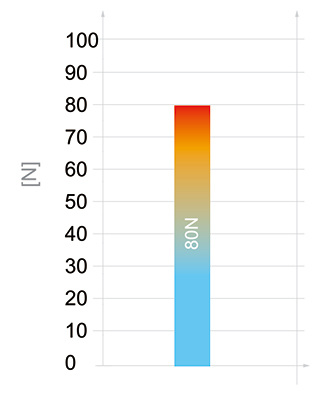

Strength of coupling mechanism	80N
operating temperature	-40 up to +85°C
alignment sleeve	ceram ic/metal
Mounting	metal wings 4D
external shutter	-
internal shutter
Gr326 Gt100 requirements
anti-fungus plastic
colors
