LC Fiber Optic Adapters

The series of LC fiber optic adapters with standard optical and mechanical parameters, in accordance with PN, IEC and EIA/TIA standards. The adapters are constructedin one-piece technology, without any welded points, which guarantees more durabledesign and increased side loading performance. A fully ceramic sleeve, also in multimode adapters, is a characteristic feature of Standard One-Piece LC adapters. Therefore, they are equipped with a metal mounting clip providing assembly without a screw.The adapters have good optical parameters. High quality alignment sleeve guarantees repeatability of IL value as well as a stable connection.

关键词:

Classification:

Fiber Optic Adapters

Basic style products

Keyword： LC Fiber Optic Adapters

E-mail:

jimmy.zhang@nblightyear.com

Tel:

+86-13857495516

Message

Download

Detail

Features

Æ Housing constructed as one solid body,
Æ Good optical and mechanical parameters,
Æ Metal mounting clips providing the assemblywithout screws,
Æ Ceramic alignment sleeve for both application:singlemode as well as multimode,
Æ Wide color range - available in 5 colors,
Æ Available in a duplex and quad configuration withan optional flange.

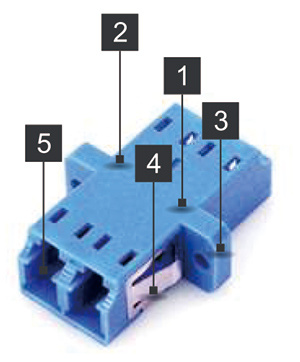

LC Standard One-Piece

1.“One-Piece Design" technology
2. Housing available in 5 colors
3. Optional flange
4. Metal mounting clip
5. Ceramic alignment sleeve for SM and MM aplication

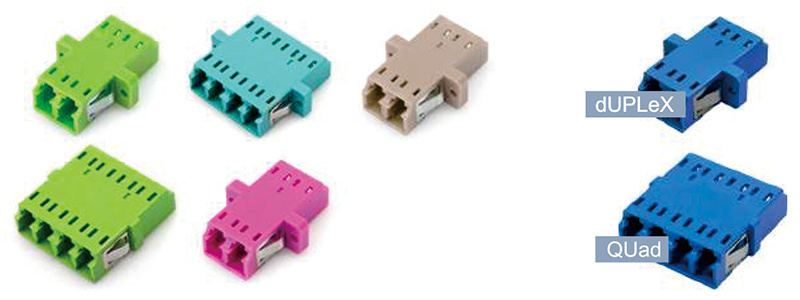

available colors

reference scheme

ISeries	adapter typet	type	Mounting	Sleeve	Housing color	dust cover color
a001	LC	DX	1 flange	1 ceramic	1 green	8 white
	LCA	4X	2 no flange		2 blue
					5 beige
					6 aqua
					7 violet

A001-LC-DX-1128 Fibrain LC PC SM adapter, DX, Standard One Piece, with flange, ceramic sleeve,blue housing, white dust cover.

Technical specifications

Parameter	Standard One-Piece

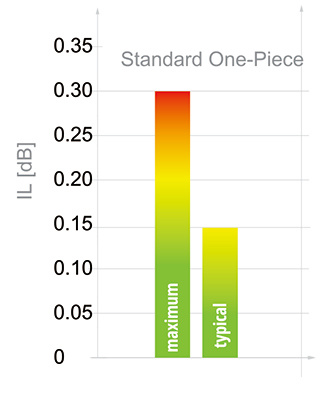

Insertion Loss(iL)	max 0.30 dB typ. 0.15dB
repeatability ΔIL/mating cycle	±0.1 dB
durability	500 matings /<0.20 dB typical change

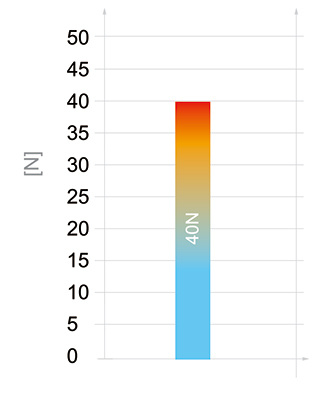

Strength of coupling mechanism	40N
operating temperature	-40 up to +85°C
alignment sleeve	ceramic
Mounting	metal wings
Gr326 Gt100 requirements	-
anti-fungus plastic	-
colors
