SC Fiber Optic Adapters With Shutters

Premium One-Piece fiber optic adapters are equipped with external or internal shutters, which guarantee protection for the eyes. Therefore, the external housing is one solid body, strengthened by a metal element. Premium One-Piece adapters with shutters are available in a simplex or duplex version, with an optional flange. Adapters for singlemode applications are equipped with a ceramic alignment sleeve and multimode with a phosphor bronze alignment sleeve.

关键词:

Classification:

Fiber Optic Adapters

Basic style products

Keyword： SC Fiber Optic Adapters With Shutters

E-mail:

jimmy.zhang@nblightyear.com

Tel:

+86-13857495516

Message

Download

Detail

Features

Æ Innovative technology “One-Piece Design” – increased side loading performance over conventional adapters.
Æ Available in a simplex or duplex version, in flange or no flange configuration.
Æ Internal or external shutter ready for eye safety.
Æ External body is strengthened by metal elements – the adapters exceed the IEC 61300-2-6 require-ments for strength of coupling mechanism.
Æ Excellent optical parameters ILTYPICAL 0.10 dB.
Æ Equipped with a metal mounting clip–possibility of mounting without screw.

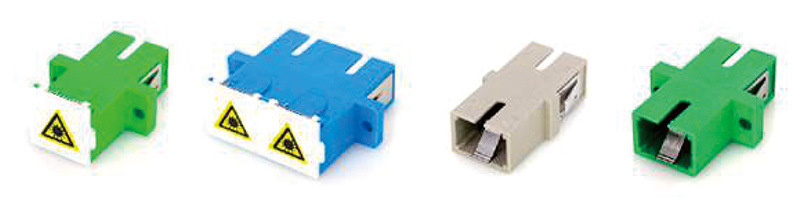

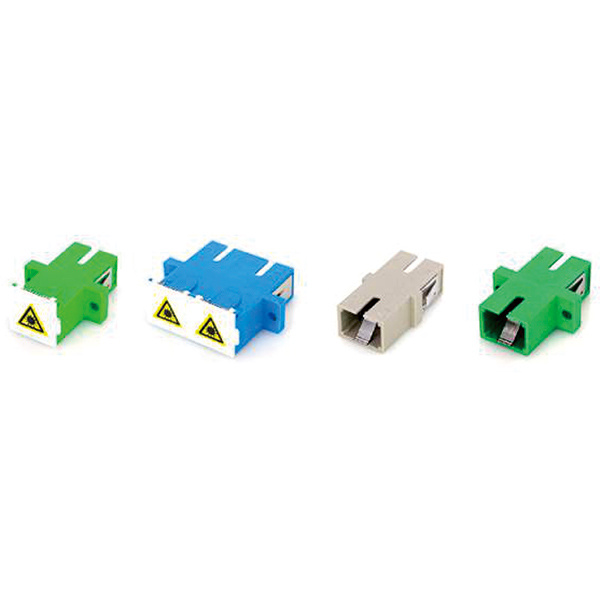

available colors

reference scheme

Series	adapter type	type	Shutter	Mounting	Sleeve	Housing cdor	dust cover color
aS20	SC	SX	1 internal	1 flange	1 ceramic	1 green	3 black
	SCA	DX	2 external	2 no flange	2 metal	2 blue
						5 beige

SC APC SM adapter, DX, Premium Super One-Piece, external
shutter, with flange, ceramic sleeve, green housing, black dust cover.

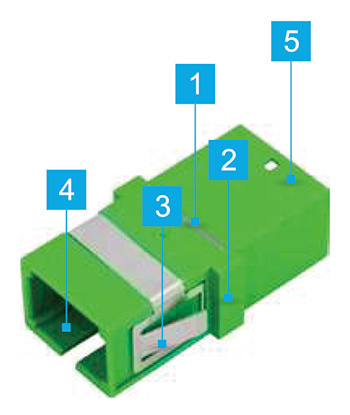

SC Premium One-Piece

1. Metal reinforcing element
2. Flange or flangeless configuration
3. Metal mounting clip
4. Optional shutter (outer or inner)
5. One-Piece solid body

Technical specifications

Parameter	Standard One-Piece

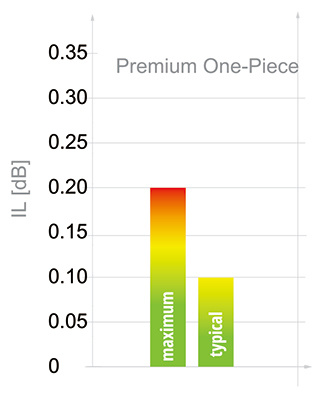

Insertion Loss(iL)	max 0.20 dB typ. 0.10 dB
repeatability ΔIL/mating cycle	± 0.08 dB

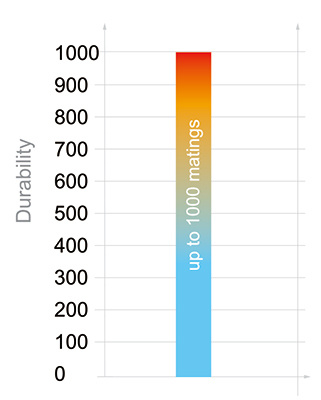

durability	1000 matings/<0.15 dB typical change

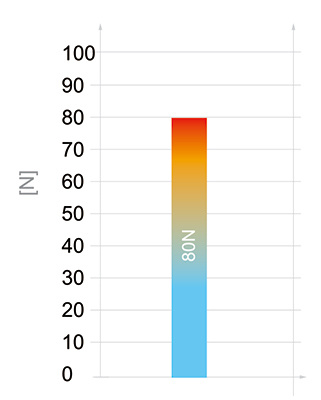

Strength of coupling mechanism	80N
operating temperature	-40 up to +85°C
alignment sleeve	ceramic/metal
Mounting	metal wings 2D
external shutter
internal shutter
Gr326 Gt100 requirements
anti-fungus plastic	-
colors
