SC fiber optic adapters

The Premium One-Piece series of SC adapters with high optical and mechanical parameters, in accordance with PN, IEC and EIA/TIA standards. An external housing is constructed as one-solid body and reinforced by a metal element, thus the adapters exceed the IEC 61300-2-6 requirements for strength of the coupling mechanism. High quality, excellent optical and mechanical parameters and high repeatability are characteristic features of the series. Adapters are available for both applications: singlemode with a ceramic alignment sleeve and multimode with a phosphor bronze alignment sleeve.

关键词:

Classification:

Fiber Optic Adapters

Basic style products

Keyword： SC fiber optic adapters

E-mail:

jimmy.zhang@nblightyear.com

Tel:

+86-13857495516

Message

Download

Detail

Features

Æ Innovative technology"One-Piece Design" increased side loading performance over conventional adapters.

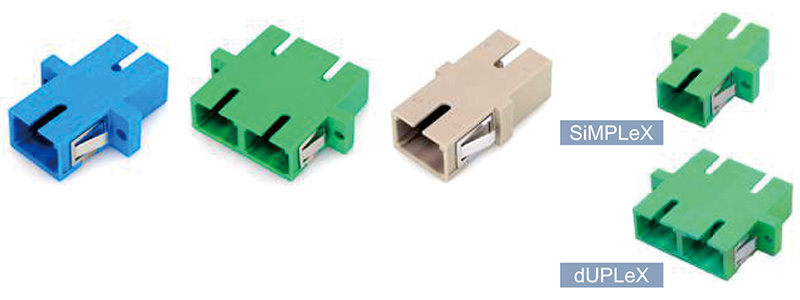

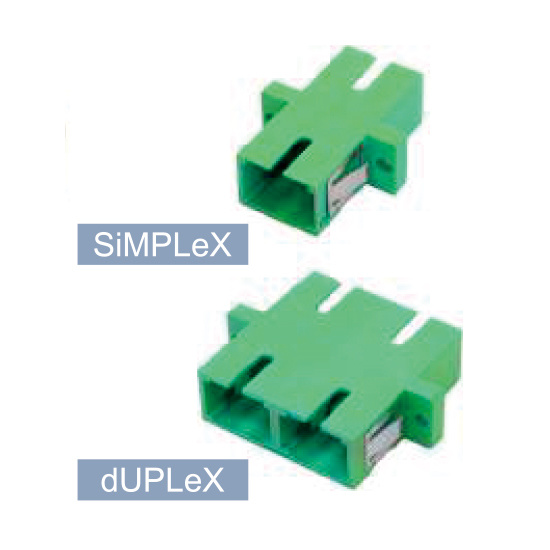

Æ Available in a simplex or duplex version,in flange or no flange configuration.
Æ External body is strengthened by metal elements the adapters exceed the IEC 61300-2-6 require ments for strength of coupling mechanism.
Æ Excellent optical parameter.
Æ High quality.
Æ Equipped with a metal mounting clip-possibility of mounting without screws.

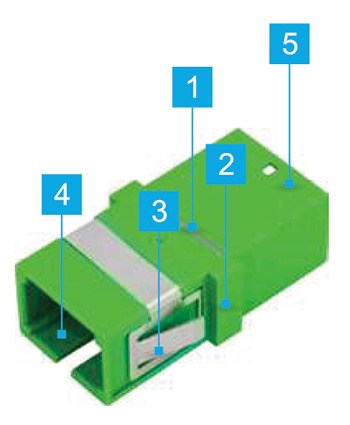

SC Premium One-Piece

1. Metal reinforcing element
2. Flange or flangeless configuration
3. Metal mounting clip
4. Optional shutter (outer or inner)
5. One-Piece solid body

available colors

Series	adapter typet	type	Mounting	Sleeve	Housing color	dust cover color
a101	SC	SX	1 flange	1 ceramic	1 green	3 black
	SCA	DX	2 no flange		2 blue
					5 beige

SC PC SM adapter, SX, Standard One-Piece, with flange, ceramic sleeve, blue housing, black dust cover.

Technical specifications

Parameter	Standard One-Piece

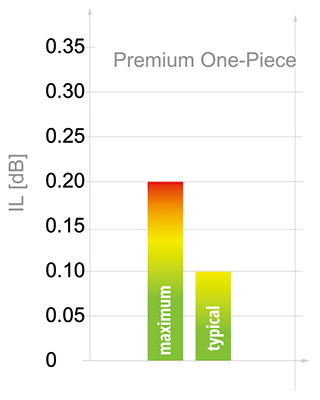

Insertion Loss(iL)	max 0.20 dB typ. 0.10 dB
repeatability ΔIL/mating cycle	± 0.08 dB

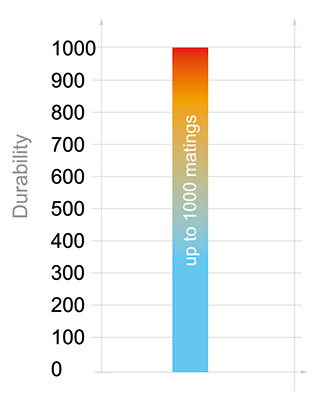

durability	1000 matings/<0.15 dB typical change

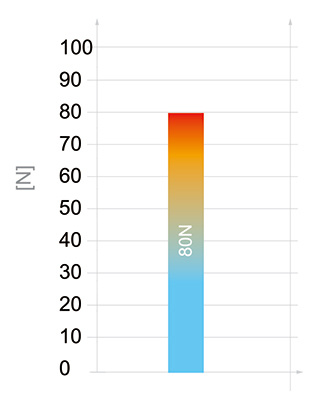

Strength of coupling mechanism	80N
operating temperature	-40 up to +85°C
alignment sleeve	ceramic/metal
Mounting	metal wings 2D
Gr326 Gt100 requirements
anti-fungus plastic	-
colors
