SC fiber optic adapters
关键词:
Classification:
Keyword： SC fiber optic adapters
E-mail:
Tel:
Detail
Features
Innovative technology “One-Piece Design”
– increased side loading performance, Equipped with a metal mounting clip, Possibility to choose a transparent or semi-trans-parent dust cover, High quality and durability, Wide range of colors - 5 colors available.

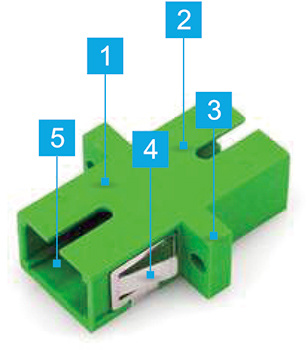

SC Standard
1.“One-Piece Design” technology
2. Housing available in 5 colors
3. Flange or flangeless configuration
4. Metal mounting clip
5.Ceramic alignment sleeve for SM and MM application

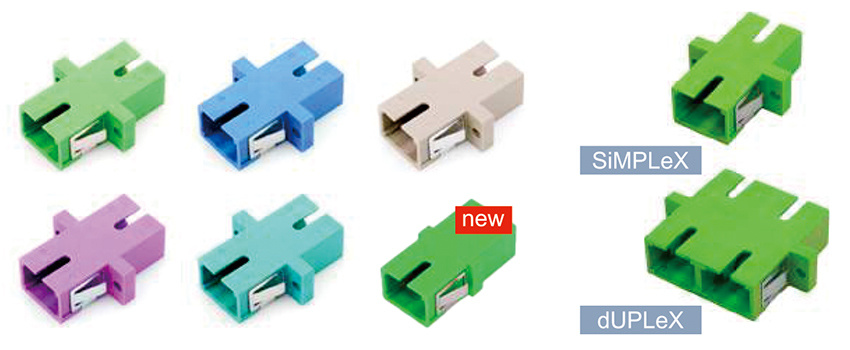

Savailable colors
reference scheme

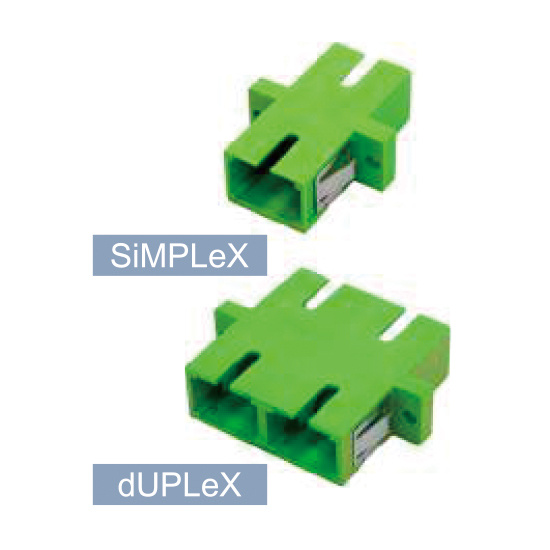

| Series | adapter typet | type | Mounting | Sleeve | Housing color | dust cover color |
| a101 | SC | SX | 1 flange | 1 ceramic | 1 green | 3 black |
| SCA | DX | 2 no flange | 2 blue | T transparent | ||
| 5 beige | S semi-transparent | |||||
| 6 aqua | ||||||
| 7 violet |
A101-SC-SX-1123 Fibrain SC PC SM adapter, SX, Standard One-Piece, with flange, ceramic sleeve, blue housing, black dust cover.
Technical specifications
| Parameter | Standard One-Piece |

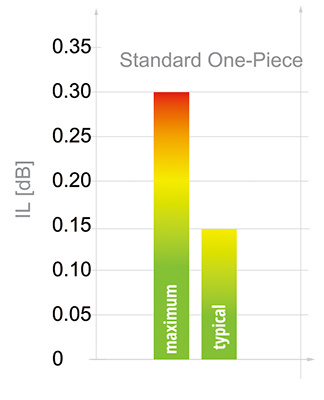

| Insertion Loss(iL) | max 0.30 dB typ. 0.15 dB |
| repeatability ΔIL/mating cycle | ± 0.10 dB |

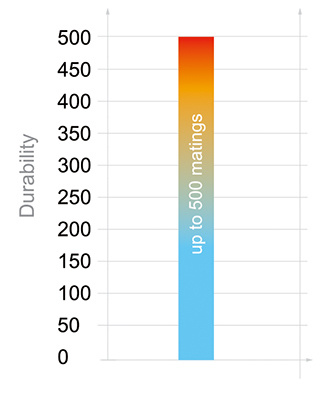

| durability | 500 matings/<0.20 dB typical change |

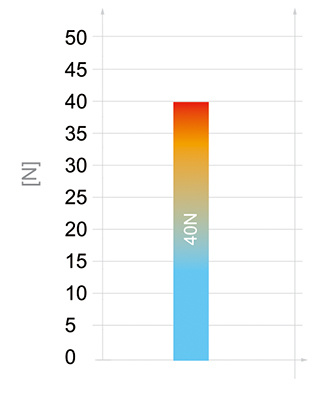

| Strength of coupling mechanism | 40N |
| operating temperature | -40 do +85°C |
| alignment sleeve | ceramic |
| Mounting | metal wings |
| Gr326 Gt100 requirements | - |
| anti-fungus plastic | - |
| colors |  |
Insertion Loss | Durability | Strength of coupling mechanism |
