Detail

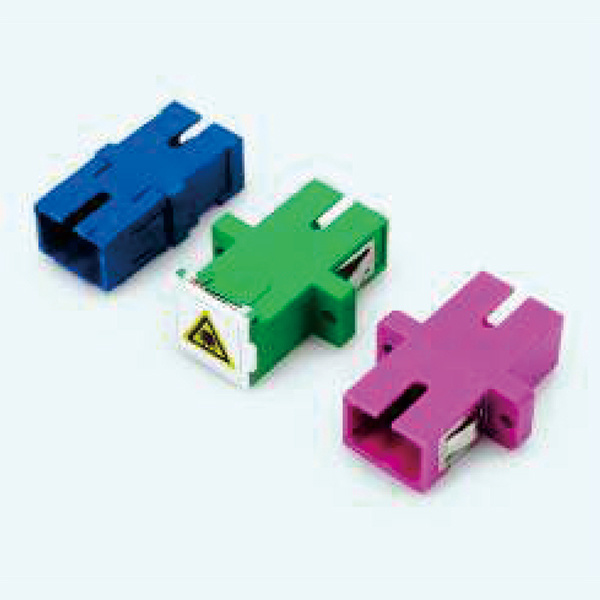

Standard One-Piece
The standard series of SC adapter family is avail able in a simplex and duplex configuration with a metal mounting clip and an optional flange.
The main characteristic of Fibrain Standard One-Piece adapters is a ceramic sleeve for a singlemode and multimode application. Adapters are available in 5 colors. Adapters can be fitted with Piece adapters is a ceramic sleeve for a single-mode and multimode application. Adapters are available in 5 colors. Adapters can be fitted with a transparent or semi-transparent dust cup.
Premium One-Piece
Series of SC fiber optic adapters with improved optical and mechanical performance. The external housing has been reinforced with a metal element, thus adapters exceed the IEC requirements of the strength of coupling mechanism. Adapters are available in a simplex and duplex configuration with an optional flange in 3 colors. The design has proved increased side loading performance over conventional adapters. The Premium One-Piece series can offer adapters with an external or internal shutter.
Premium Super One-Piece
Series of SC adapter family with the highest optical and mechanical parameters. The ‘super one-piece design’ of housing includes integrated non metallic panel clips and 4 anti-rattle wings, which significantly reduce movement when snapped into a panel. Adapters are avail-able in a simplex and duplex configuration, in both flange and no flange version.
The Premium Super One-Piece series is constructed from anti-fungus material with the UL94-V0 flammability index. Adapters are available in 4 colors. There is also version with an inner shutter.
Technical specifications
| Parameter | Standard One-Piece | Premium One-Piece | Premium Super One-Piece |
| Insertion Loss(iL) | max 0.30 dB typ. 0.15 dB | max 0.20 dB typ. 0.10 dB | max 0.20 dB typ. 0.08 dB |
| repeatability ΔIL/mating cycle | ± 0.10 dB | ± 0.10 dB | ± 0.10 dB |
| durability | 500 matings/<0.20dB typical change | 1000 matings/<0.15dB typical change | 1000 matings/<0.15dB typical change |
| Strength of coupling mechanism | 40N | 80N | 80N |
| operating temperature | -40 up to +85°C | ||
| alignment sleeve | ceramic | ceramic/metal | ceramic/metal |
| Mounting | metal wings | metal wings 2D | plastic wings 4D |
| external shutter | - |  | - |
| internal shutter | - |  | |
| Gr326 Gt100 requirements | - |  | |
| anti-fungus plastic | - | - | |
| colors |  |  |  |
Types of adapters in each series
| Parameter | Standard One-Piece | Premium One-Piece | Premium Super One-Piece |
| Simplex | | | |
| Duplex | | | |
| Flange | | | |
| No flange | | | |
| Metal mounting clip | | | - |
| Plastic mounting clip | - | - | |
| External shutter | - | - | |
| Internal shutter | - | |

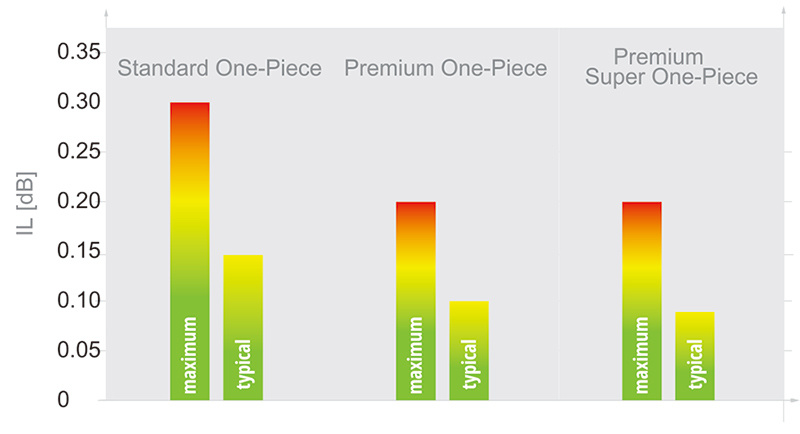

SC Adapters - nsertion| Loss
