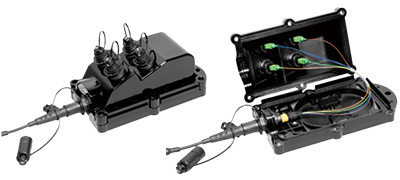

FTTX Enclosure
关键词:
Classification:
Keyword： FTTX Enclosure
E-mail:
Tel:
Detail
Features
High compatibility:can be assembled ODVA , H connector (OptiTap compatible),
Mini SC, ODC, PTLC, PTMPO or power adapter.
Factory-sealed or field assembly.
Ip68 water and dust protection
Strong enough: working under 1200N pulling force long term.
From 2 to 12 ports for single or multifiber harsh connectors.
Available with PLC or splice splice sleeve for fiber divide.
Ip68 waterproof rating.
Wall-mounting, aerial installation or holding pole installation.
Decreased angle surface and height make sure no connector interfering when operating.
Meet IEC 61753-1 standard.
Cost effective: save 40% operating time.
Application
FTTH field
FTTH field
Trunk cable connecting
Prospecting or military communication
FTTX Enclosure is a new economic fiber distributed solution for outdoor use. compare traditional products, FTTX Enclosure is easy to operate and has high compatibility, It can be used for wall-mounting, aerial installation or holding pole installation, based on different situation. FTTX enclosure not only used in FTTH field, but also used in FTTA or other harsh environ ment.
Configuration
| Standard | Optional | |
| Input Hole | PG13.5 | MINI SC,H connector(Optitap), MINI IPMPO, ODVAor Customized |
| Output Hole | MINI SC,H connector | MINI SC,H connector(Optitap), MINI IPMPO, ODVA or Customized |
| Extend Hole | Closed | MINI SC,H connector(Optitap), MINI IPMPO, ODVAor Customized |
 |  |

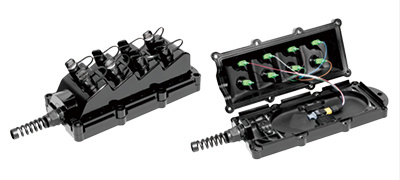

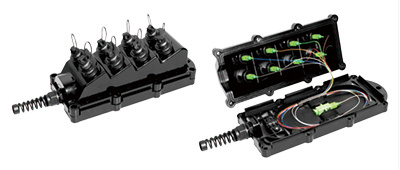

| FTTX Enclosure with PLC Connection Project | |
 |  |

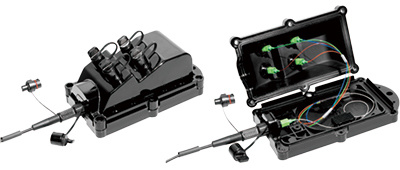

| FTTX Enclosure with Bundle Connection Project | |
 |  |

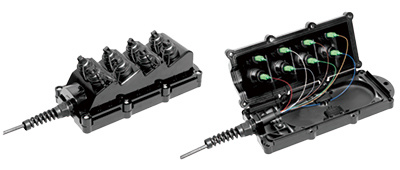

| FTTX Enclosure with MPO Connection Project | |
Product Parameters
| Dimensions(LxWxH) | 200x120x85mm (4Core) | 280x120x85mm (8Core) |
| Ingress Protection | Ip68 | |
| Working Temperature | -40~85℃ | |
| Cable Strength Member | Armoured or Non-armoured | |
| Cable Type | Hybrid or non-hybrid | |
| Round Cable OD | 5. 0mm to 14. mm | |
| Flat Cable Dimension | 4.6x8. 9mm | |
| Cable Jacket Material | LSZH, PE or TPU | |
| Bending Radius | 20D | |
| Cable Crush Resistance | 200N/cm long term | |
| Tensile Strength | 1200N long term | |
| UV Resistance | ISO 4892-3 | |
| Fire Protection Rating | UL94-V0 | |
| Number of PLC | 1 to 2 pcs | |
| Number of Fusion Protection Steeve | 1 to 24pcs | |
