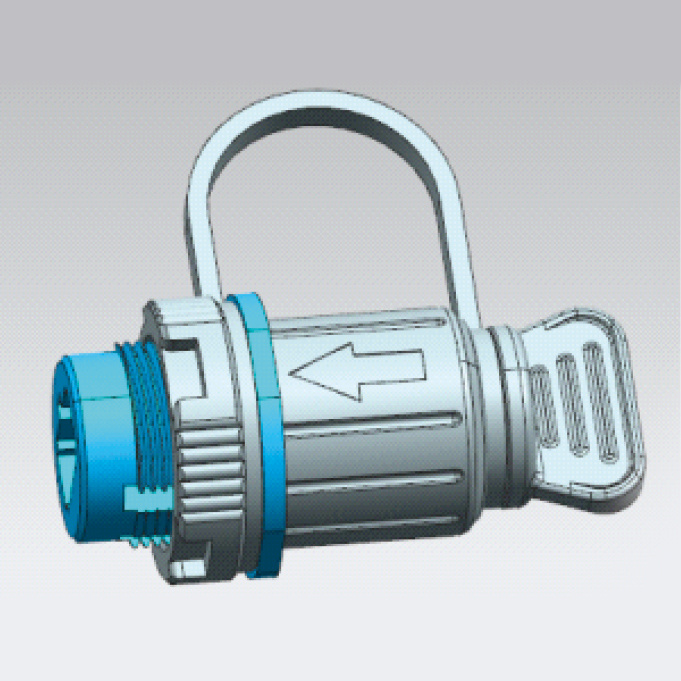

REINFORCED ADAPTER A
2. This reinforced adapter can be applied to a variety of conventional prefabricated SC pigtail and jumper, make sure the pigtail and jumper are the prefabricated plugs before using it. After inserting the optical fiber reinforced connector in, rotates and there is a bayonet fixing, with the function of anti-pull.
3.IP65
关键词:
Classification:
Keyword： REINFORCED ADAPTER A
E-mail:
Tel:
Detail
1. Product Main Characteristic:
1 .Assembled on the box, with optical fiber prefabricated in the box, can complete connect to the fiber without opening the box.
2. This reinforced adapter can be applied to a variety of conventional prefabricated SC pigtail and jumper, make sure the pigtail and jumper are the prefabricated plugs before using it. After inserting the optical fiber reinforced connector in, rotates and there is a bayonet fixing, with the function of anti-pull.
3.IP65
| ITEM | Specifications |
| Applicable adapter type | SC/APC |
| Adapter fiber type | Single mode |
| Test wavelength | 1310nm,1550nm |
| Insertion loss | Typical data ≤0.15dB, Data≤0.20dB |
| Repeatability | ≤0.10dB |
| Interchangeability | ≤0.20dB |
| Plug performance | Insert and remove of 1000 times the data ≤0.20dB |
| Number of channels | Single mode |
| Frame material | Plastic |
| Sleeve material | Ceramics |
| Operating temperature | -20°C to +70°C |
| Storage temperature | -40°C to +85°C |
Fiber connector installation:
Pic 6 Rotate the arrow part of fiber connector
counterclockwise and take out the dust cap.

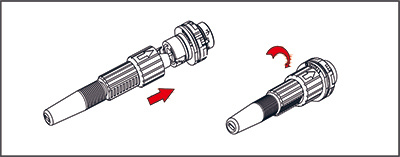

REINFORCED ADAPTER APic7 The arrow part of fiber
connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.
