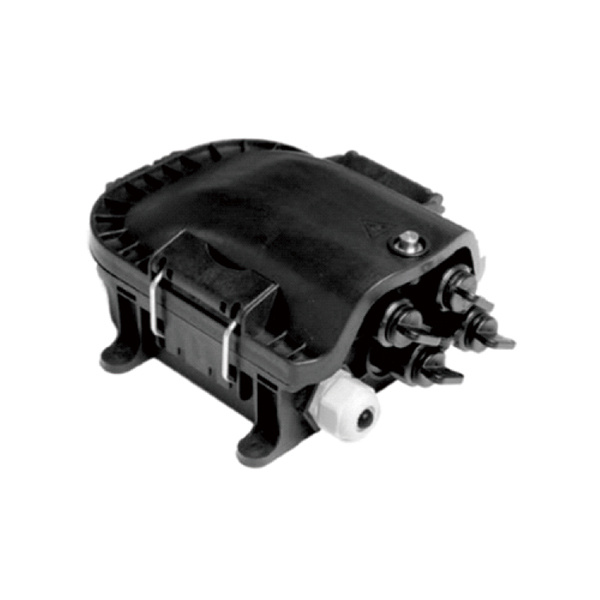

Mini-IP-Outdoor-Closure-(GFS-4X)
The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
关键词:
Classification:
Keyword： Mini-IP-Outdoor-Closure-(GFS-4X)
E-mail:
Tel:
Detail
Features
1. Total enclosed structure.
2. Material: PP, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP68.
3. Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
4. Cable, pigtails, and patch cords are running through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.
5. Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor use.
Application
1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH.
3.Deployment in Remote Radio Head cell tower applications.
1. Description:
The equipment is used as a termination point for the feeder cable
to connect with drop cable in FTTx communication network system.
The fiber splicing, splitting, and distribution can be done in this box,
and meanwhile it provides solid protection and management for the FTTx network building.
2. Specification:
1. Environmental requirement
Working temperature: -40℃～+85℃
Relative humidity: ≤85% (+30℃)
Atmospheric pressure: 70KPa~106Kpa
2. Main technical datasheet
Insertion loss: ≤0.15dB
UPC return loss: ≥50dB
APC return loss: ≥60dB
3. Thunder-proof technical datasheet
The insulation resistance between the grounding device and the metal parts of the box is no less than 2410´410´MΩ/500V (DC); IR≥2410´410´MΩ/500V.
The voltage resistance between the grounding device, and the box and its metal parts is no less than 3000V (DC)/min, no puncture, no flashover; U≥3000V
4. Configuration table:

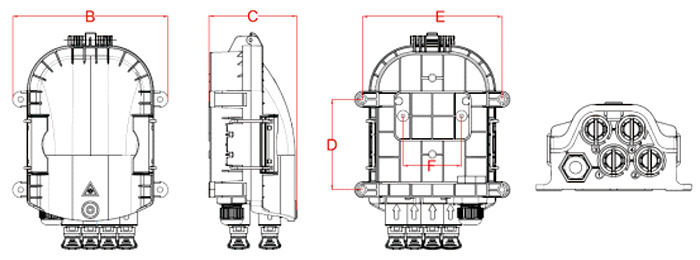

| Model | Description | Size (Pic1) A*B*C | Max Capacity | Installation Size(Pic2) | Into the largest cable diameter (mm) | |
| D*E | F | |||||
| GFS-4X | Splitter Box | 168*138*78 | 1*4 PLC | 81*124 | 52 | 10 |
