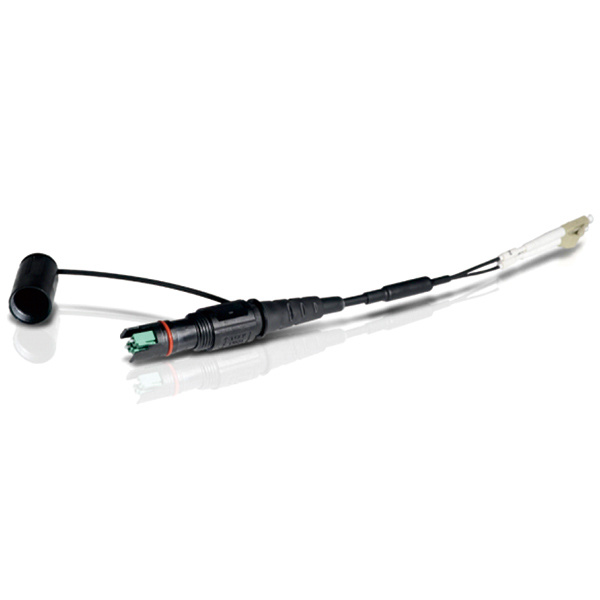

Mini IP LC Cable

Connector Types
Type Reference Note
LC IEC 61754-20
Single mode duplex
APC: Green connectors
UPC: Blue connectors
Multimode duplex UPC: Grey Connectors

关键词:

Classification:

MINI IP Outdoor Closure & Cable

Basic style products

Keyword： Mini IP LC Cable

E-mail:

jimmy.zhang@nblightyear.com

Tel:

+86-13857495516

Message

Download

Detail

Features

1.Cost effective solution for in house termination.
2.Low insertion loss and added loss.
3.Height of attenuation.
4.IP67 water, dust proof and corrosion resistant
5.The material in the jumper cable are all-weather and UV-resistant.
6.Mechanical performance: IEC 61754-20
7.RoHS and REACH materials compliant.

Application

1.Multi-purpose Outdoor.
2.For connection between distribution box and RRH.
3.Deployment in Remote Radio Head cell tower applications.

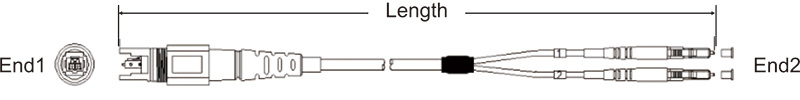

1. Mini IP LC Outdoor Cable Assemblies

2. Optical Characteristics

Item	Parameter		Reference
Item	Single mode	Multimode	Reference
Insertion loss	Typical value≤0.15dB；Maximum≤0.3	Typical value≤0.15dB；Maximum≤0.3	IEC 61300-3-34
Return loss	≥ 60dB (APC) ；≥ 50dB (UPC)	≥30dB(UPC)	IEC 61300-3-6

3. Mechanical Characteristics

Test	Conditions	Reference
Endurance	500 matings	IEC 61300-2-2
Vibration	Frequency: 10 to 55Hz, Amplitude: 0.75mm	IEC 61300-2-1
Cable retention	400N (main cable); 50N (connector part)	IEC 61300-2-4
Strength of coupling mechanism	80N for 2 to 3mm cable	IEC 61300-2-6
Cable torsion	15N for 2 to 3mm cable	IEC 61300-2-5
Fall	10 drops, 1m drop height	IEC 61300-2-12
Static lateral load	1N for 1 h (main cable); 0.2N for 5min (ranch part)	IEC 61300-2-42
Cold	-25°C, 96h duration	IEC 61300-2-17
Dry heat	+70°C, 96h duration	IEC 61300-2-18
Change of temperature	-25°C to +70°C, 12 cycles	IEC 61300-2-22
Humidity	+40°C at 93%, 96h duration	IEC 61300-2-19
