Mini-IP-Drop-Cable-(SC)
关键词:
Classification:
Keyword： Mini-IP-Drop-Cable-(SC)
E-mail:
Tel:
Detail
Features
1.Cost effective solution for in house termination.
2.Low insertion loss and added loss.
3.Height of attenuation.
4.IP67 water, dust proof and corrosion resistant
5.The material in the jumper cable are all-weather and UV-resistant.
6.Mechanical performance: IEC 61754-4 standard.
7.RoHS and REACH materials compliant.
8.Cable diameter Range: 2.0*3.0mm, 2.0*5.0mm, 3.0mm.
Application
Fiber optic communications in harsh outdoor environments
Outdoor communication equipment connection
waterproof fiber equipment SC port
Remote wireless base station
FTTx wiring project

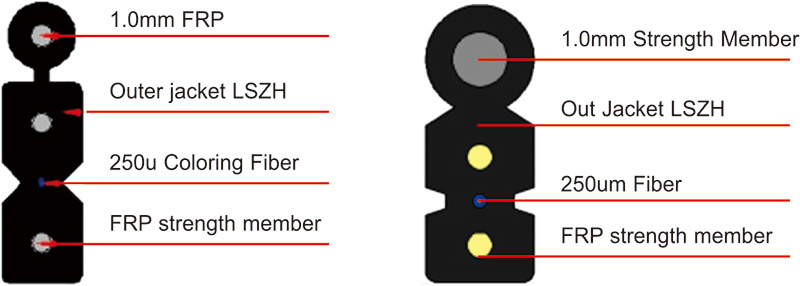

1. Cable Structure

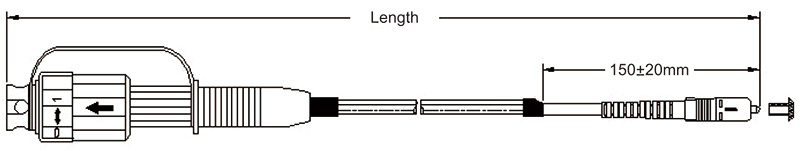

2. IPSC/APC 2.0*5.0mm Cable Assemblies
3. Cable Parameters
| Cable Count (F) | Out sheath Diameter (MM) | Weight (KG) | Minimum allowable Tensile Strength (N) | Minir al Io供 Crush (N/10 | num 「able Load Dmm) | Minimum Bending Radius (MM) | Storage temperature (°C) | ||
| short term | long term | short term | long term | short term | long term | ||||
| 1 | (2.O±O.2)x(5.O±O.3) | 21.7 | 400 | 200 | 2200 | 1000 | 20D | 10D | -20~+60 |
4. Optical Characteristics
| Item | Parameter | Reference | |||
| Single mode | Multi mode | ||||
| Standard | Elite | Standard | Elite | ||
| Insertion loss (Typical) | ≤ 0.30dB | ≤ 0.20dB | ≤ 0.5dB | ≤ 0.20dB | IEC 61300-3-34 |
| Insertion loss (Max) | ≤ 0.75dB | ≤0.35dB | ≤ 0.75dB | ≤ 0.35dB | |
| Return loss | ≥ 50dB (PC)/ ≥ 60dB (APC) | ≥ 55dB (PC)/ ≥ 65dB (APC) | ≥ 30dB (PC) | ≥ 30dB (PC) | IEC 61300-36 |
