Futureproof Solutions for Fibre Optic Network Deployment

Background

     Originated in UK in 1982

     Invented by BT, popularized in Europe, North America and Asian-Pacific region

     Lower the initial investment and raise the working efficiency

     Based on the advantages of blowing technologies, so many solutions roll up.



Microduct Bundles

   Direct Buried (DB)

   Direct Install  (DI)

   Direct Buried Reinforced (DBR)

   Termite Resistant (DBT)

   Petrochemical Resistant (DBP)

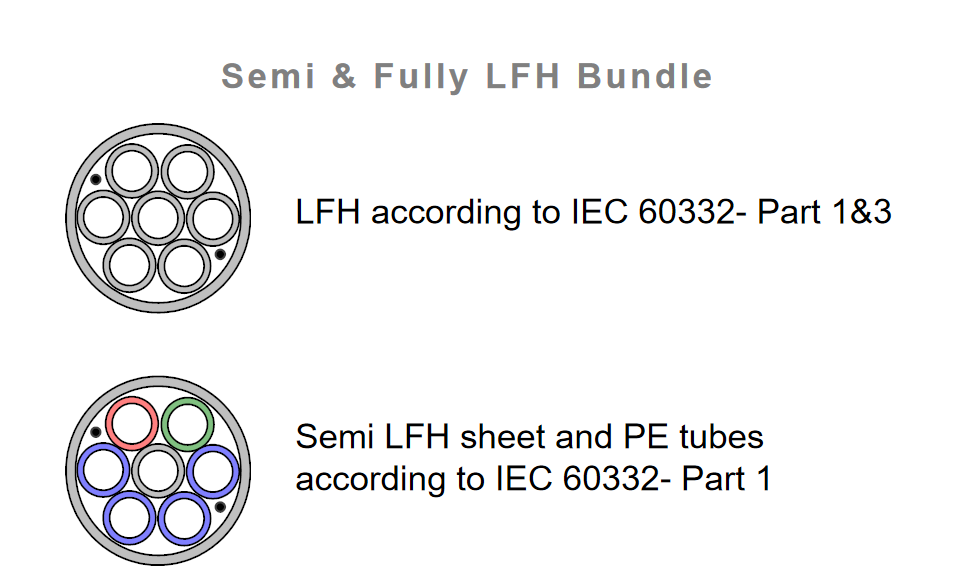

   Low Fire Hazard (LFH)

   Self Supporting (SS)

 Primary Tube Sizes (mm)

     3/2.1, 5/3.5, 8/6, 10/8, 12/10

 Assembly Range

     1,2,4,7,12,19 & 24

Minicable for Backbone Solution

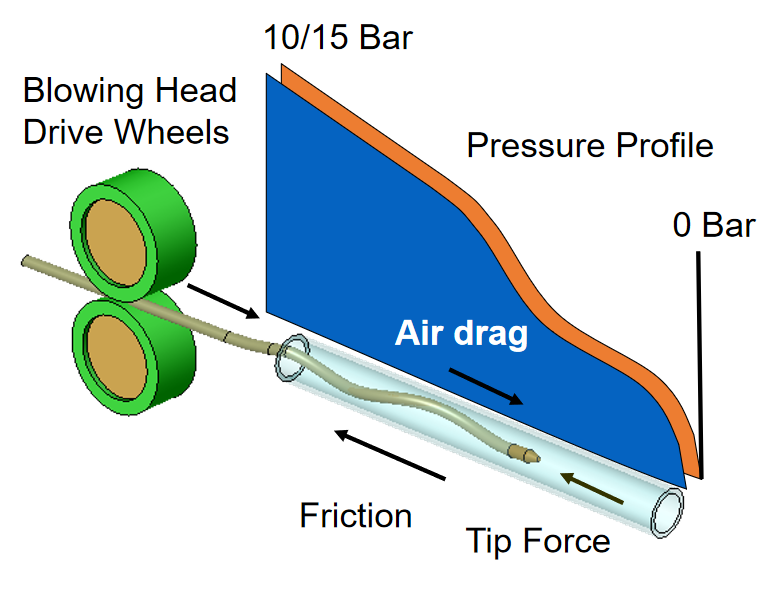

Optical mini cable for installation into microducts by blowing using air at pressures up to 15 bar using industry standard equipment.

   Low friction for improved installation performance

   Ripcord provided for quick and easy sheath removal

   Individually colour coded loose tubes for easy identification

   Dry core with water swellable elements. Gel-filled loose tube.

Fibre Unit

Total Solution 1    Minicable Blowing for Backbone



Savings Come From

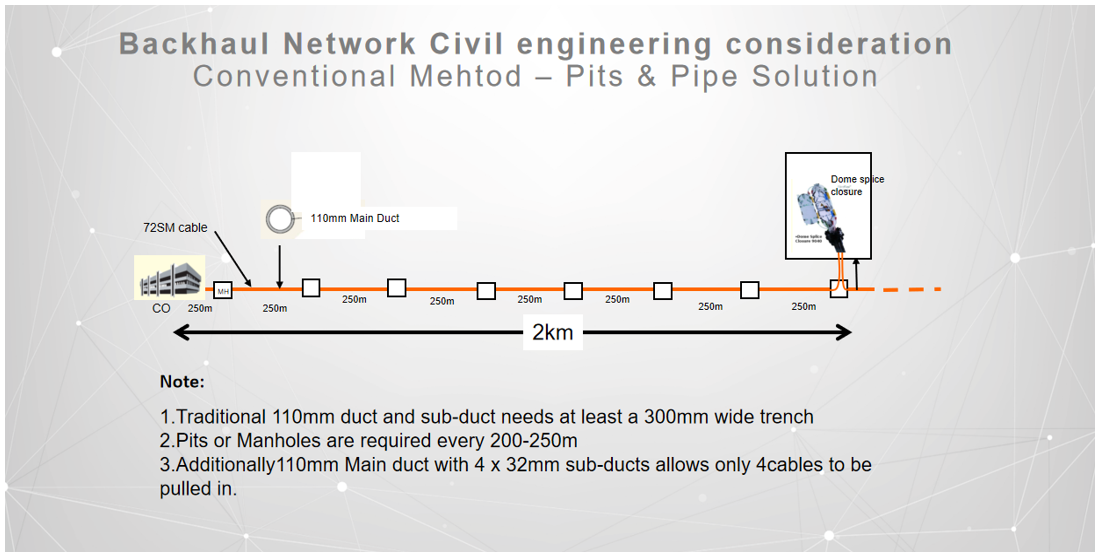

   Saving at least 2 manholes per km

   Speed of cable installation, time saving. Reduced by 70%. 6 to 8km of cable can be installed per day.

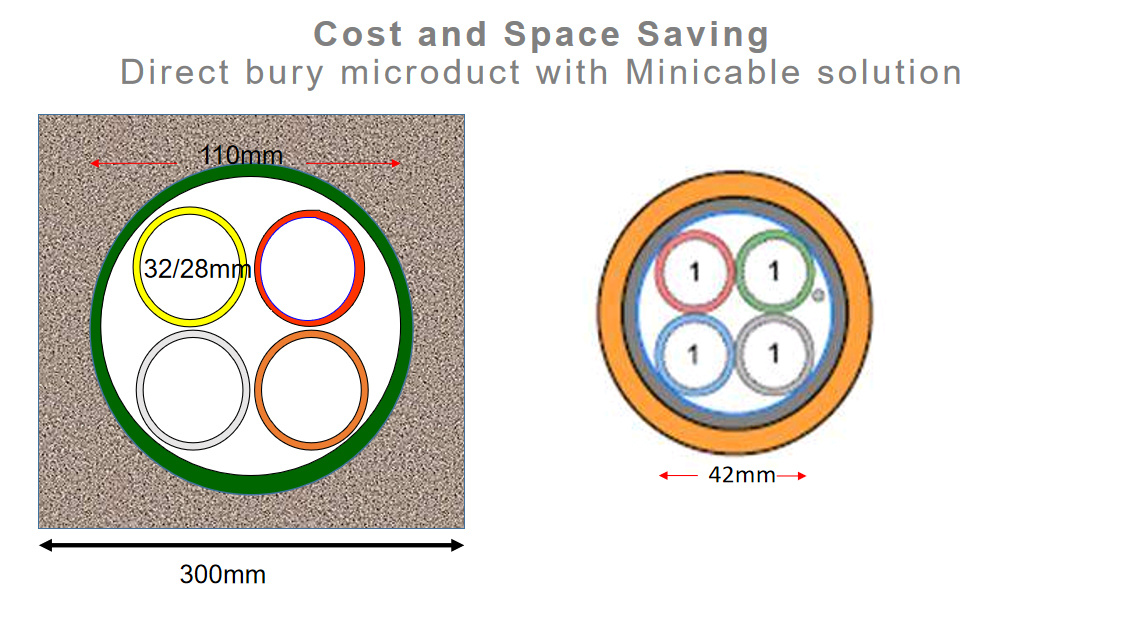

   Trench size reduced so cost of trenching reduced Micro trenching can add to the cost saving

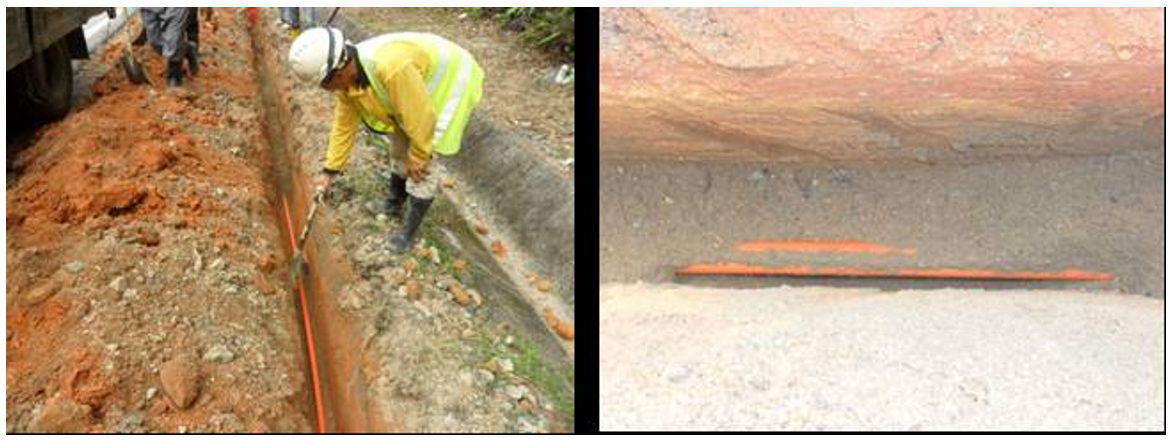

Direct Buried Open Trench

Horizontal Directional Drilling-HDD

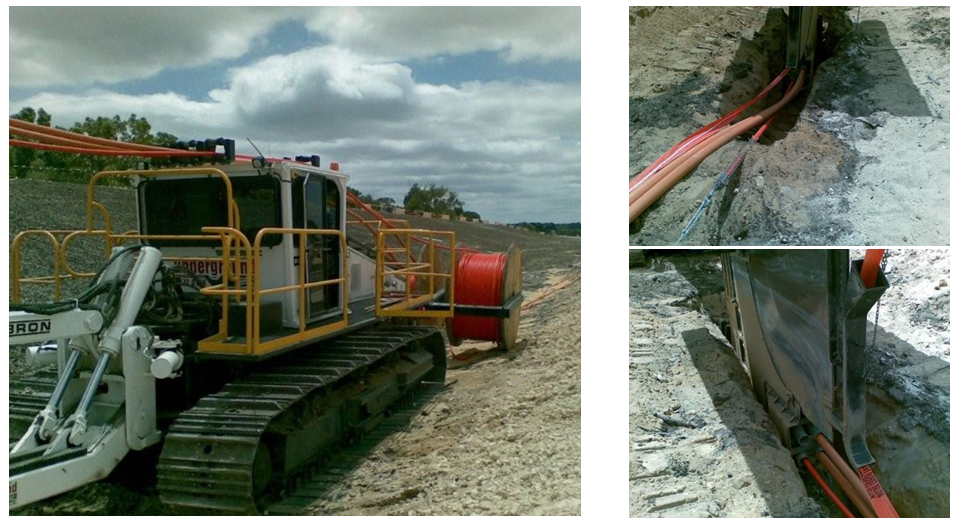

Mole Ploughing

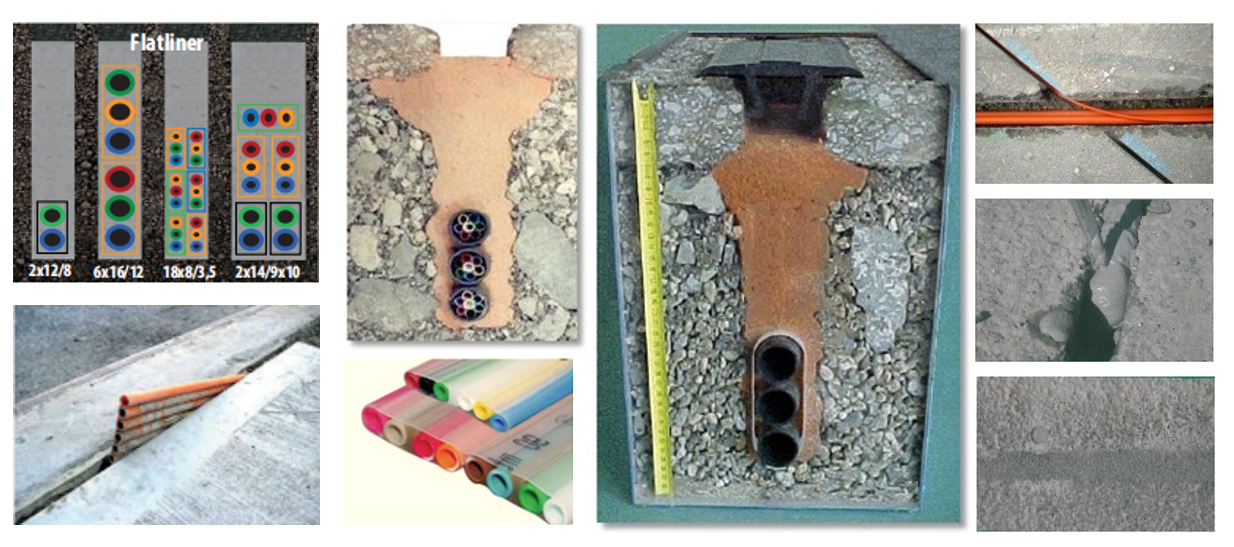

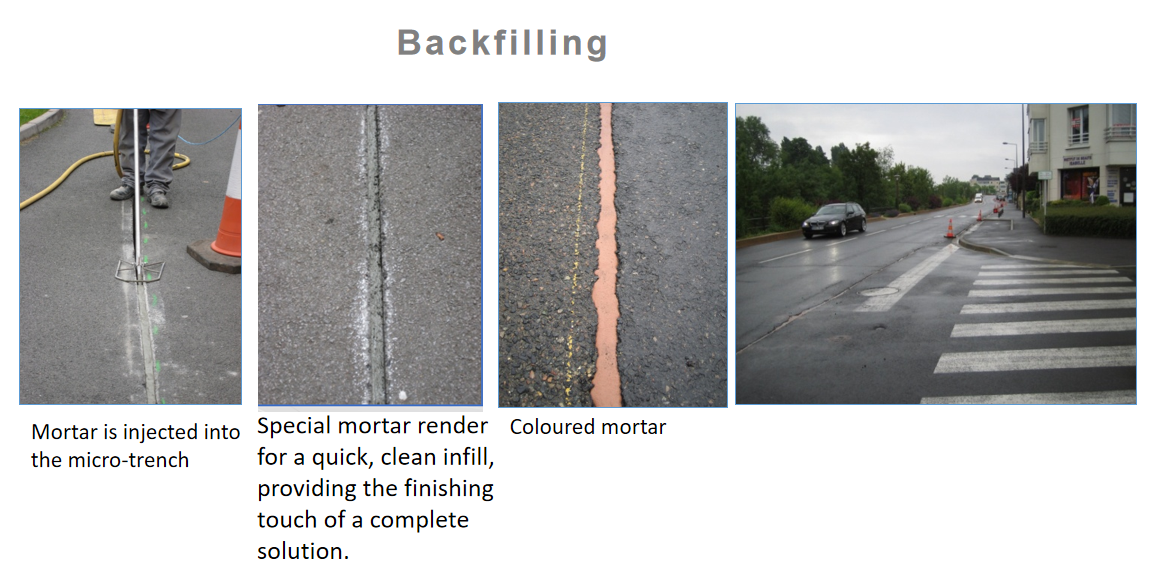

Micro Trenching

Manhole requirement for Minicable Solution

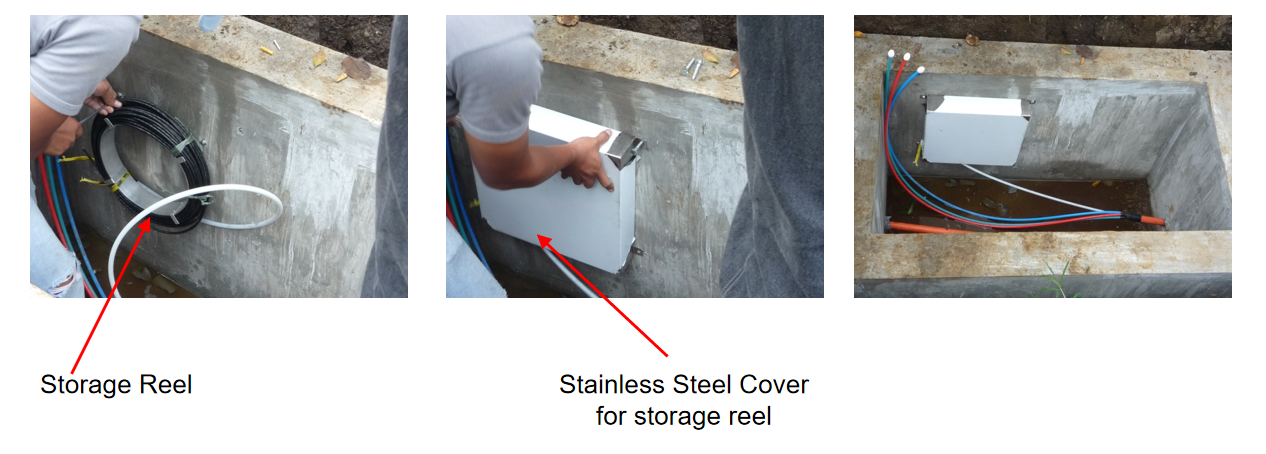

Minicable Storage Reel Installation

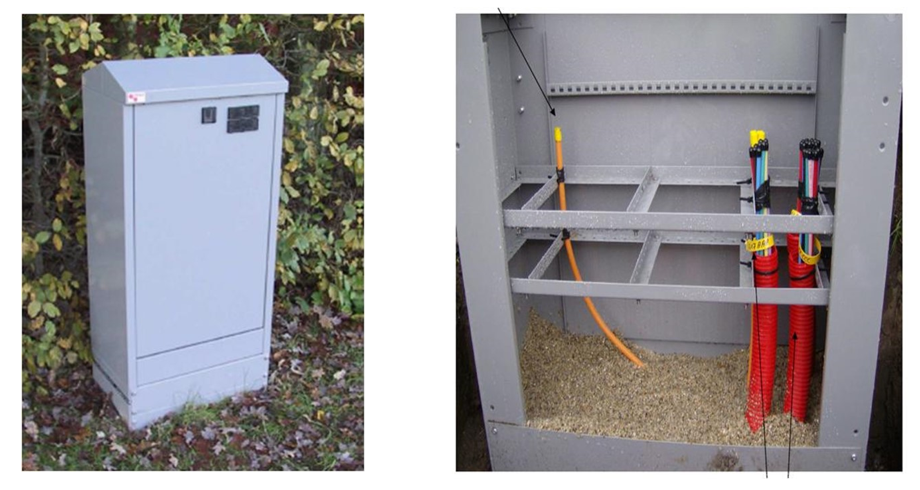

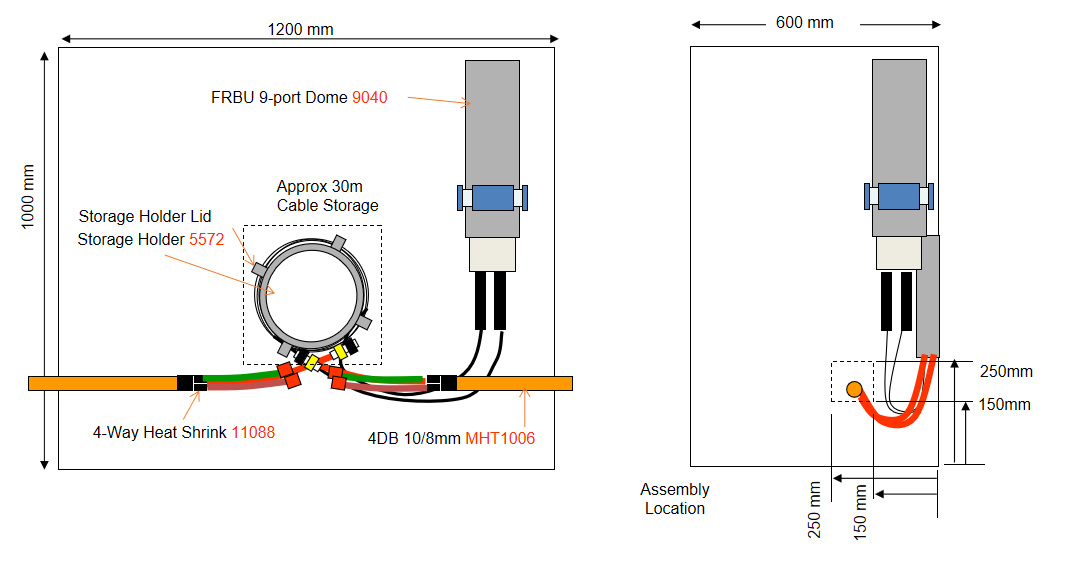

Road Side Cabinet

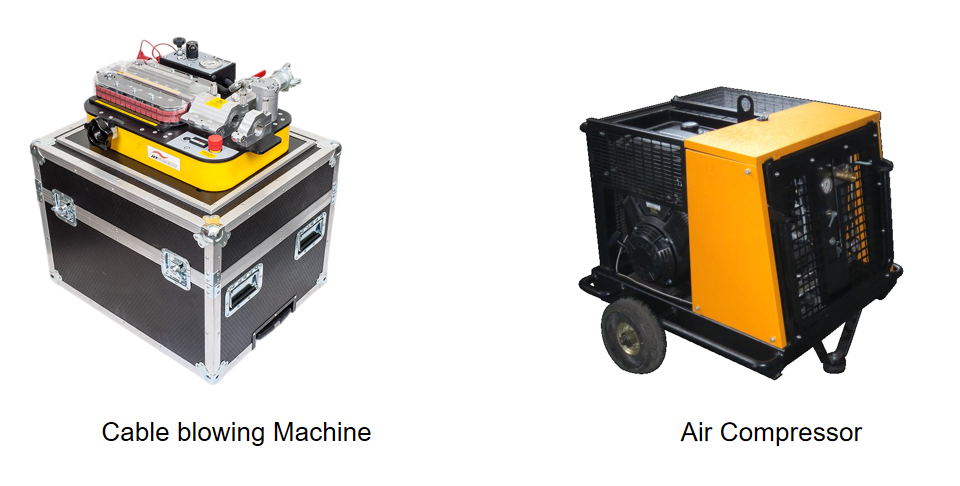

Minicable Blowing Machines

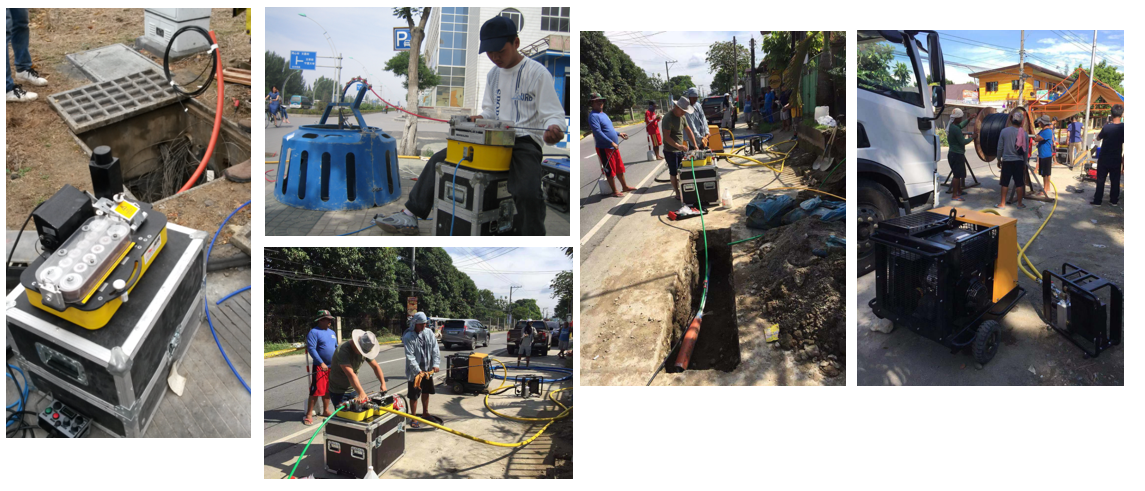

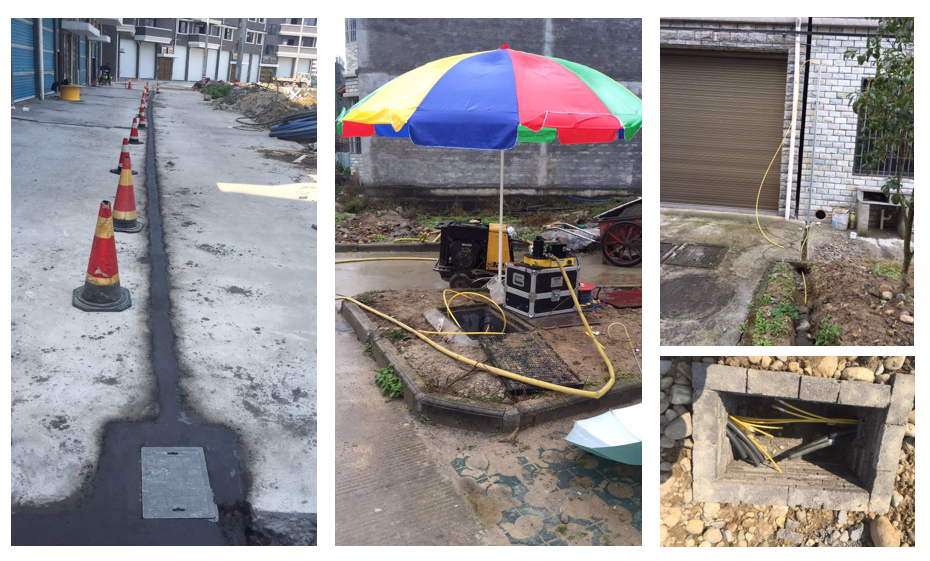

In site construction pics

Total Solution 2     Fibre Unit Blowing in the last mile            &access network

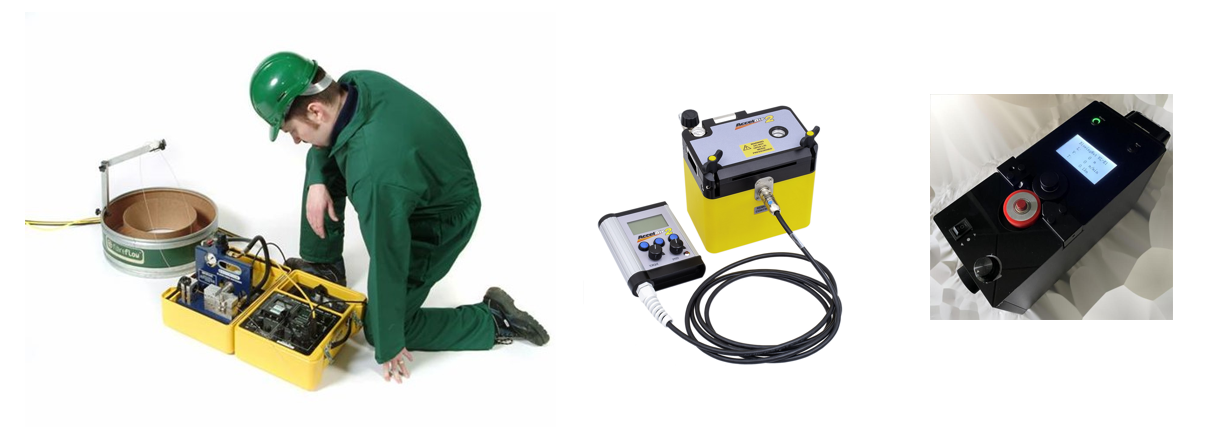

Blown Fibre Installation Equipment

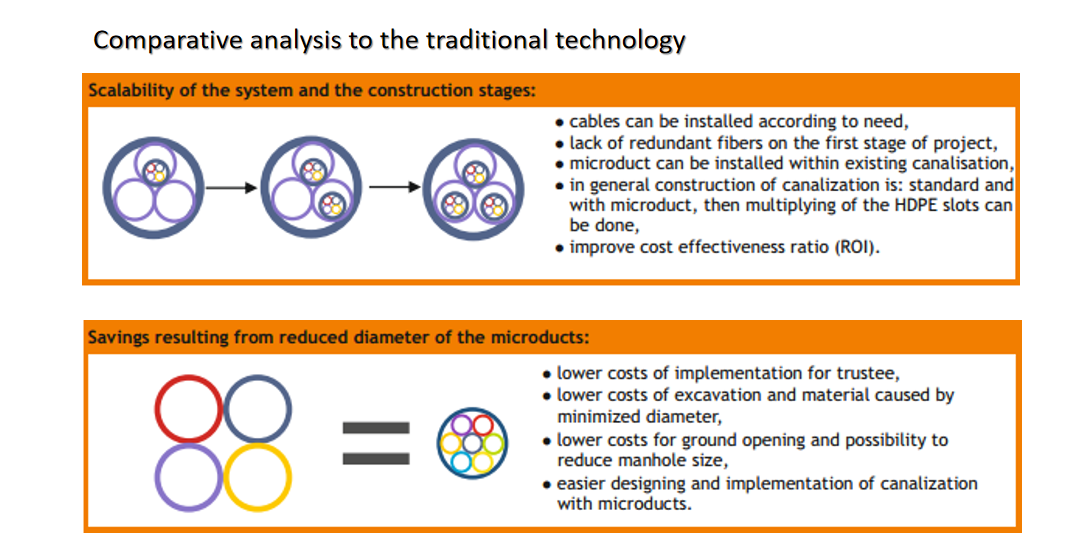

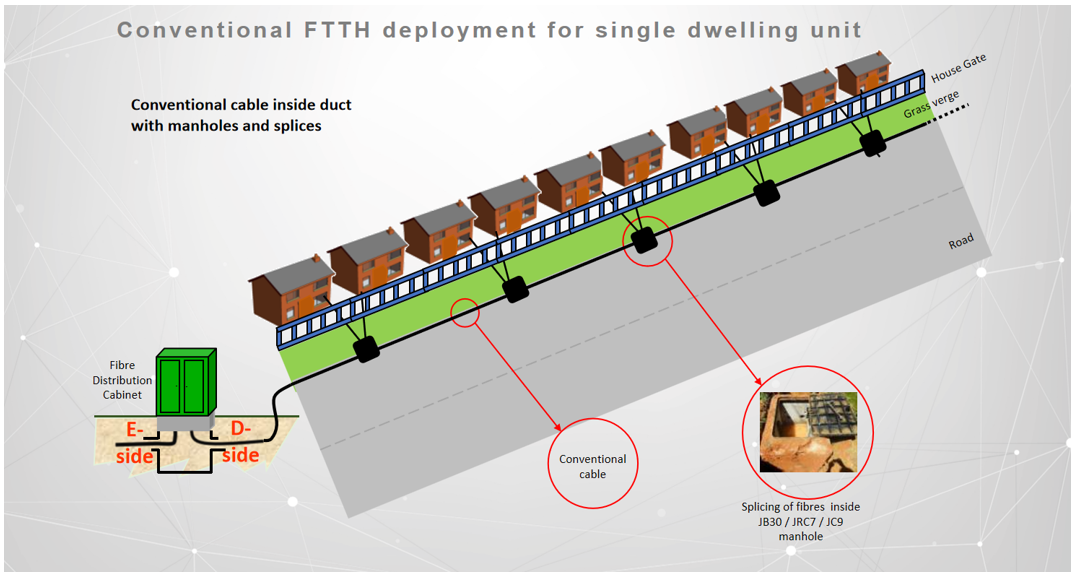

System Advantages Compare to Conventional Cable

   Point to Point Fibre without splicing

   Deferred Fibre Expenditure, Reduced Initial Investment

   Increased Installation Distances, Less Fibre Splices

   Push Fit Connector System, Rapid Fibre Deployment

   Space Saving in Duct Networks

   Lower Cost closures

   Network Design Flexibility

   Reduces fibre damage risk at time of installation, tube first fibre later

   Can easily be upgraded, fibre counts & fibre types

   Your futureproof optical fibre network solution

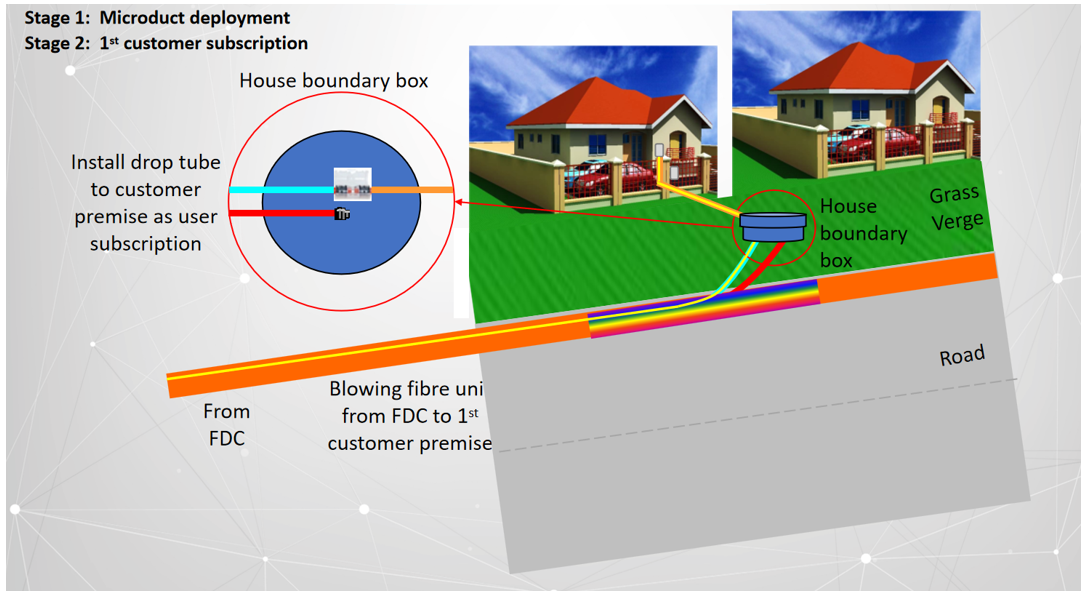

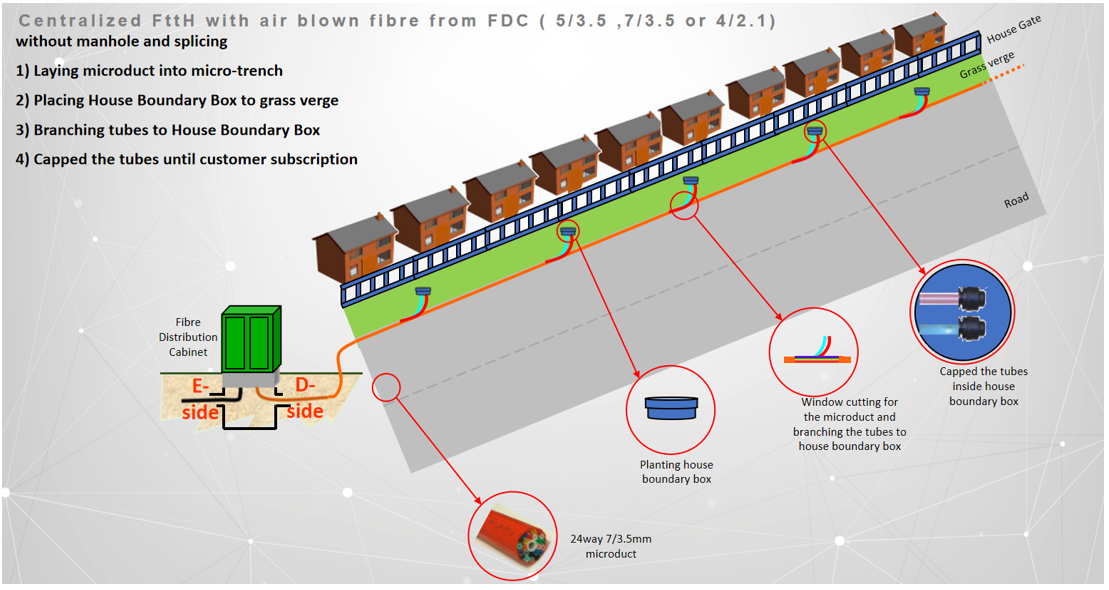

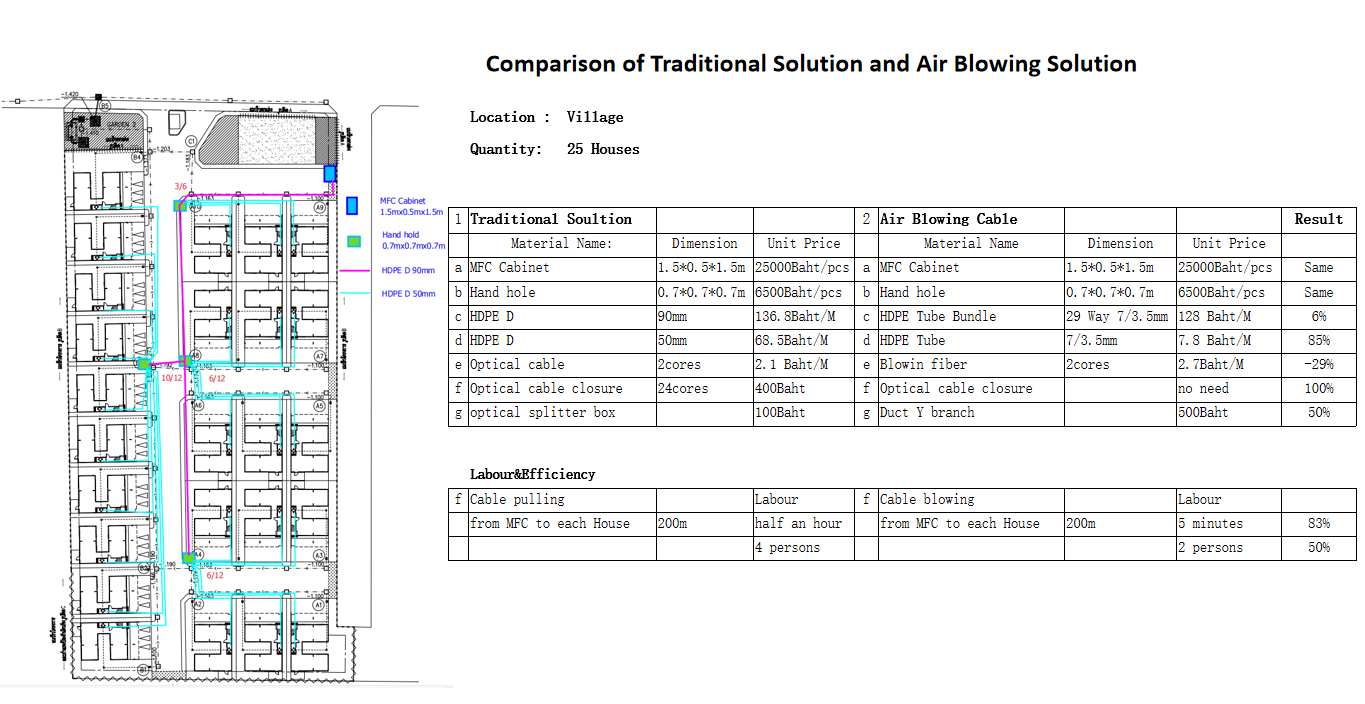

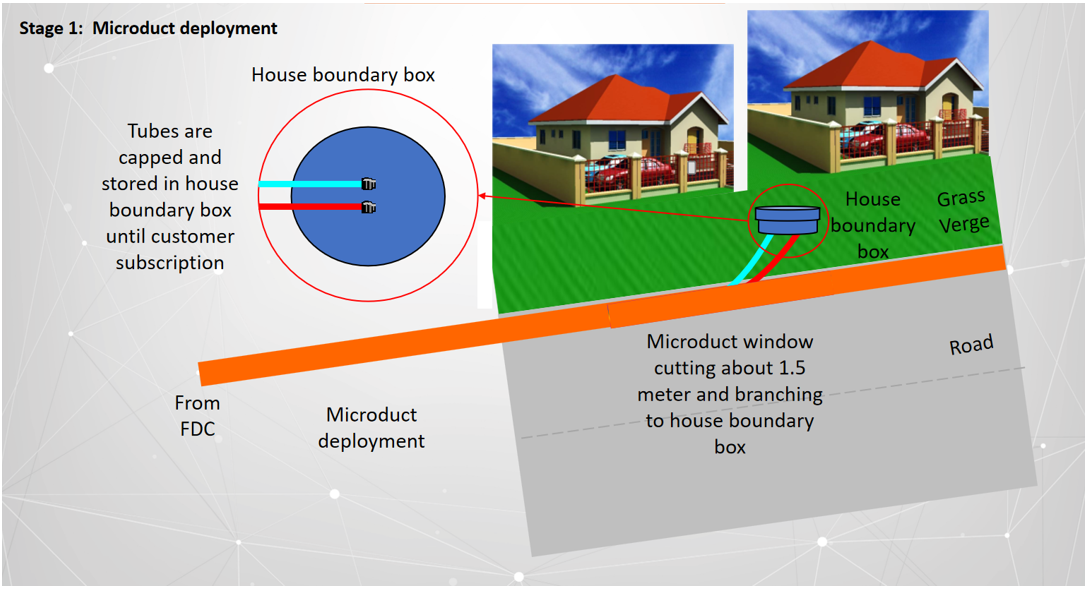

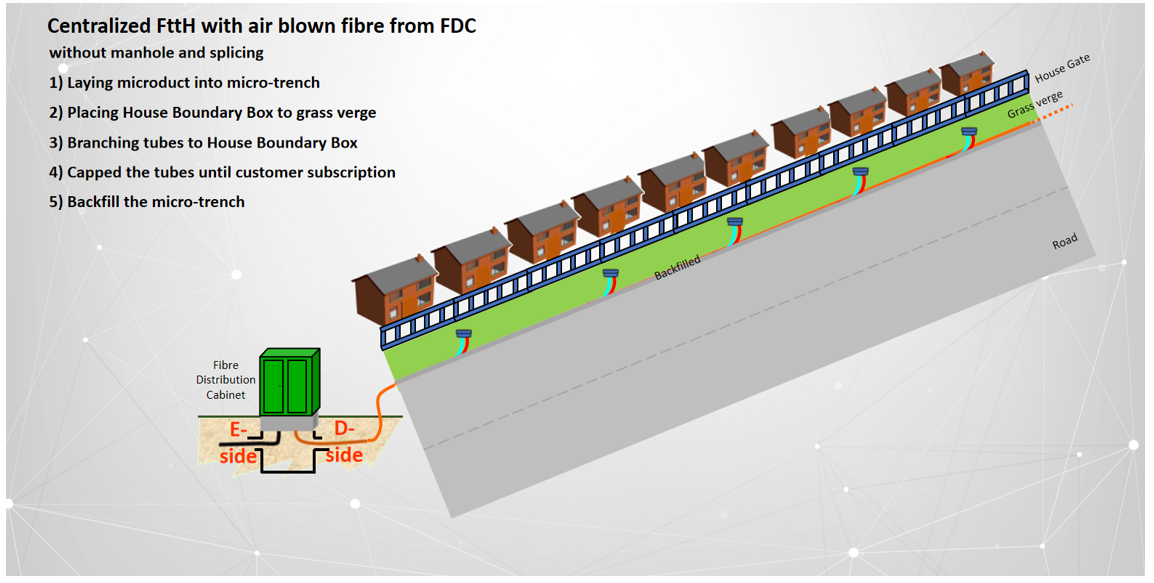

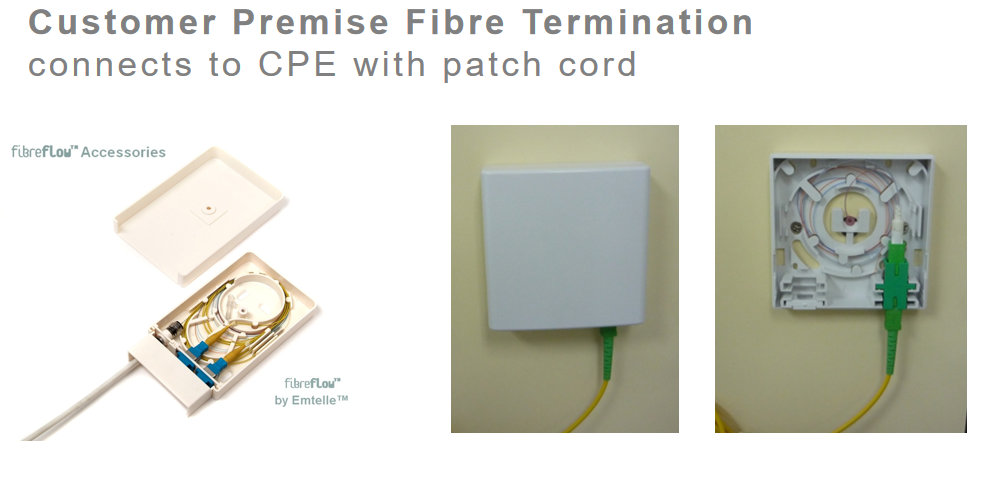

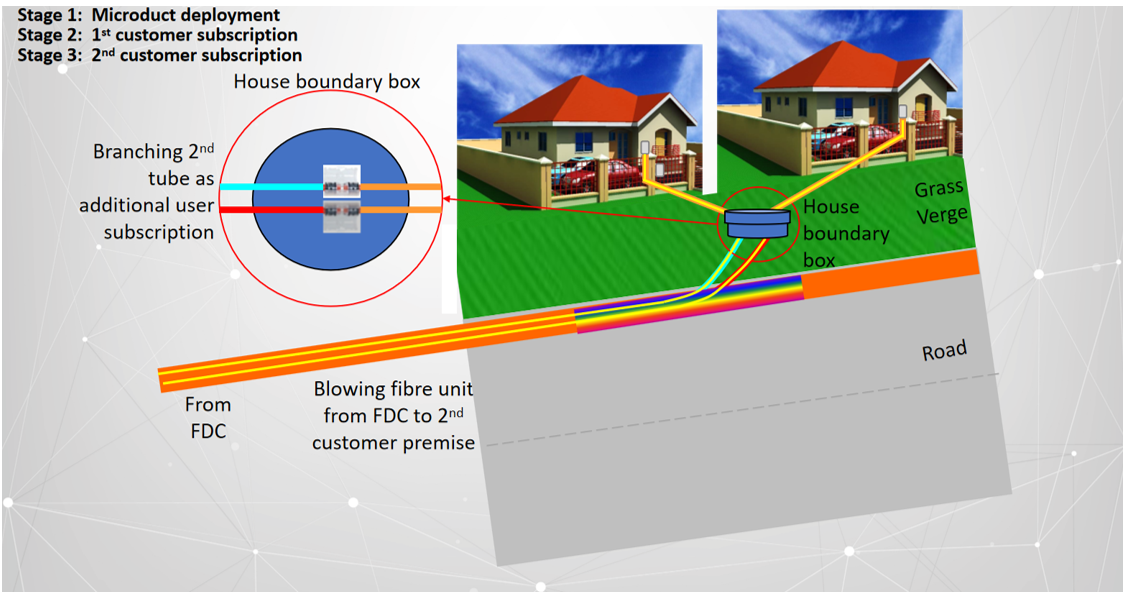

FTTH in Horizontal Development

Advantages

 Point to point, no splicing

 Lower duct cost&initial investment

 Easy installation

 Easy maintenance

 Flexible network,upgrade anytime

 Blown fiber& Tube bundle easy to transport, 6km fiber is 13kg only, saving freight

 The longest disance for blowing is more than 1km, usually take 20mins to finish blowing installation

 Few person, more efficiency

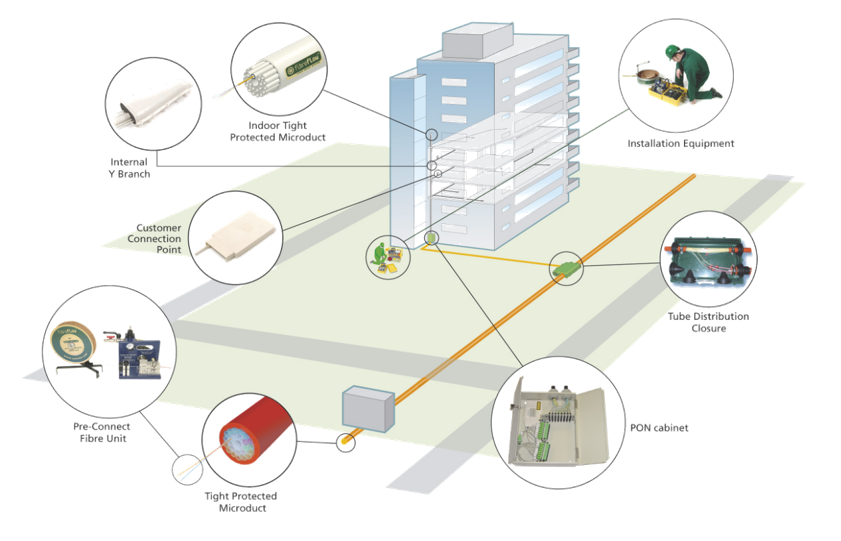

Fu Blowing in  FTTH MDU Application

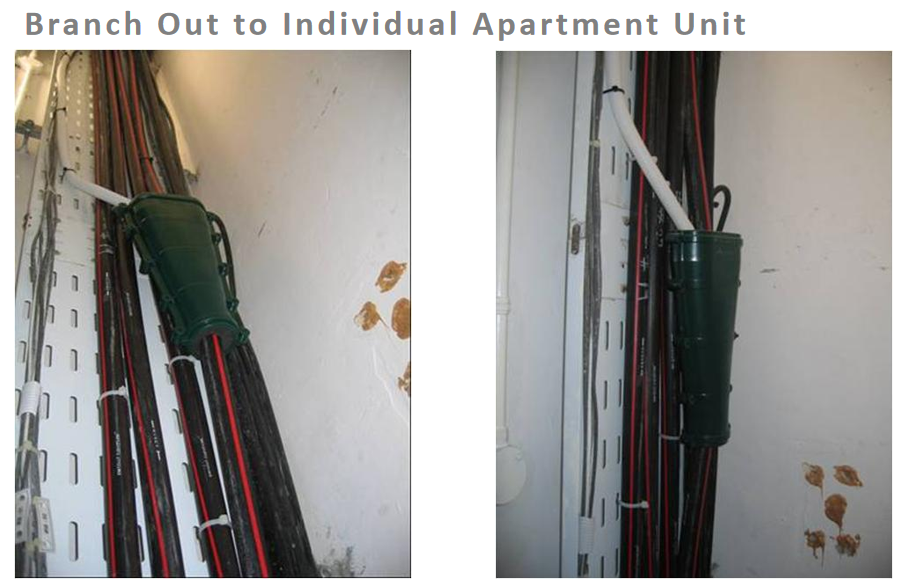

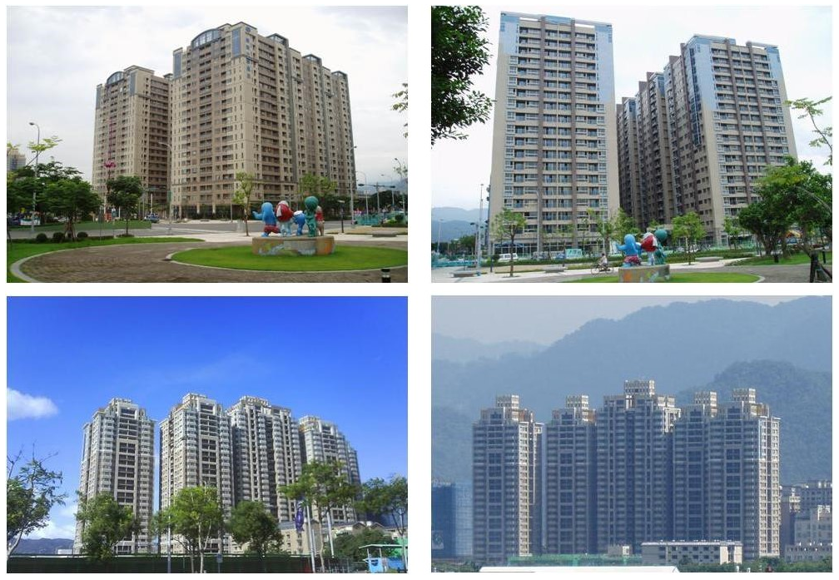

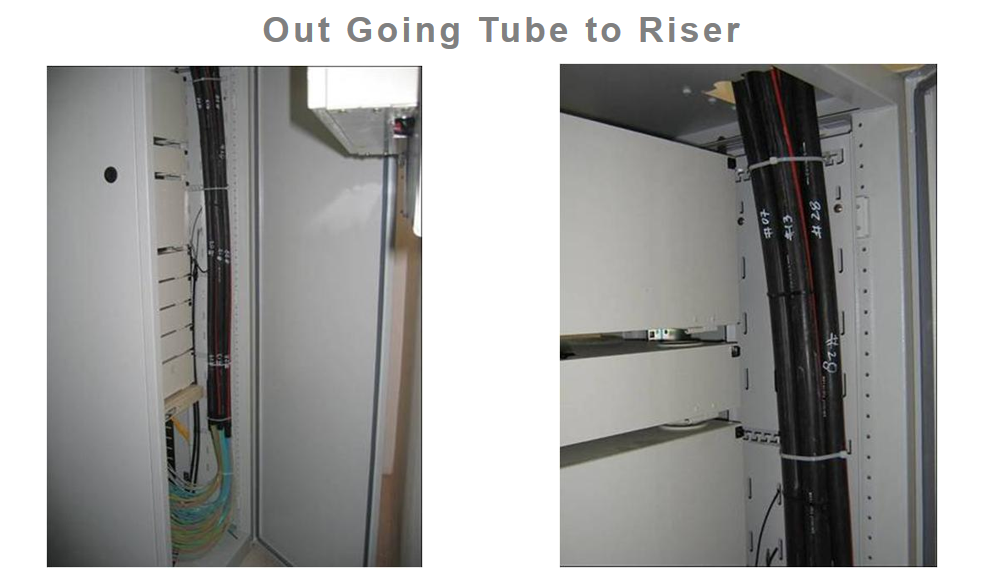

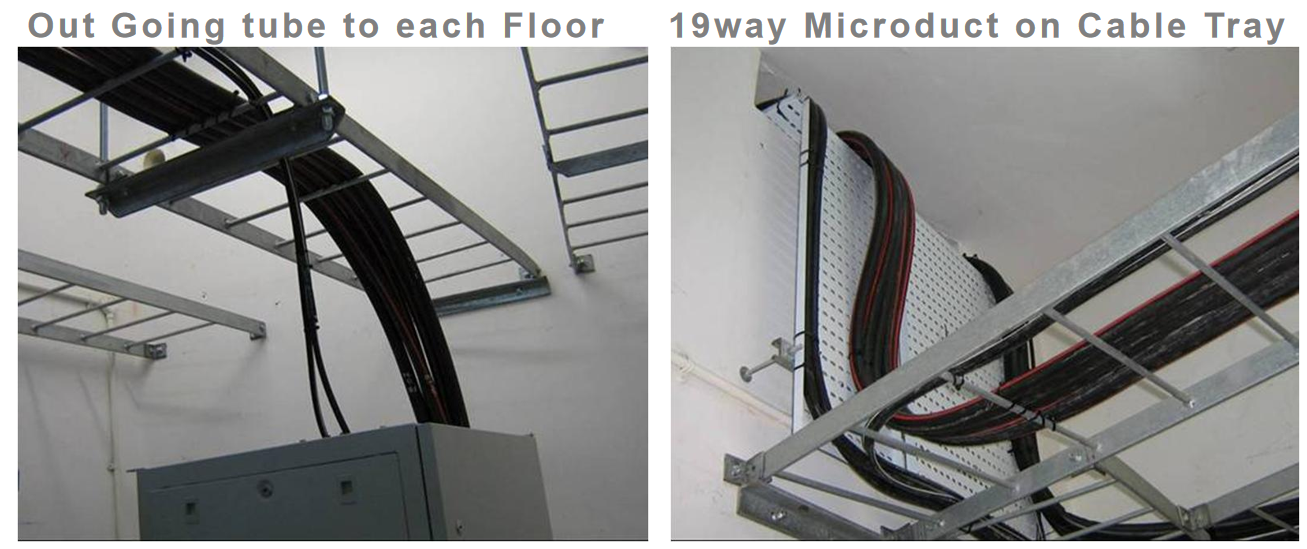

FTTH in High Rise MDU

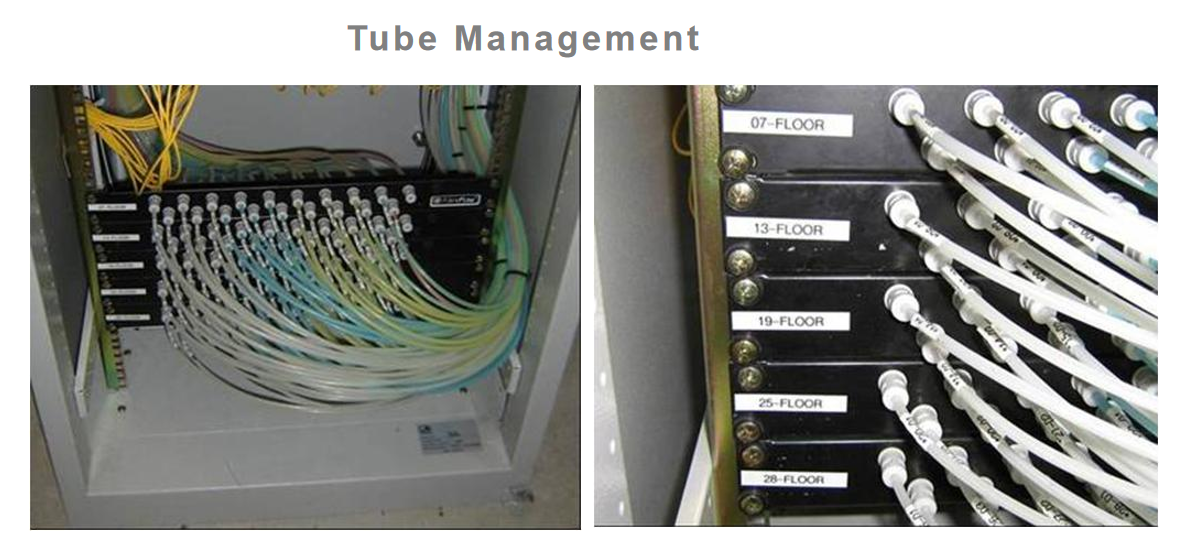

Multi Dwelling Unit (MDU)

Commercial Building Deployment  in Singapore

    More than 2000 Commercial Buildings has been wired up with fibreflow

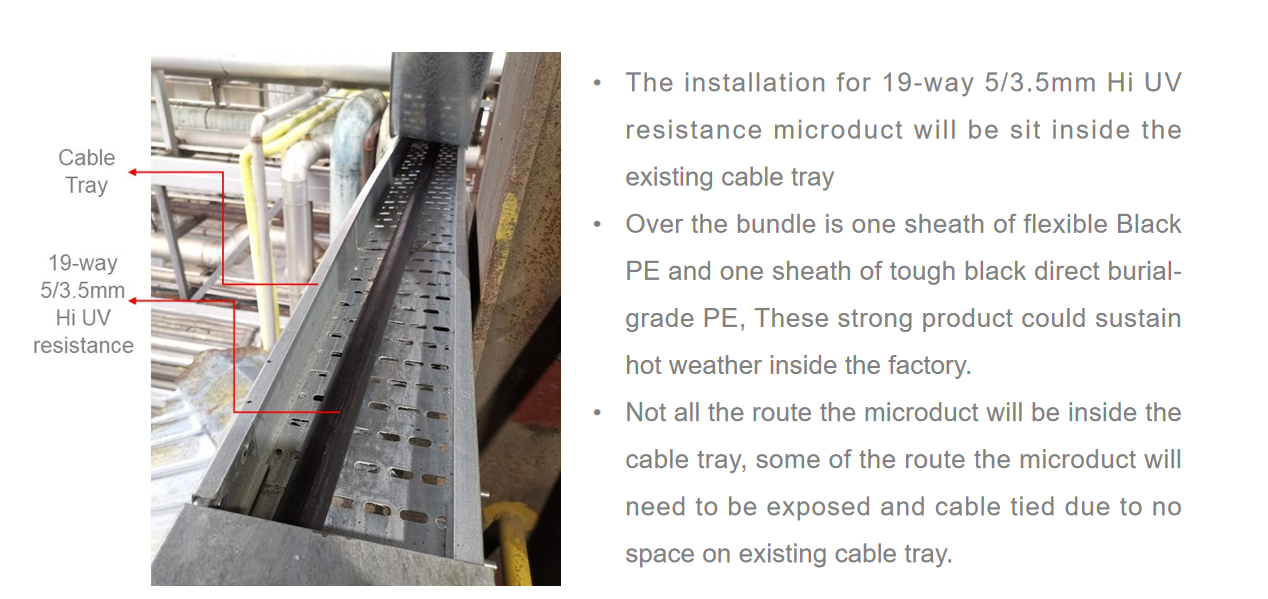

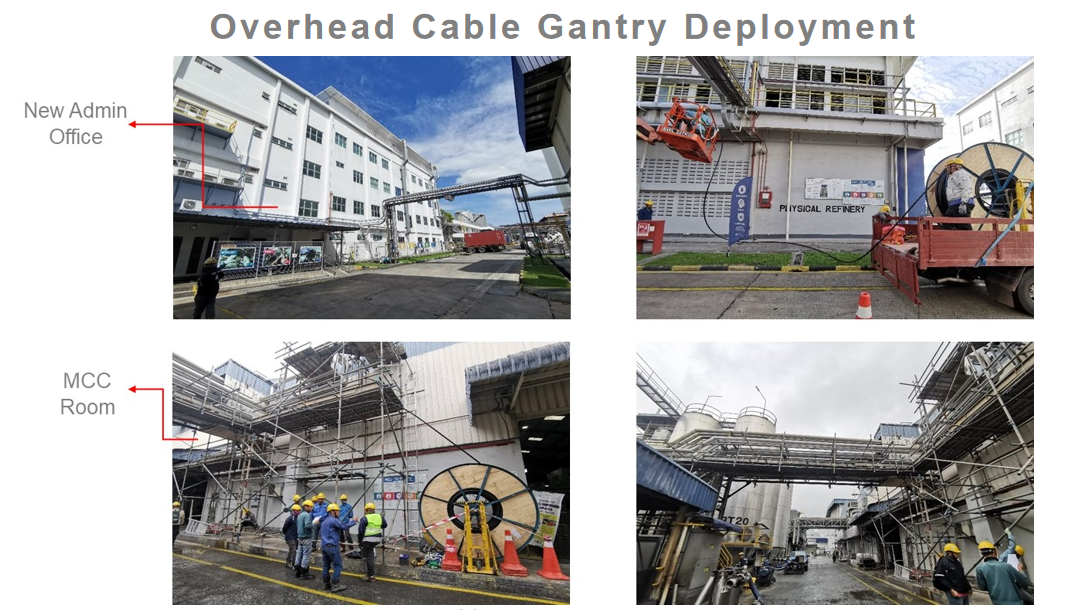

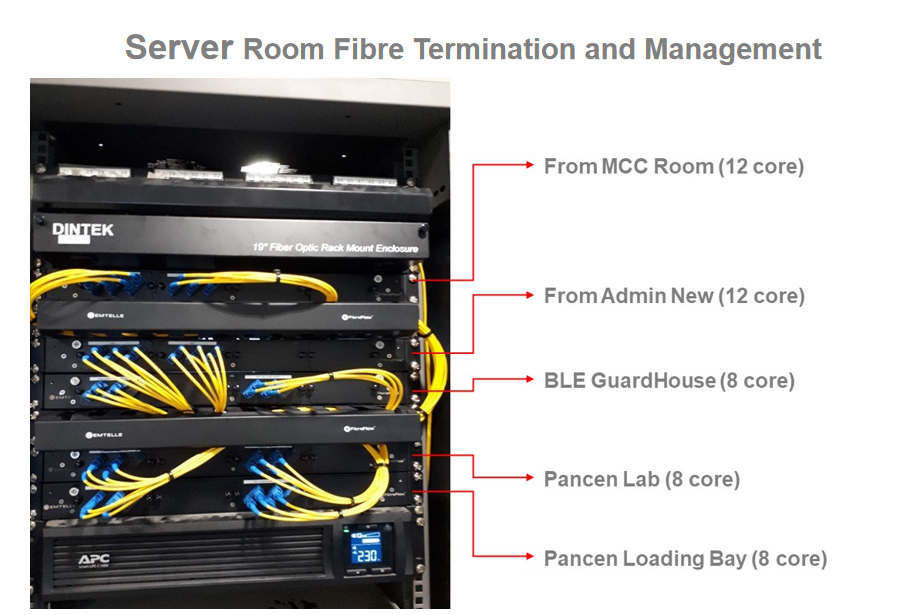

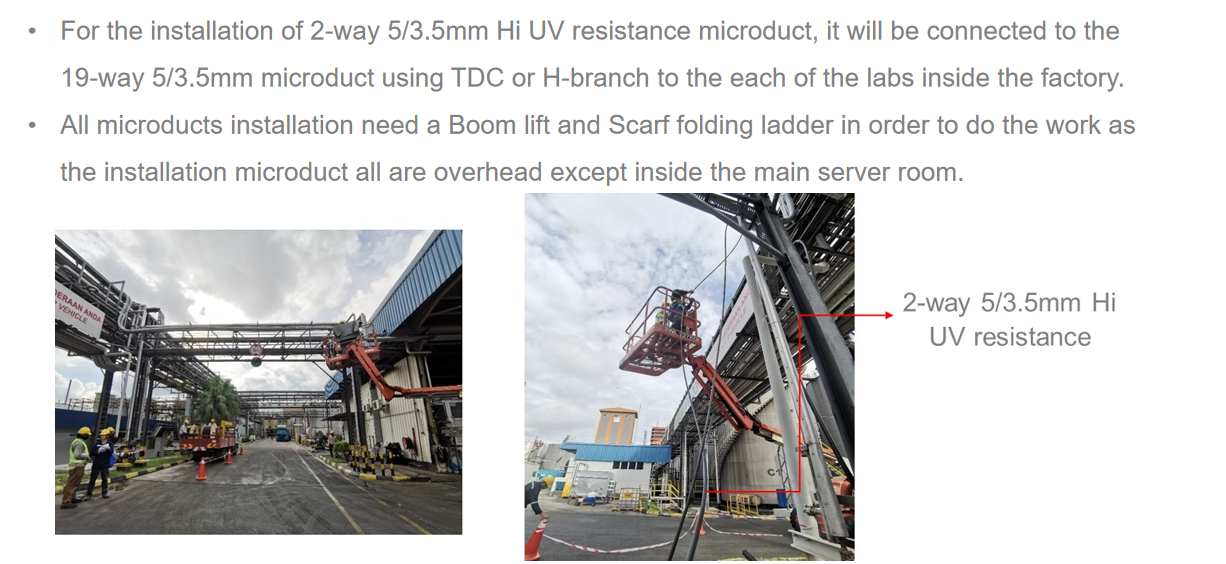

Industrial Park Deployment

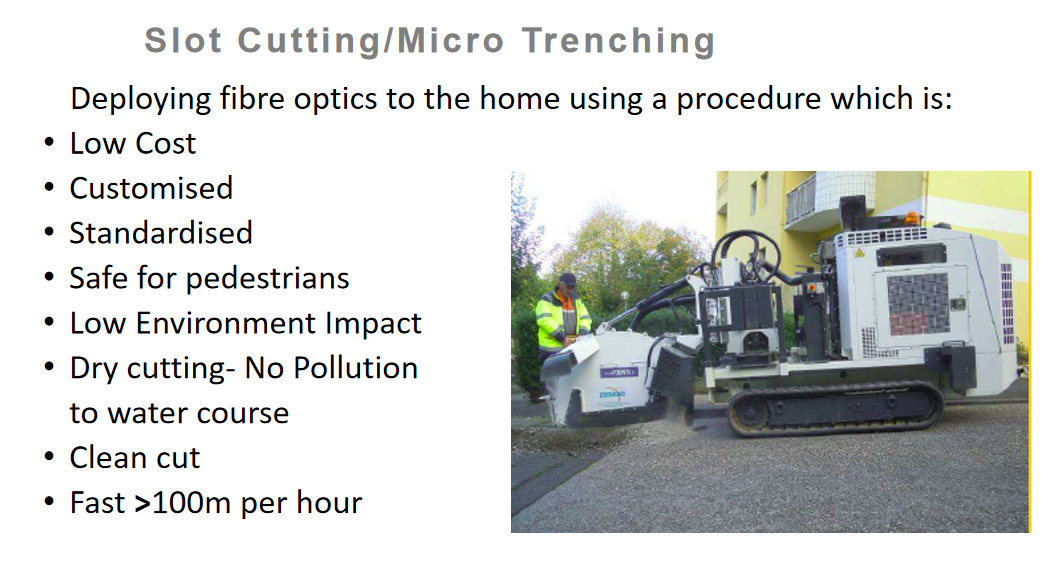

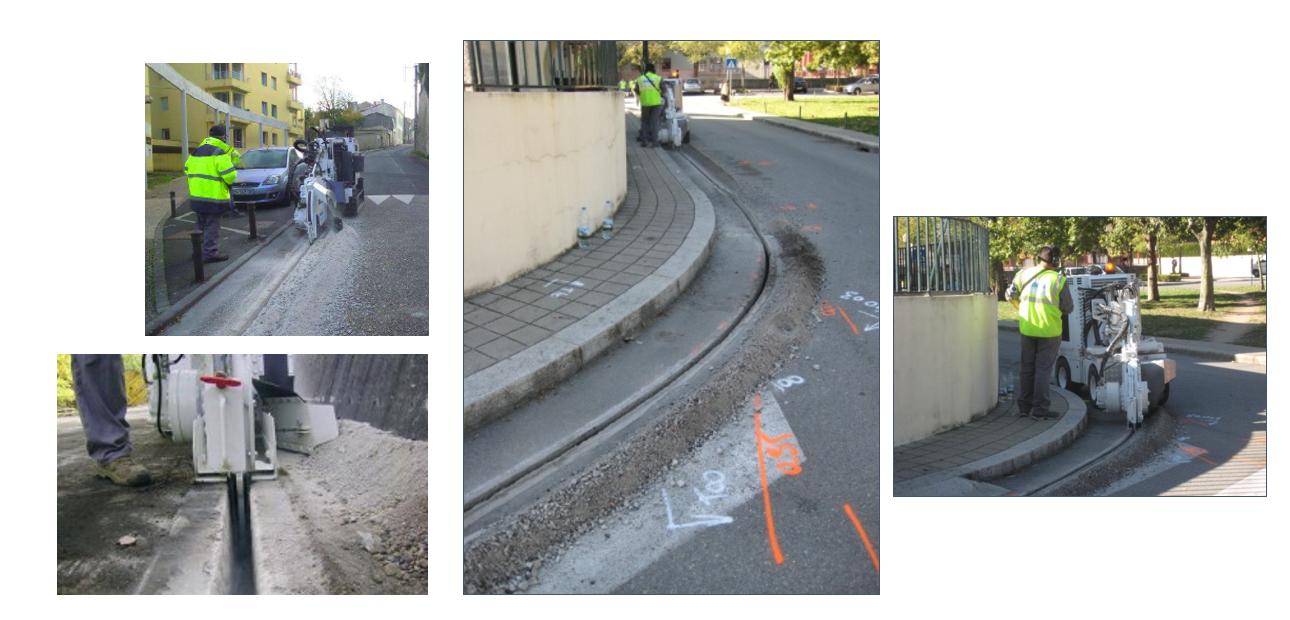

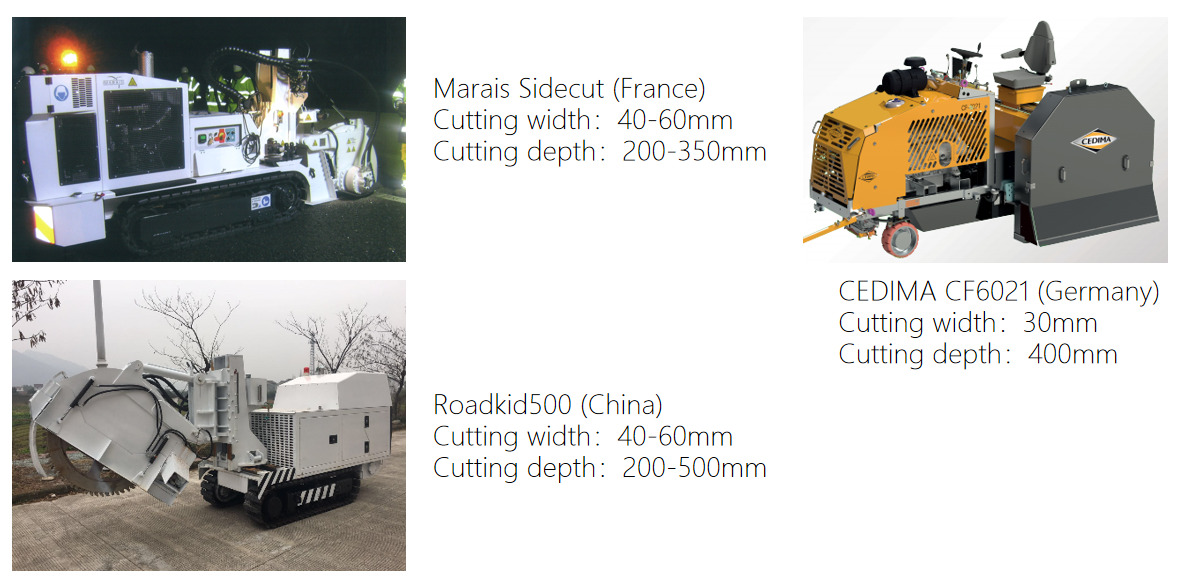

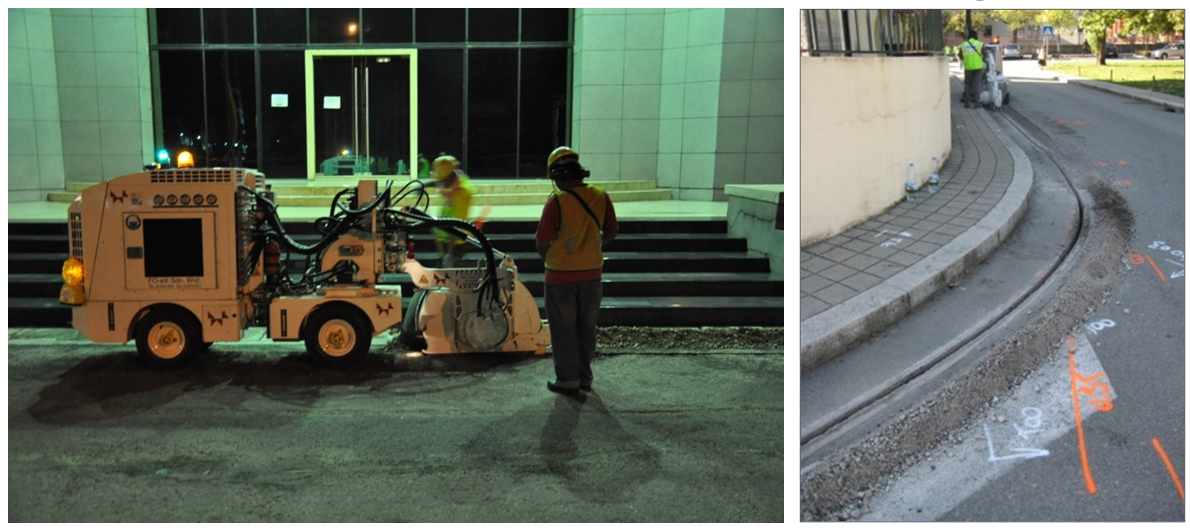

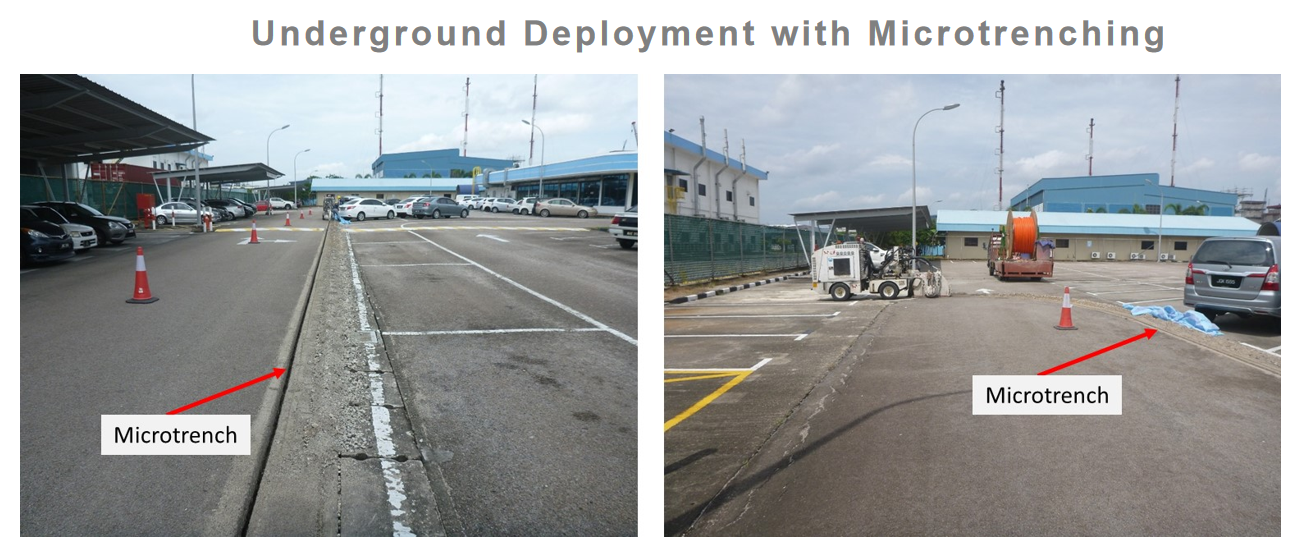

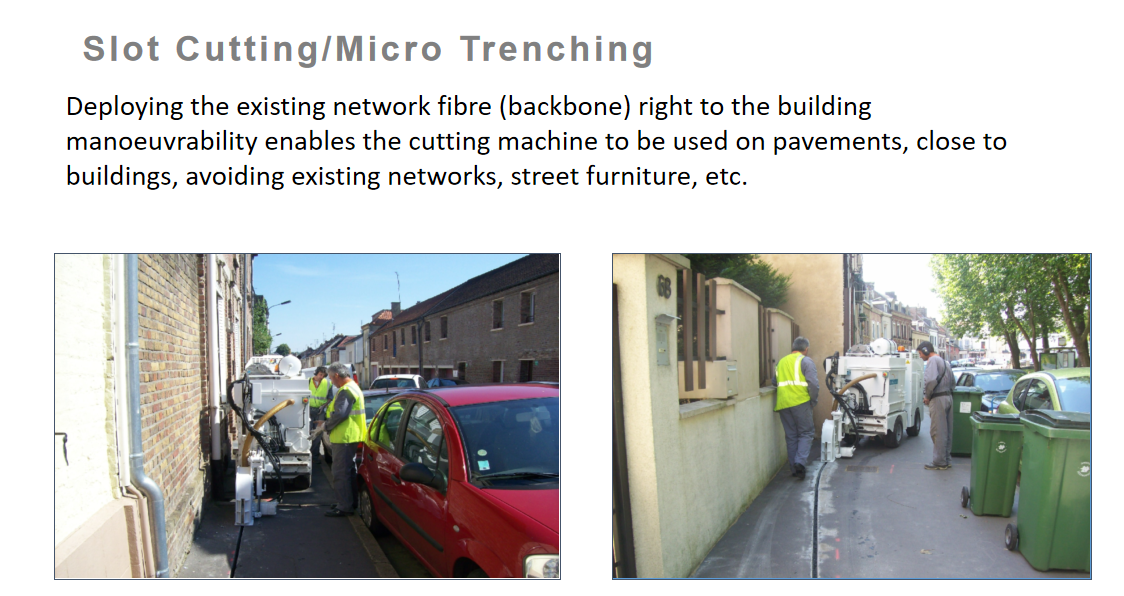

         Total Solution 3  Slot Cutting/Micro Trenching

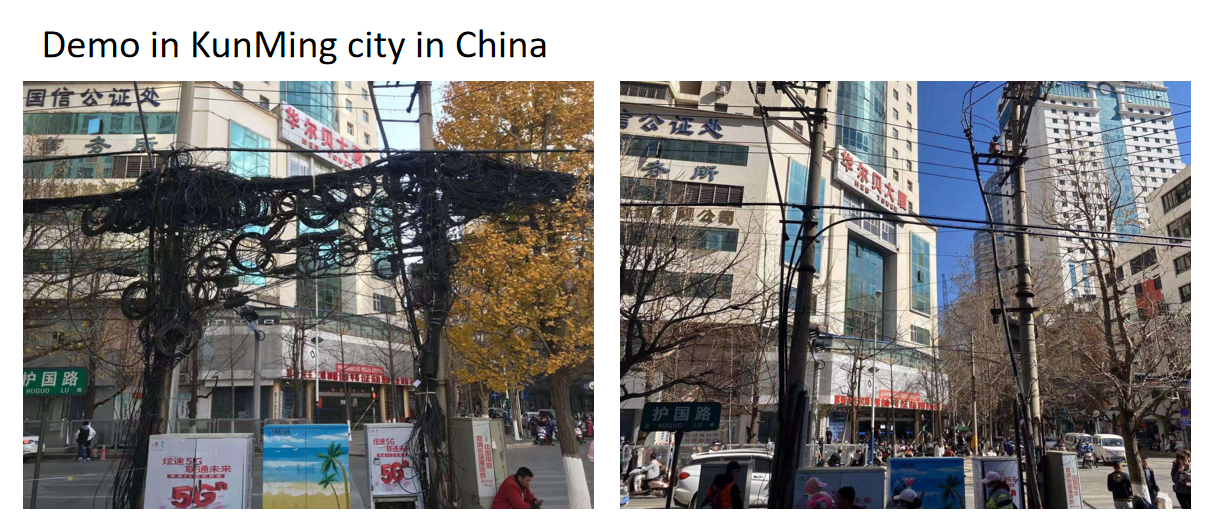

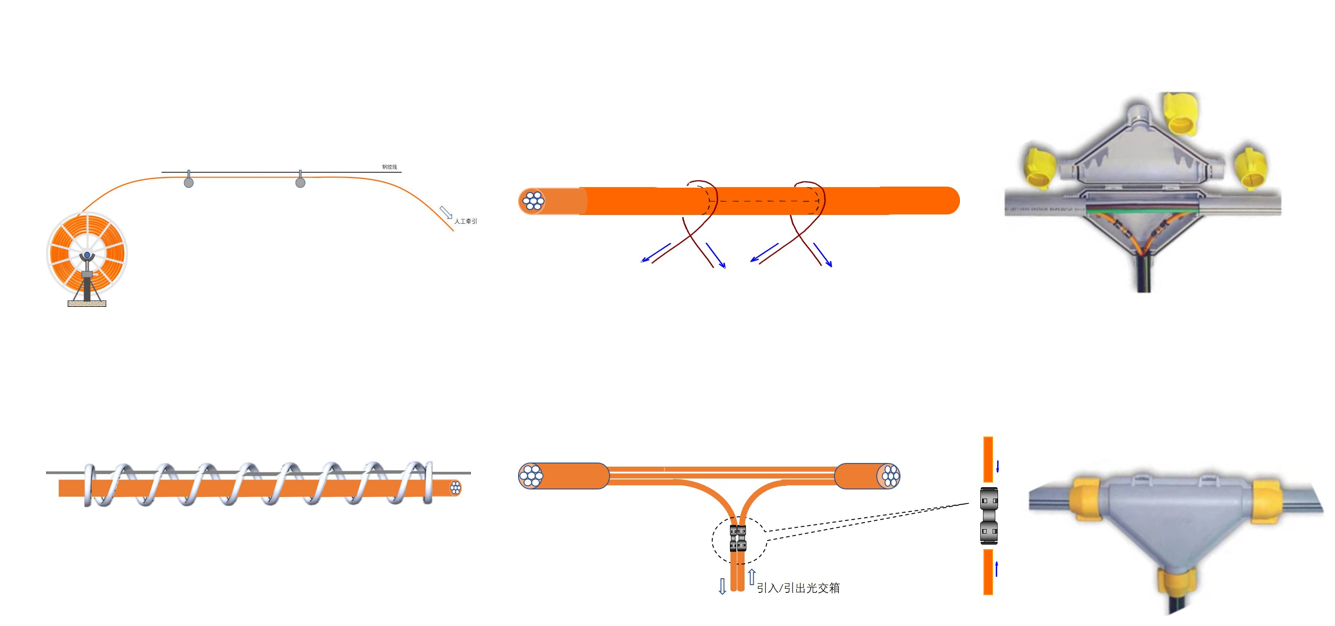

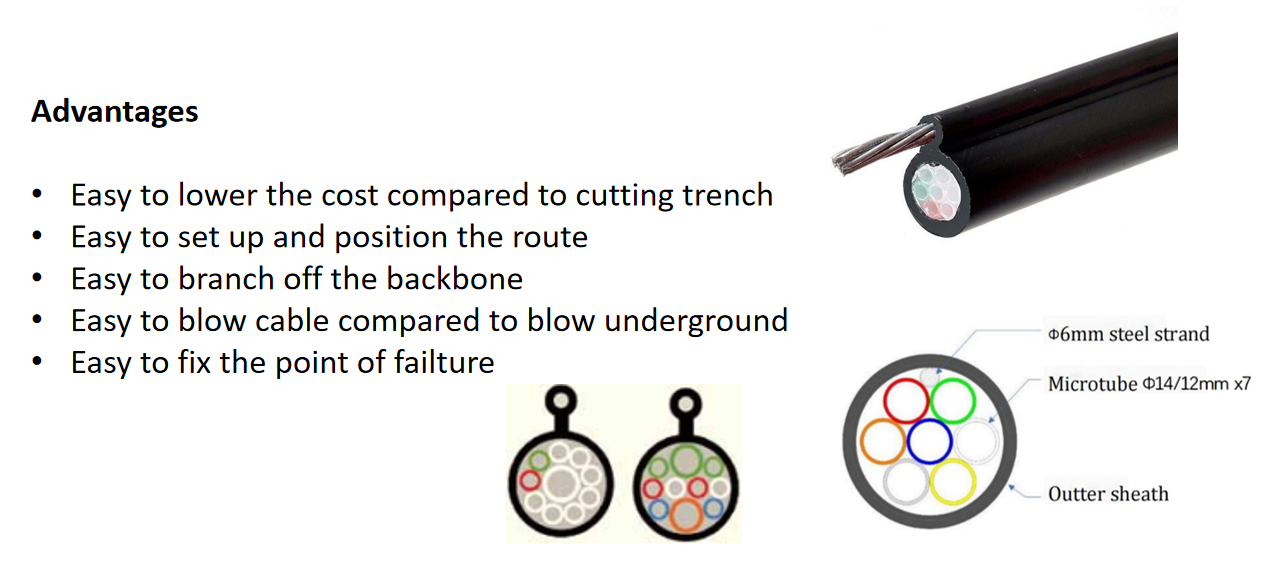

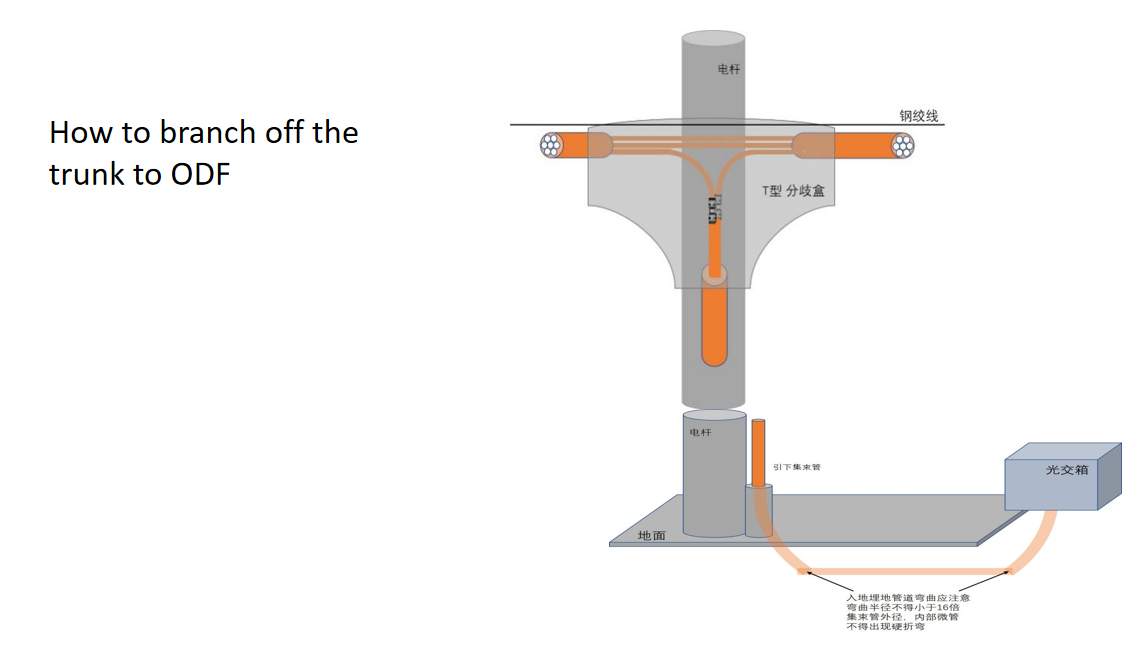

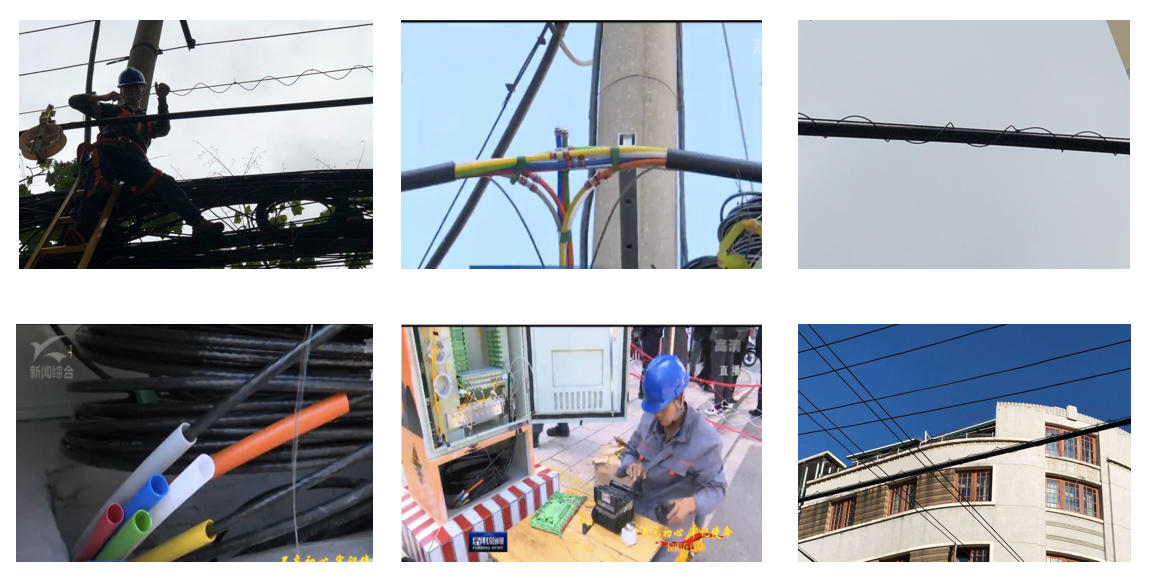

                   Total Solution 4  Aerial Tube bundle Installation and blowing
